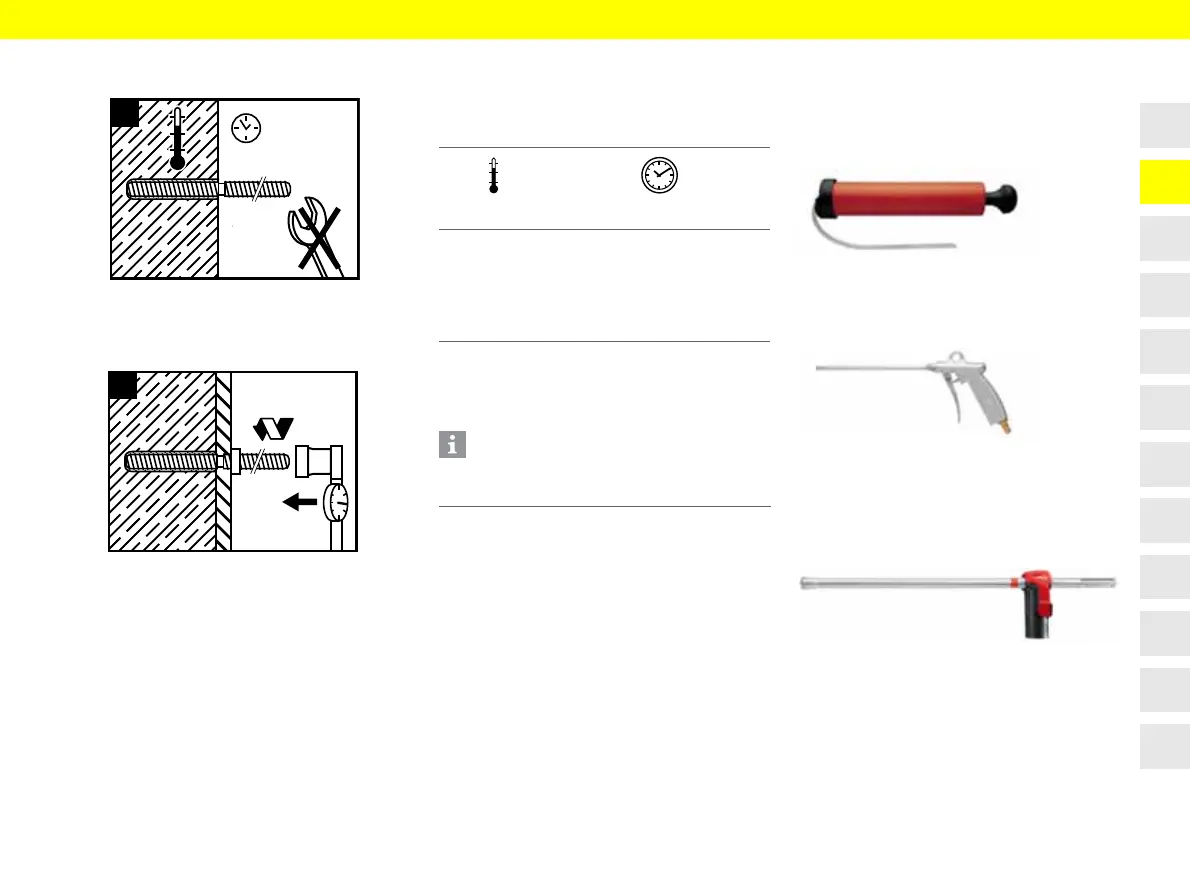

7. Do not subject the anchor rod to load during
the curing time t
cure
.
8. When the curing time t
cure
is reached, you
can install the shaft: screw on with a torque
of max. 40 Nm.
Curing time t
rel
and t
cure
The curing times only apply to a dry anchorage
substrate. If the anchorage substrate is damp,
the curing times must be doubled.
1)
Temperature in anchorage substrate
2)
Curing time: The screwed in embedment tools are removed
3)
Curing time: Full load
Cleaning alternatives
Manual cleaning (MC)
Hilti manual blow-out pump for blowing out
drill holes.
Compressed air cleaning (CAC)
Blow-out nozzle with a minimum diameter
of 3.5 mm.
Automatic cleaning (AC)
Cleaning is carried out by the Hilti TE-CD and TE-YD
drilling system with on-board vacuum system while
drilling is in progress. This drilling system removes
drilling dust during the drilling process.
17
t
cure
18
T
inst.
Te m p
1)
t
rel
2)
t
cure
3)
-5 ... -1 °C 60 min 5 h
0 ... 9 °C 30 min 1 h
10 ...19 °C 20 min 30 min
20 ... 40 °C 8 min 20 min
Information
The safety data sheet for the Hilti HVU anchor
capsule can be viewed online at www.hilti.com.
