Porta-Nails PortaMatic Evolution 418A - Exploded Parts; Parts List

7
P-080Hammer
P-084Whiterubbercap
P-154Handlegrip
Q-001Headcap
Q-006Headbody
Q-006Ao-ring
Q-016Mainbody
Q-016Ao-ring
Q-018Maincylinder
Q-018ABand-valve
Q-022Piston
Q-022AWearring
Q-022Bo-ring
Q-023Drivingblade
Q-025ABumper
Q-025BSealbushing
Q-029Foot
Q-032Gate
Q-033Adjustablebase
Q-034Restingblock
Q-034ABracket
Q-035A&BBrackets
Q-036Camaxle
Q-036A&BCam
Q-042Actuator
Q-042Au-cupseal
Q-043Valve
Q-044Actuatorcap
Q-046Clipassembly
Q-048Feederchannel
Q-061Safetyanchor
Q-061BConnectingstem
Q-061DSpring
Q-062Safetycontact
Q-062ALockingrod

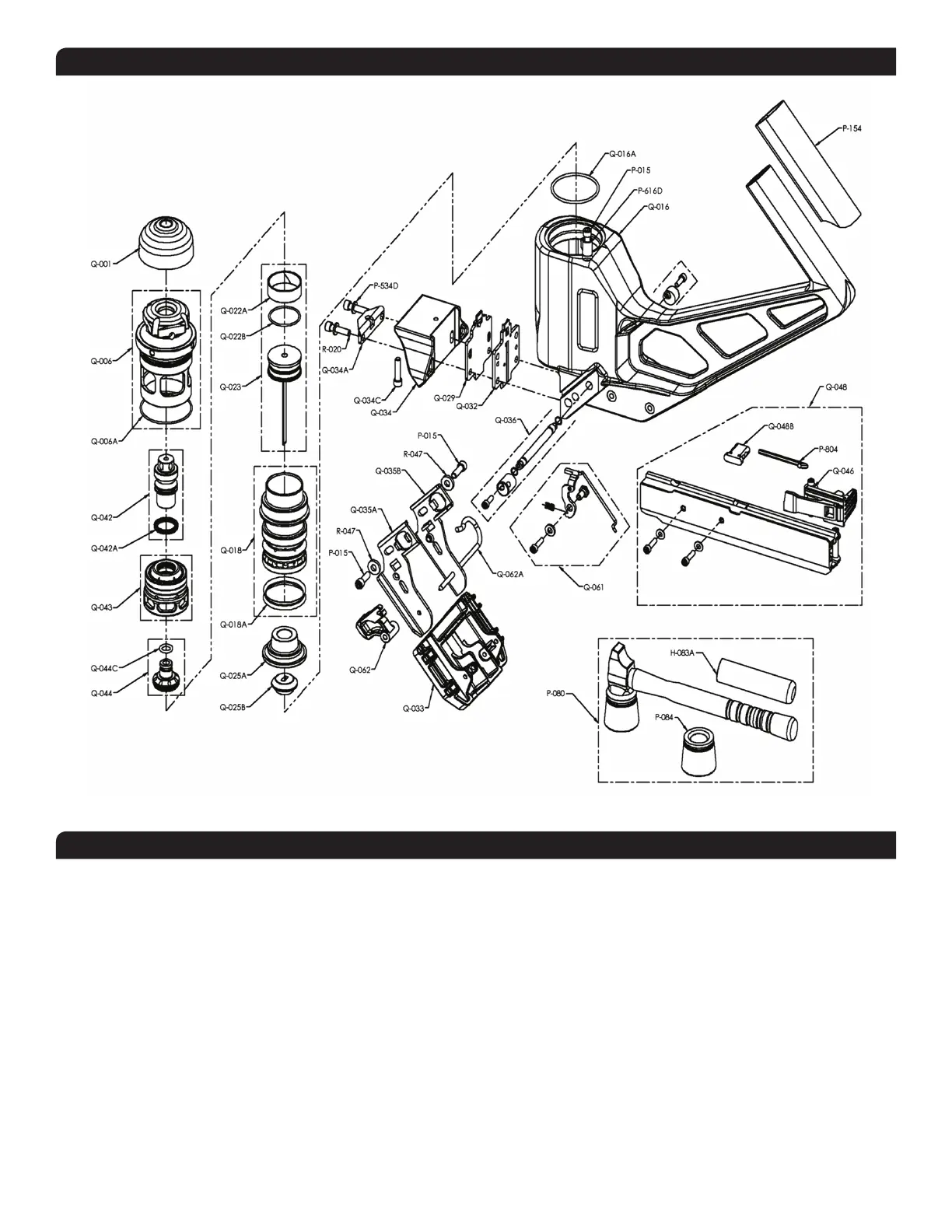

EXPLODED PARTS
PARTS LIST
