FOREWORD
The Model 513 Lock Mortiser permits builders and contractors to quickly cut
true, accurate mortises for door-box locks.
The Model 517 Lock-Face Template allows quick and economical routing for
lock faces on doors after the mortise has been completed.
FUNCTIONAL DESCRIPTION
ASSEMBLY
* Four height rod sections
* Two cutting bits
* Open end wrench
* Two flat washers
* Two cap screws
* Allen Wrench
* Motor unit
* Mortiser frame
CARTON CONTENTS
STANDARD EQUIPMENT

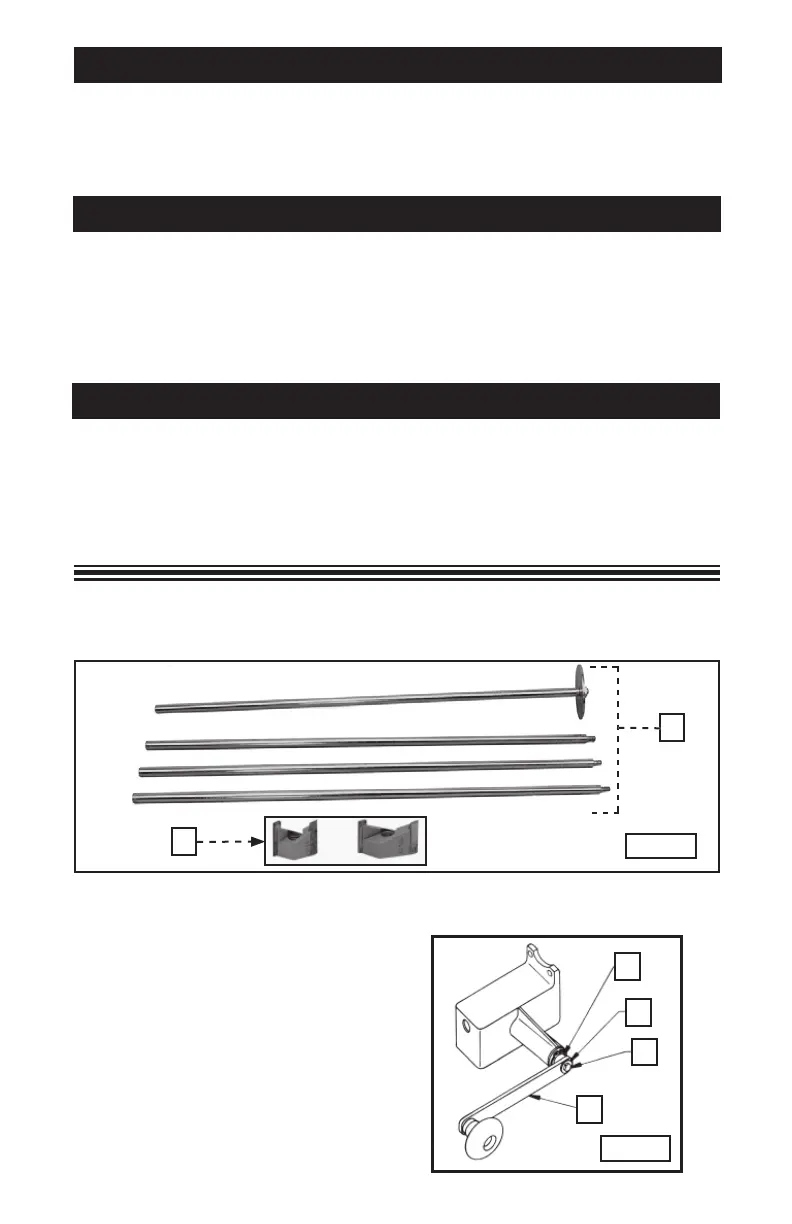

Four sections of the height rod (A), and two bits (B) are furnished (Fig. 1).
Hex wrench (supplied)
15 to 30 minutes
ASSEMBLY OF BASE UNIT
The unit is shipped with the crank
handle disassembled.
Remove the bolt and washer (B and
C) Fig. 2. Place the crank handle (D)
on the crank shaft (A) with the wooden
knob facing out and the “D”-shaped
hole in handle aligned with the flat on
the shaft. Place the bolt (C) through the
washer (B) and thread it into the shaft
(A). Tighten securely.
A
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIME ESTIMATE
Fig. 1
Fig. 2
B
A
B
C
D
