8- ENG
A16596
NOTE: Left and right describes the location of a part with the operator
facing the outlet panel.
UNPACKING
1. Open carton from top.
2. Cut carton along dotted lines.
3. Remove all carton inserts.
4. See portability Kit instructions to assemble the portability kit.
Read this manual. Do not at tempt to operate equipment
until you have read this Manual for Safety, Op er a tion, and
Maintenance In struc tions.
ASSEMBLE PORTABLILITY KIT
Tools needed:
1 - 1/2" socket
1 - 1/2" open end wrench
1 - 3/8" socket
1 - 3/8" open end wrench
1 - 7/8" socket
Kit Contains:
2 - Handles (1)
2 - Wheels (2)
1 - Foot Bracket (3)
1 - Rubber Bumper (4)
Parts bag contains:
2 - Handle Grips (5)
2 - Handle Brackets (6)
6 - Screws, 5/16-18 x 2.00 (7)
7 - Flange Nuts (8)
2 - Snap Buttons (9)
1 - Screw 5/16-18 x .75 (10)
2 - Bolt, 3/8-16 x 2.25 (11)
2 - Locknut, 3/8-16 (12)
1 - Screw 1/4-20 X .75 (13)
1 - Kep Nuts, 1/4-20 (14)
11
2
6
12
14
13
4
3
8
10
5
1
9
7
8

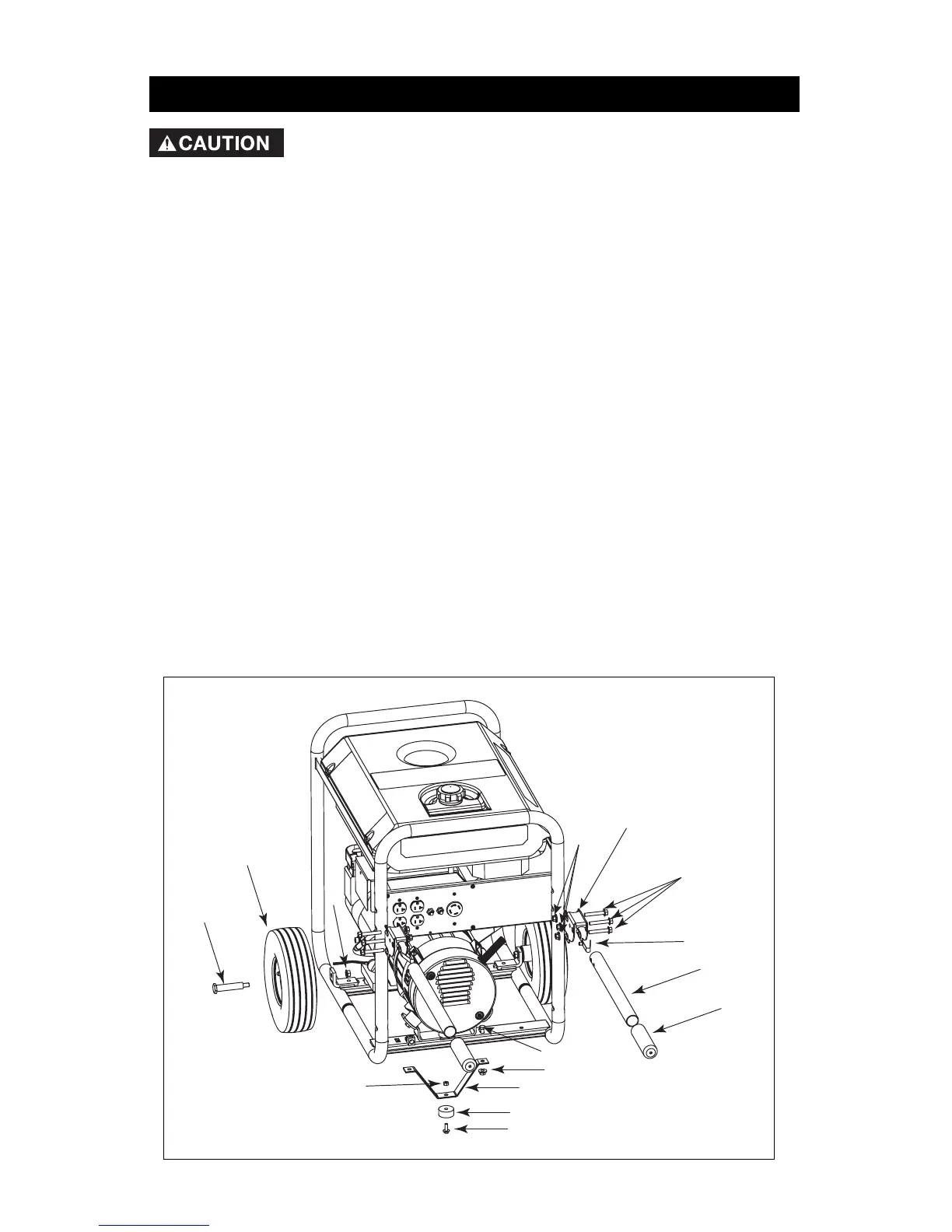

NOTE: The key numbers
in this figure are referenced
throughout the instructions.
ASSEMBLY
