OPERATION
KNOW YOUR AIR COMPRESSOR
READTHISOWNER’SMANUALANDSAFETYRULESBEFOREOPERATINGYOUR
UNIT. Compare the illustrations with your unit to familiarize yourself with the location
of various controls and adjustments. Save this manual for future reference.
VOLTAGE AND CIRCUIT PROTECTION
Refer to the specification chart for the voltage and minimum branch circuit require-
ments.
Certain air compressors can be operated on a 15 amp circuit
1. Voltage supply to circuit must comply with the National Electrical Code.
2. Circuit is not used to supply any other electrical needs.
3. Extension cords comply with specifications.
4. Circuit is equipped with a 15 amp circuit breaker or 15 amp time delay fuse.
NOTE: If compressor is connected to a circuit protected by fuses, use only
time delay fuses. Time delay fuses should be marked "D" in Canada and "T"
in the US.
If any of the above conditions cannot be met, or if operation of the compressor
repeatedly causes interruption of the power, it may be necessary to operate it
from a 20 amp circuit. It is not necessary to change the cord set.

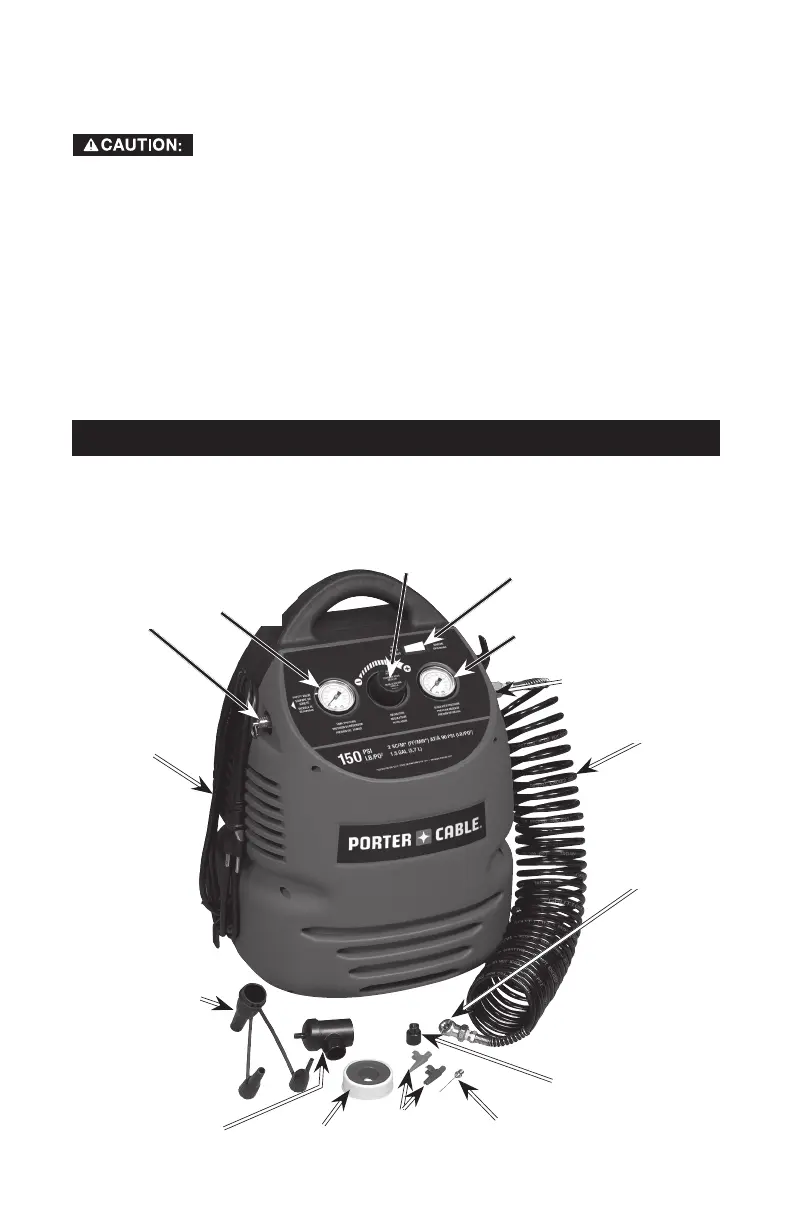

Air Outlet
Air Hose
Regulator
Outlet
Pressure Gauge
Female Air
Chuck
Switch
Power Cord
Hose
Adapter
Tapered
Nozzles
High Flow
Adapter Body
Nozzles to be used
with the High Flow
adapter body
Tank
Pressure
Gauge
Thread Seal
Tape
To Next Page
