Porter-Cable PCB270TS - Page 36

– 36 –
10 IN. (254 MM) STATIONARY TABLE SAW

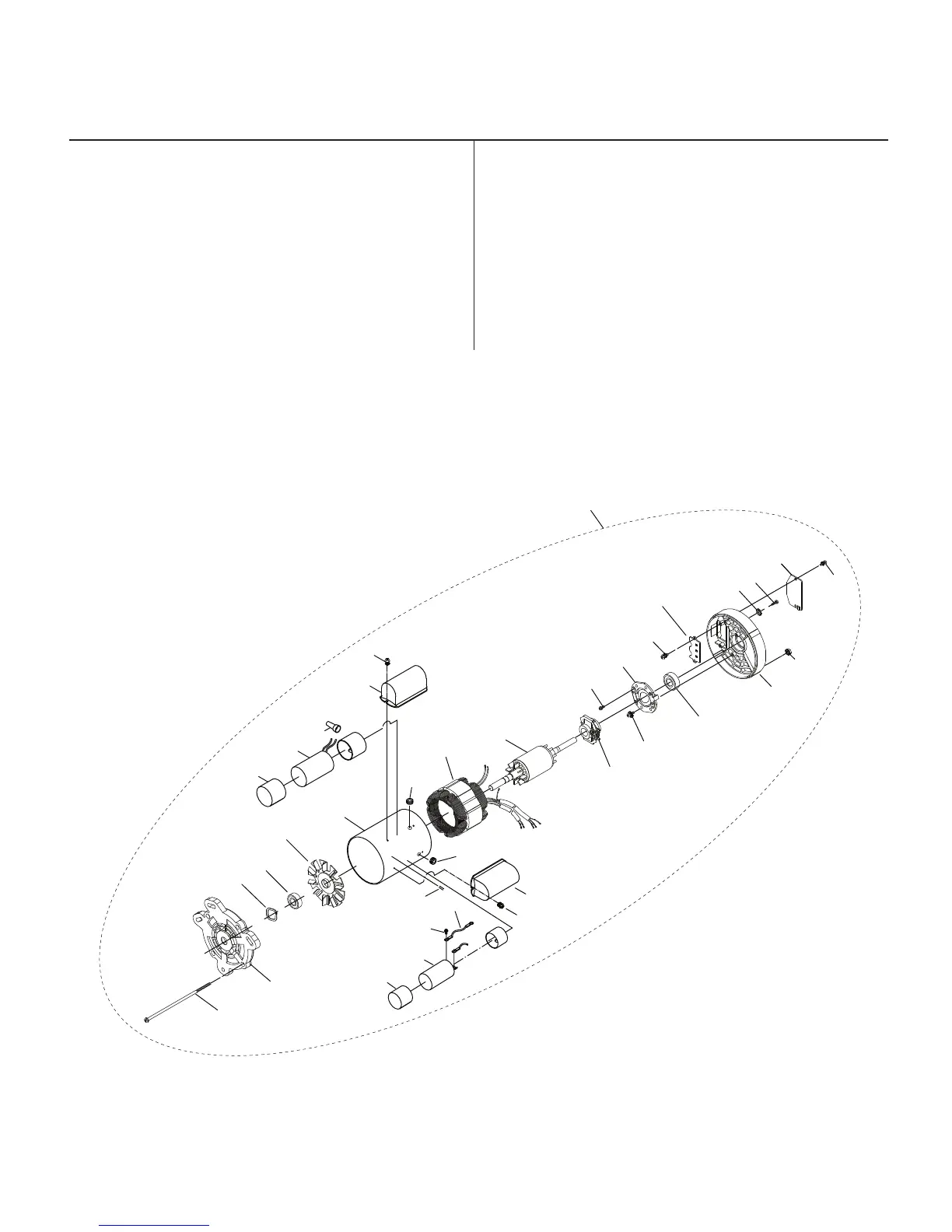

PARTS LIST & SCHEMATIC FOR MOTOR
2
2
2
4
2
2
4
2
2
2
2
2
2WWF
2WWJ
144T
153P
Y4C1
0Q2T
2E7A
0LZC
0KF2
1451
153N
Y48V
Y490
0LZ0
1314
0LYY
0HVW
25SH
25N5
0JAF
2PWE
0KRP
Y49V
0Q2L
2WWD
25SH
0HVX
0JBA
0Q1G
153T
Y41A
Y490
Y490
2WF8
0KSR
0KSR
I.D. Description Size Qty I.D. Description Size Qty
1314 CR. RE. PAN HD. SCREW 5/22x32UNC-1/4 2 153N CAPACITOR COVER 1
1451 LEAD WIRE ASS’Y 1 153P CAPACITOR TERMINAL COVER 2
0HVW BALL BEARING 6202ZZ 1 153T CAPACITOR TERMINAL COVER 2
0HVX BALL BEARING 6203ZZ 1 25N5 INSULATE PLATE 1
0JAF EXTERNAL TOOTH LOCK WASHER
φ5
1 25SH CR.RE. PAN HD. SCREW & WASHER 10#-24UNC-1/4 4
0JBA WAVE WASHER 1 2E7A ARMATURE ASS’Y 1
0KF2 CR.-RE. PAN HD. SCREW M3*0.5-6 2 2PWE MOTOR REAR COVER #06 1
0KRP
SERRATED TOOTHED HEXAGON FLANGE NUT
M5*0.8, T=5 4 2WF8 FRONT HOUSING 1
0KSR STRAIN RELIEF
φ9.65
2 2WWD MOTOR ASS’Y 1
0LYY CONTACT PLATE 63mm T=2mm
1 2WWF MOTOR HOUSING ASS’Y 1
0LZ0 CENTRIFUGAL STARTER 2P 1 2WWJ FIELD ASS’Y L=95 115V/230V 60Hz 1
0LZC CAPACITOR 1 Y41A SPRING PIN M5*8 SK5+SK7 1
0Q1G FAN 1 Y48V CR. RE. PAN HD. SCREW M5*0.8-230 4
0Q2L CONNECTOR BOX COVER #06 1 Y490 CR. RE. PAN HD. & WASHER SCREW 3/16×24UNC×3/8 6
0Q2T CAPACITOR COVER #06 1 Y49V CR. RE. PAN HD. SCREW 3/16x24UNCx 3/8 1
144T CAPACITOR 1 Y4C1 TERMINAL 2
