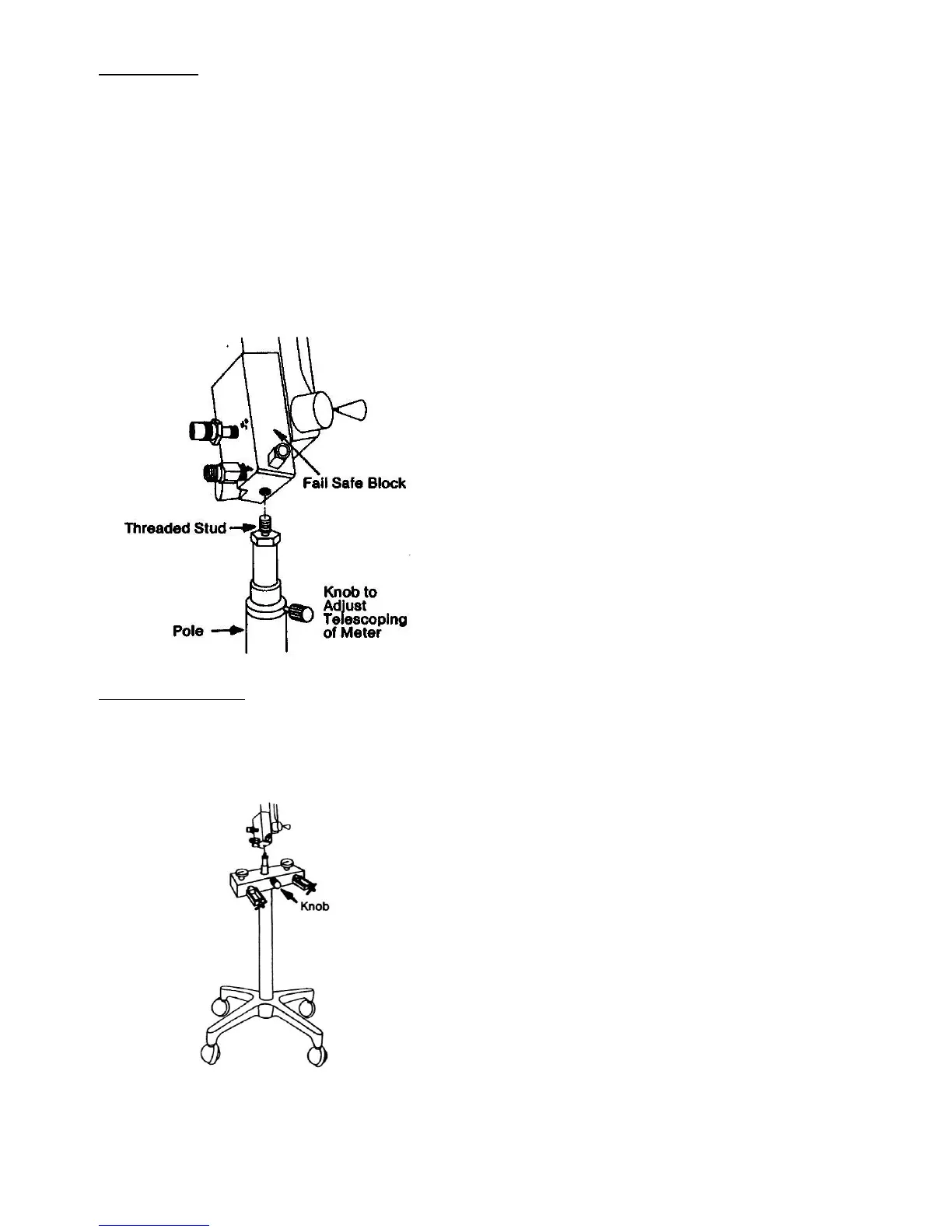

Mobile Stand
1. Loosen thumb-screw knob.
2. Slide shaft up.
3. Insert flowmeter hole in bottom of black
failsafe block onto top of mobile stand
pole. Figure E
4. While holding the flowmeter still, screw
shaft into bottom of the flowmeter.
5. To telescope meter, loosen thumb-
screw knob on side of mobile stand,
position flowmeter then retighten knob.
Figure E
Mobile “E” Stand – Figure F
Refer to installation and instructions FM-916
for mounting flowmeter to Mobile “E” Tank
Stand.
Figure F
MXR FLUSHMOUNT FLOWMETER
Flowmeter Models 2065W, 3065W, 3065W15,
and 2070W have Universal connectors that are
easily switched in the field from back to bottom
or bottom to back position to suit the installation.
If the connectors are switched, the flowmeter
should be completely function tested after
installation to the user instructions contained in
this manual.
CAUTION: The position of the connectors may
be switched by an authorized Porter
representative only. Unauthorized repair,
alteration or misuse of this device is likely to
adversely affect the performance and will void
the warranty.
ORAL SURGERY MXR MODEL 2000-OS &
3000-OS
The oral surgery flowmeter can achieve 14-20
LPM N
2
O maximum flow. This model includes a
special P2407A oral surgery threaded bag tee
with adapter. Accessory includes a Directional
“Y” Valve that attaches to the threaded bag tee.
(Refer to FM-631 for Directional “Y” Valve
Instructions.)
FLOWMETER ACCESSORIES
Three Liter Bag
Install the 3 L Reservoir Bag by sliding the
opening over the outside of the bag tee
downspout. The bag moves in and out with
each inhalation and exhalation and becomes a
visual barometer for monitoring the patient’s
respiration rate. Refer to FM-809 for User
Instructions, Assembly, Installation and
Cleaning.
Positive Pressure / Demand Valve
The Porter flowmeter is equipped with a
Resuscitator Quick Connect, which allows for
the attachment of an oxygen demand valve.
The Demand Valve Resuscitator provides a fast,
simple and effective means to ventilate non-
breathing patients and provide 100% oxygen on
demand. The Resuscitator Flow rate is limited
up to 40 LPM in line with the 1992 American
Heart Association “Recommendations and
Guidelines for Resuscitation.” Refer to the User
Instructions supplied with this product
For complete details.
