FLOWMETER MOUNTING OPTIONS
The Dental Flowmeter may be mounted to a
telescoping wall mount using the existing
hanger on the back of the flowmeter, or to a
mobile stand using the threaded hole at the
bottom of the failsafe block. There are various
options for mounting the flowmeter within
cabinets. The location selected for mounting
of the slide assembly should provide easy
access to reach and unobstructed view of the
flowmeter when mounted on the slide
assembly. There should be adequate space at
the rear of the flowmeter for O
2
and N
2
O gas
delivery hoses. Contact your local dental
dealer for mounting options.

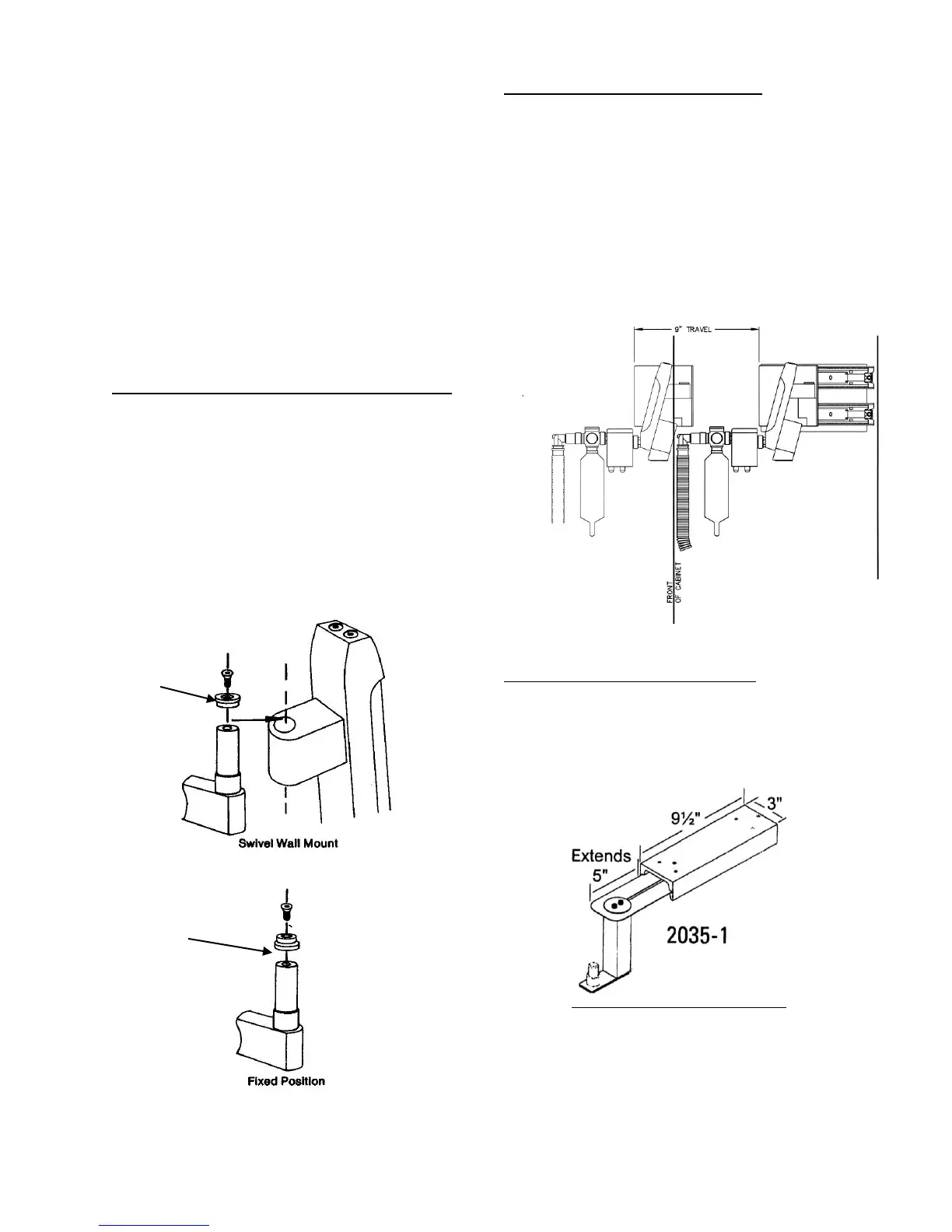

Solid Wall Mount – Telescoping Model 2020:
1. Remove cap from the mounting post
assembly.
2. Insert mounting post through mounting
bracket on back of flowmeter.
3. Replace cap on top of mounting post.
a. Position small diameter cap down to
allow for swivel mounting (Figure A).
b. Position small diameter cap up to fix
direction of flowmeter (Figure B).
4. Tighten screw securely.
Cabinet Mount Slide Model 2036: Figure C
1. Loosen knob on side of mounting block.
2. Remove mounting post from block.
3. Insert post through mounting bracket on
back of flowmeter.
4. Replace post with flowmeter attached into
mounting block.
5. Tighten knob on side of mounting block.
Figure C
Slide Away Mount Model 2035-1: For ease of
accomplishing the dual sliding motion, hold
the meter toward the top half and lift slightly
while sliding the arm in and out. This will
reduce the load on the slide and promote a
smoother action. Figure D
