Page 6

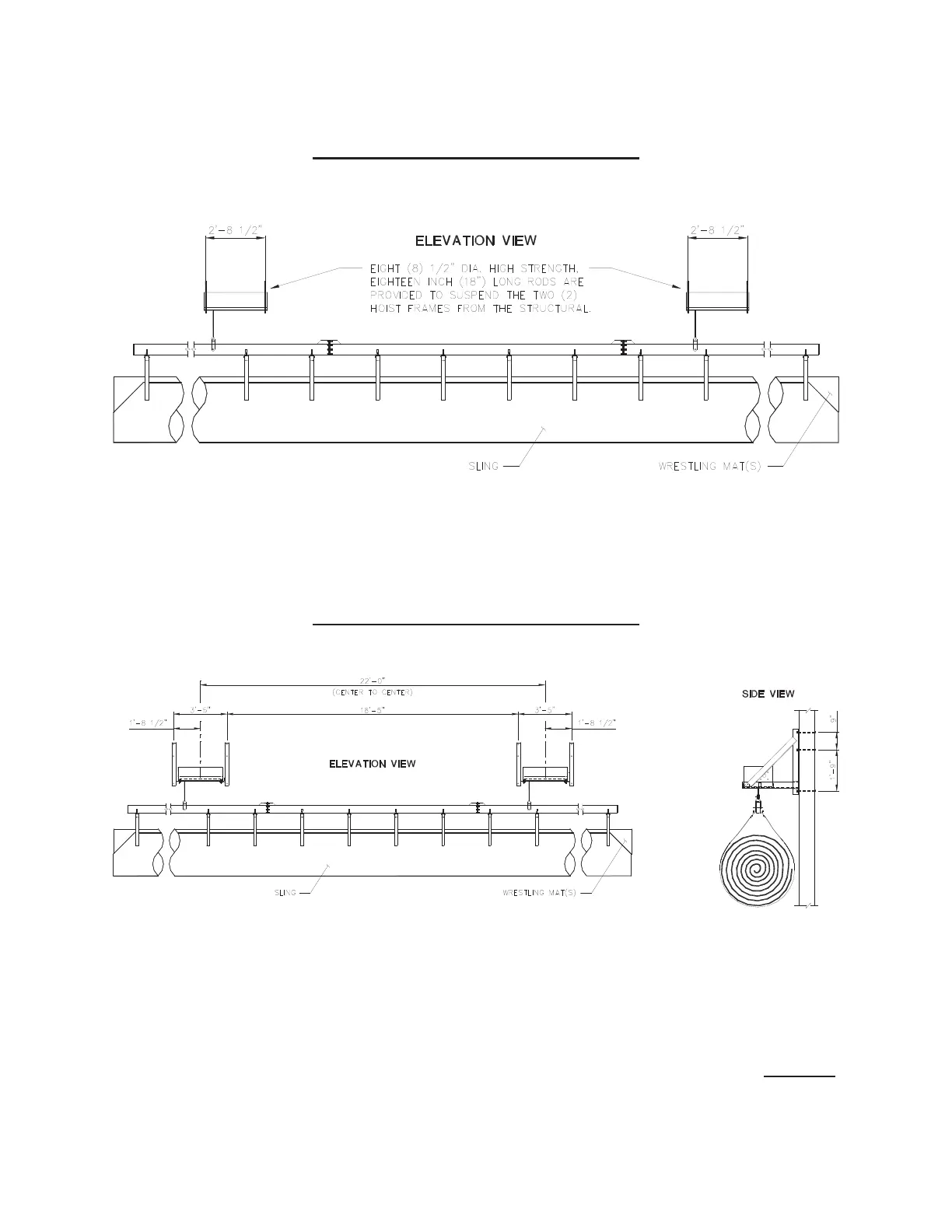

Steel Requirement Footprint
Model Nos. 91101-100 and 91102-200
Thru-Bolt Requirement
Model Nos. 91101-150 and 91102-250
2. ORIENTATION OF DRUMS
The drums must be in line along their longitudinal axis. The upper actuator arm, which
activates the upper limit switch, will not function unless the drum orientation is as
shown. Refer to Figure A for correct orientation. Figure B illustrates the incorrect
drum orientation.
