Porter Mat Mover - Anchor Locations for Overhead Supported Units

Page 7

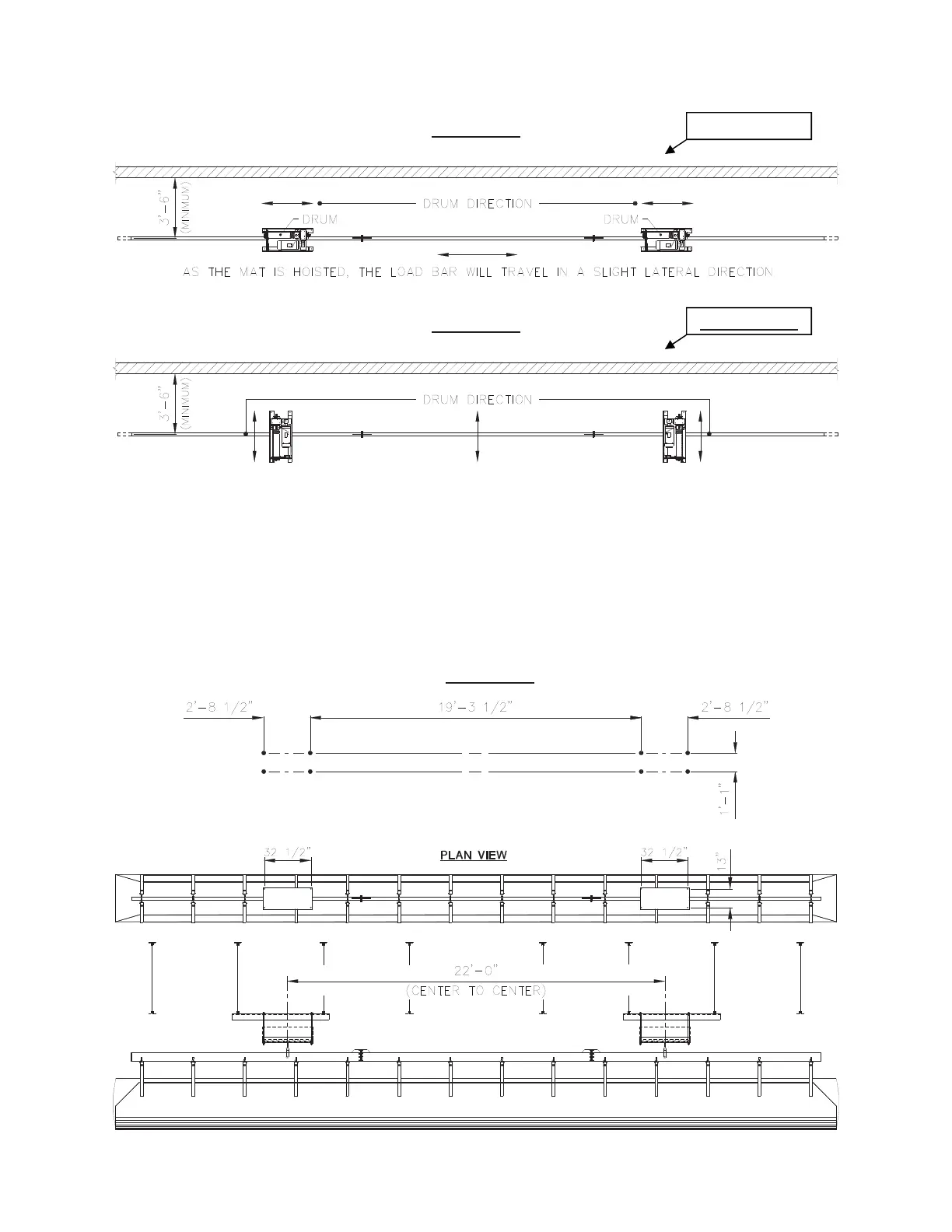

FIGURE A
CORRECT!
FIGURE B
INCORRECT!
3. ANCHOR LOCATIONS FOR OVERHEAD SUPPORTED UNITS
(Go to Step 4 if units are wall mounted.) The exact location of anchoring is included on
the custom installation print provided with each product. Four (4) high strength
eighteen-inch (18”) long rods are provided to suspend each hoist frame from the
structural. A typical installation is shown in Figure C.
FIGURE C
