Hardware Configuration
RUBY-D716VG2AR User’s Manual 2-5
J31 TPM(Trusted Platform Module)
Connector
BH10Px2/2.0mm
J32 CFEX Slot CFEX
J35 ATX Power ATX24/180D
J36 SYSTEM FAN Power Connector Connector3Px1/2.54mm

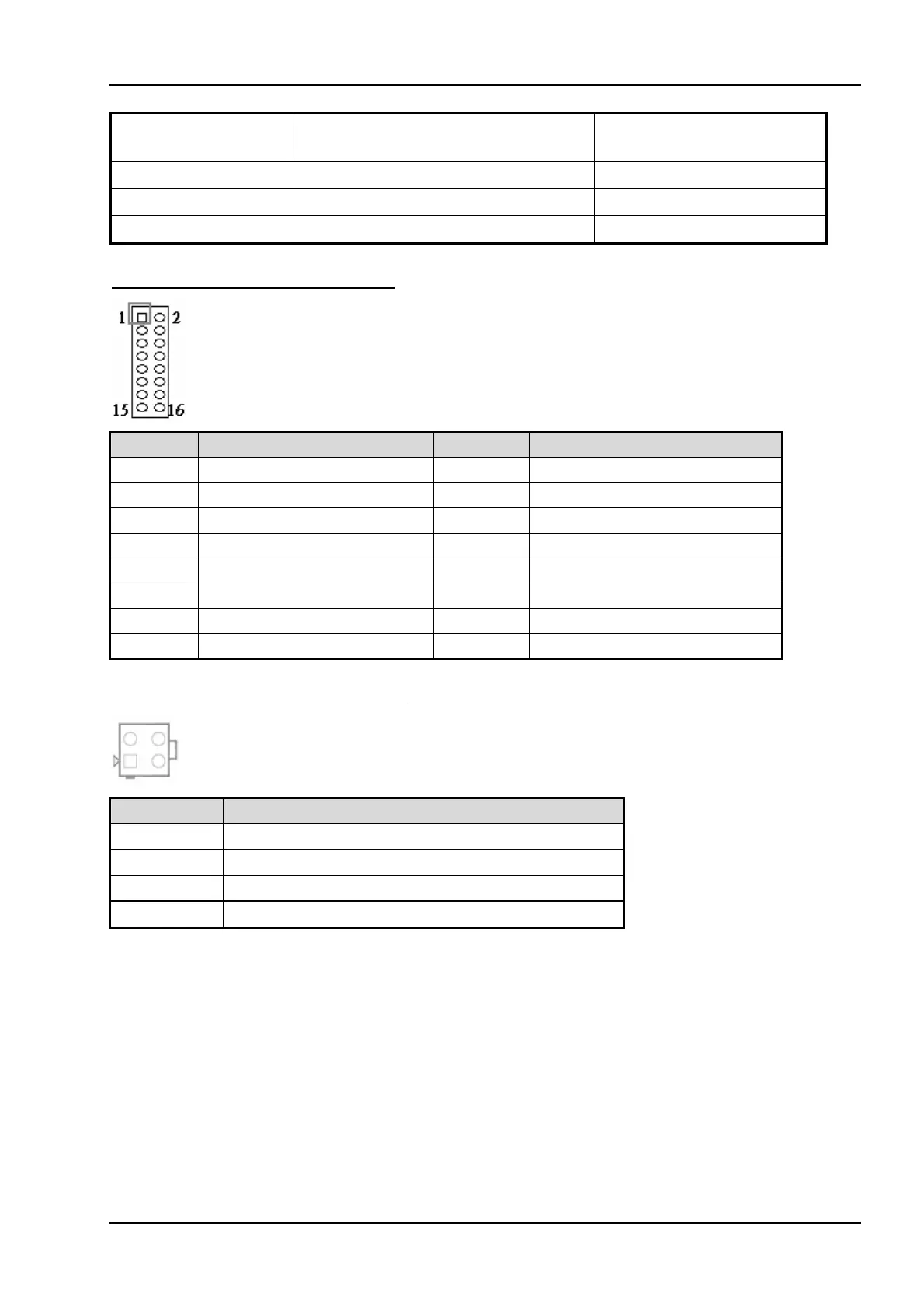

J6: Front Panel System Connector
PIN No. Signal Description PIN No. Signal Description
1 PWR_LED(+) 2 VCC
3 PWR_LED(-) 4 N/C
5 LAN1_ACT(+) 6 N/C
7 LAN1_LINK(-) 8 BUZZER
9 LAN2_LINK(-) 10 GND
11 LAN2_ACT(+) 12 Power Button
13 HDD_LED(+) 14 Rest
15 HDD_LED(-) 16 GND
J7: ATX 4Pin 12V Power Connector
PIN No. Signal Description
1 Ground
2 Ground
3 +12V
4 +12V
