BIOS Setup Information
RUBY-D716VG2AR User’s Manual 4-22

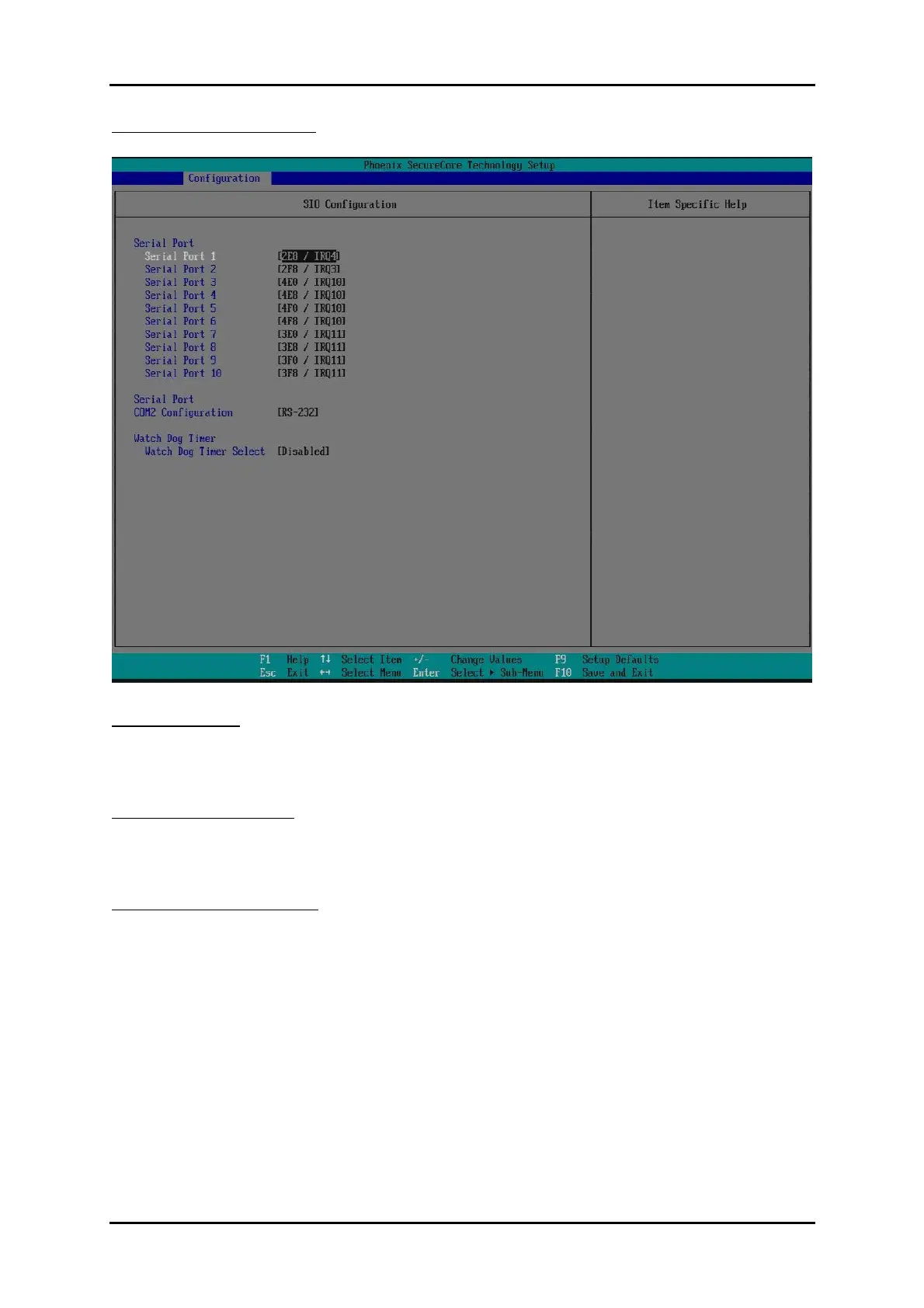

Super IO Configuration
Configure LPC Super IO.
Serial Port 1-10
Choices: Disabled, 2E8/IRQ4, 2F8/IRQ3, 4E0/IRQ10, 4E8/IRQ10, 4F0/IRQ10,
4F8/IRQ10, 3E0/IRQ11, 3E8/IRQ11, 3F0/IRQ11, 3F8/IRQ11
COM2 Configuration
Select Com2 Configuration.
Choices: RS-232, RS422, RS485.
Watch Dog Timer Select
Choices: Disabled, 15 secs, 30 secs, 1 min, 2 mins, 3 mins.
