RUBY-D718VG2AR
Copyright © Portwell 2016 RUBY-D718VG2AR
User's Guide
14
4 Hardware Configuration
4.1 Jumpers and Connectors
This chapter indicates jumpers’, headers’ and connectors’ locations. Users may find useful information related to
hardware settings in this chapter.

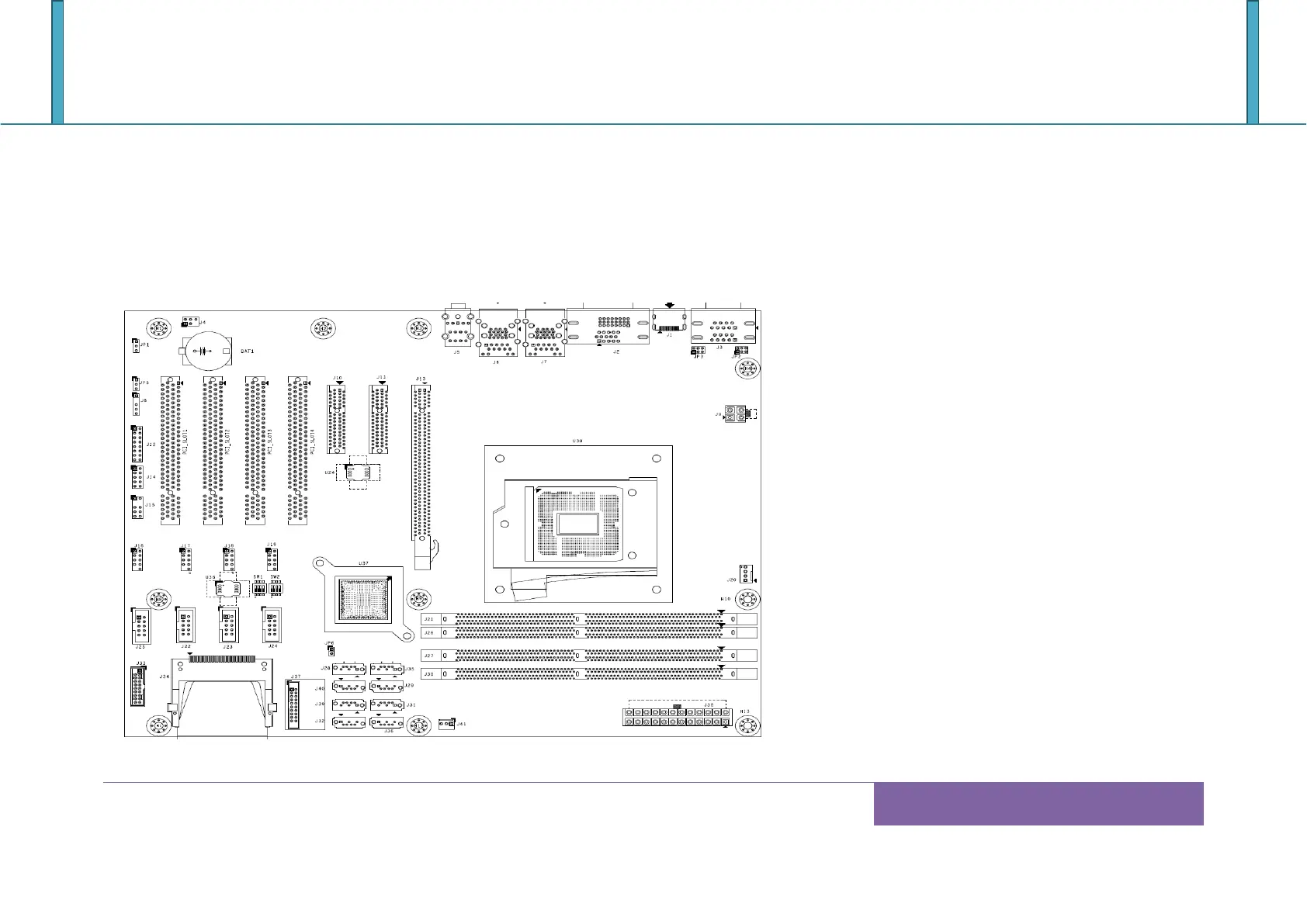

Figure 1, RUBY-D718VG2AR Top View
