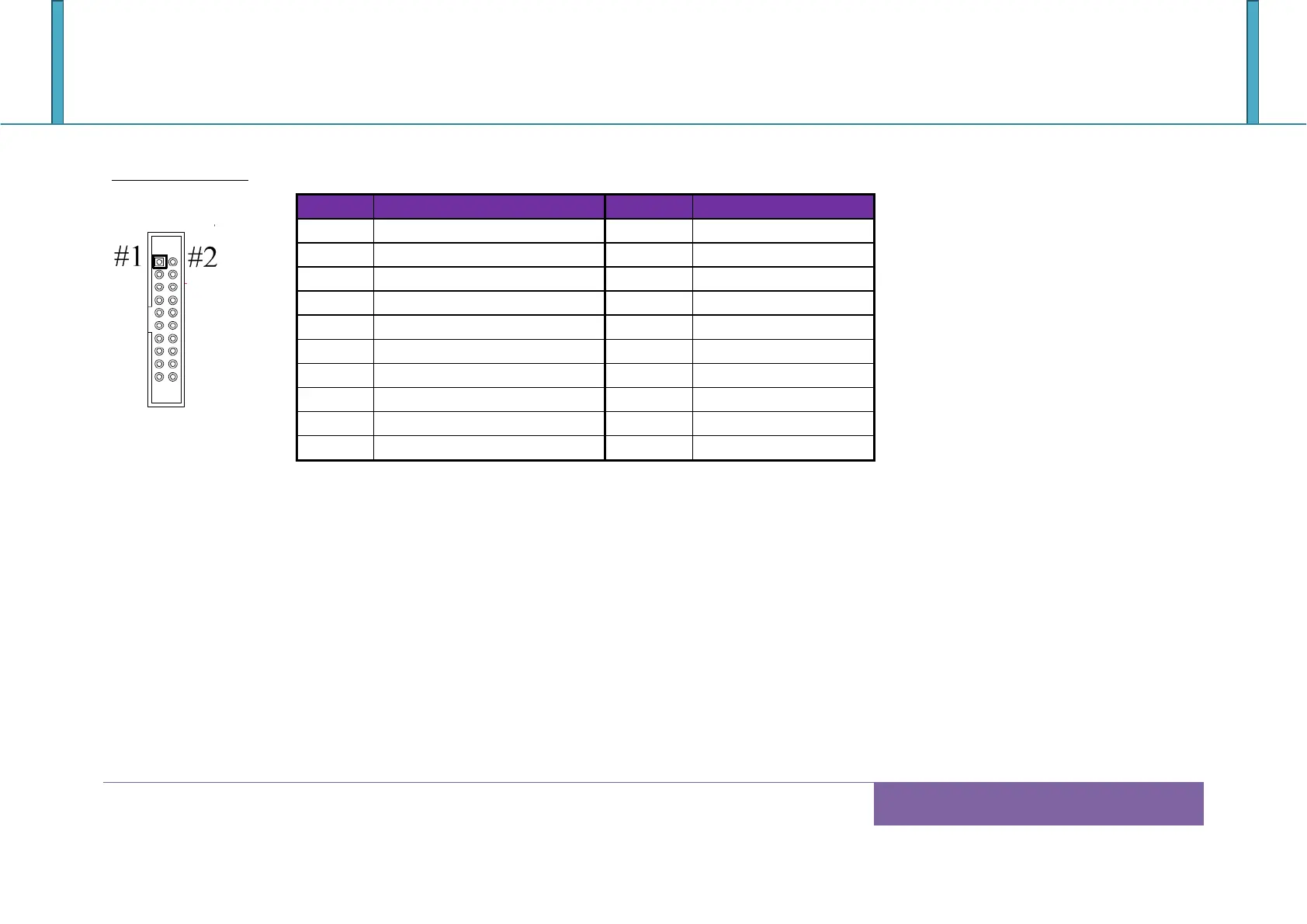

J37 : TPM Pin HDR
PIN No.
Signal Description
PIN No.
Signal Description
1
Clock
2
GND
3
LFRAME#
4
N/C
5
PLTRST#
6
+5V
7
LAD3
8
LAD2
9
+3.3V
10
LAD1
11
LAD0
12
GND
13
SMB_CLK
14
SMB_DATA
15
+3V_Dual
16
SERIRQ
17
GND
18
N/C
19
N/C
20
N/C
