POSEIDON JETSTREAM Mk3 - Page 14

SERVICE MANUAL
Page 13
Service manual Jetstream Mk3 - V. 1.0 - 11-02-08 Approved by: JN
JETSTREAM Mk3

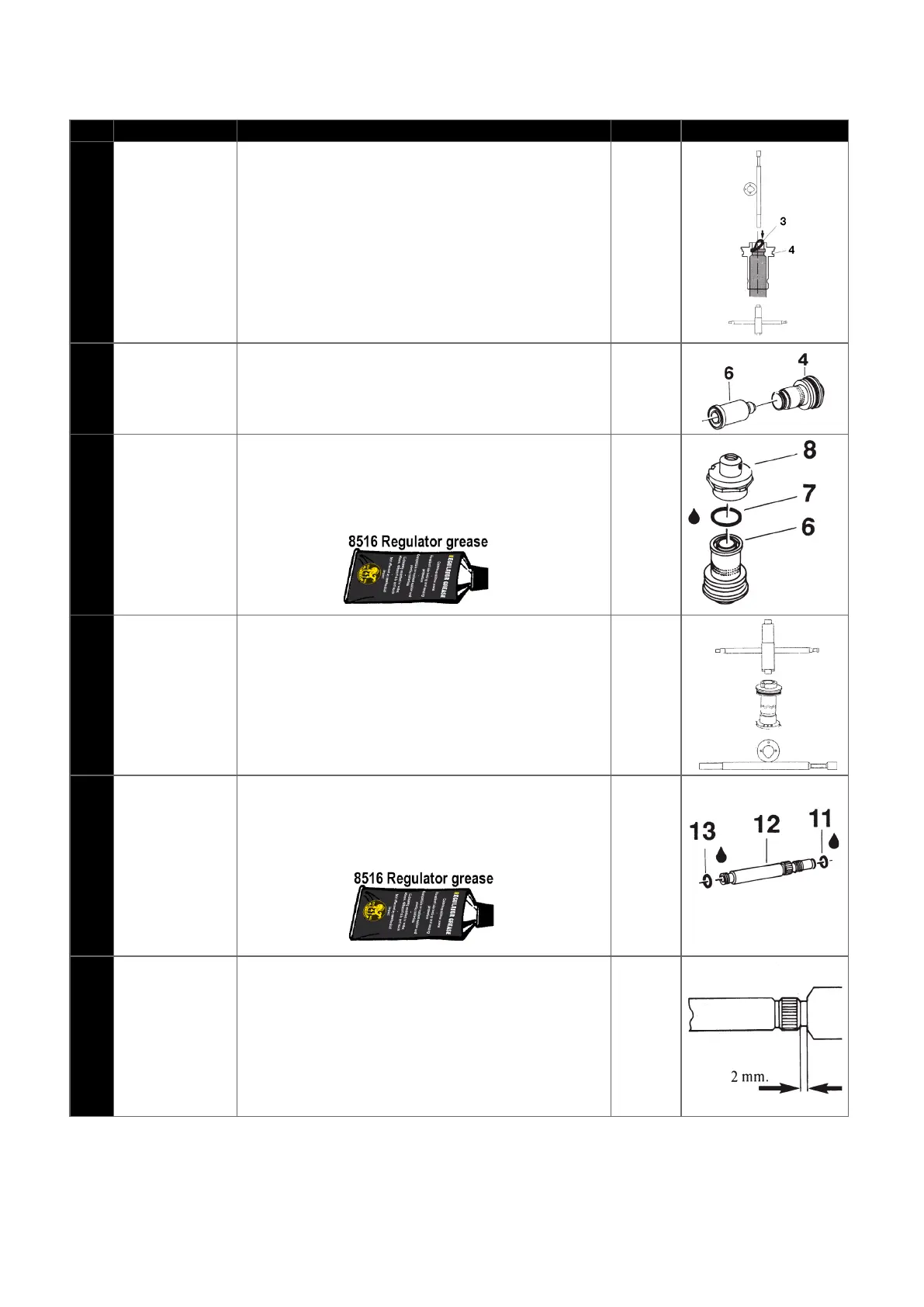

Step Parts Tools/Instructions Replace Picture
1
2856
2857
Mount the o-rings (5,3) on the valve housing (4).
Use the tools. See picture.
2
2857
3440
Install the valve insert (6) in the valve housing
(4). Do not use any lubricant on the valve insert
(4), use only soap and water.
3
2857
1233
2974
Place the o-ring (7) in the groove of the valve
insert (6).
Lubricate the thread. Install the valve housing
nut (8).
4
2857
2974
Place the valve housing in the handle. Tighten
with a tool. See picture.
5
2876
2839
1896 Install the o-rings (11,13) on the valve tube (12).
Lubricate the threads and the o-rings.
6
2839
Screw in the valve tube (12) until about 2 mm
space remains as illustrated.

ASSEMBLY


