22
8.0 Flue Options
© Baxi Heating UK Ltd 2012
Vertical
Flues
(ii)
(i)

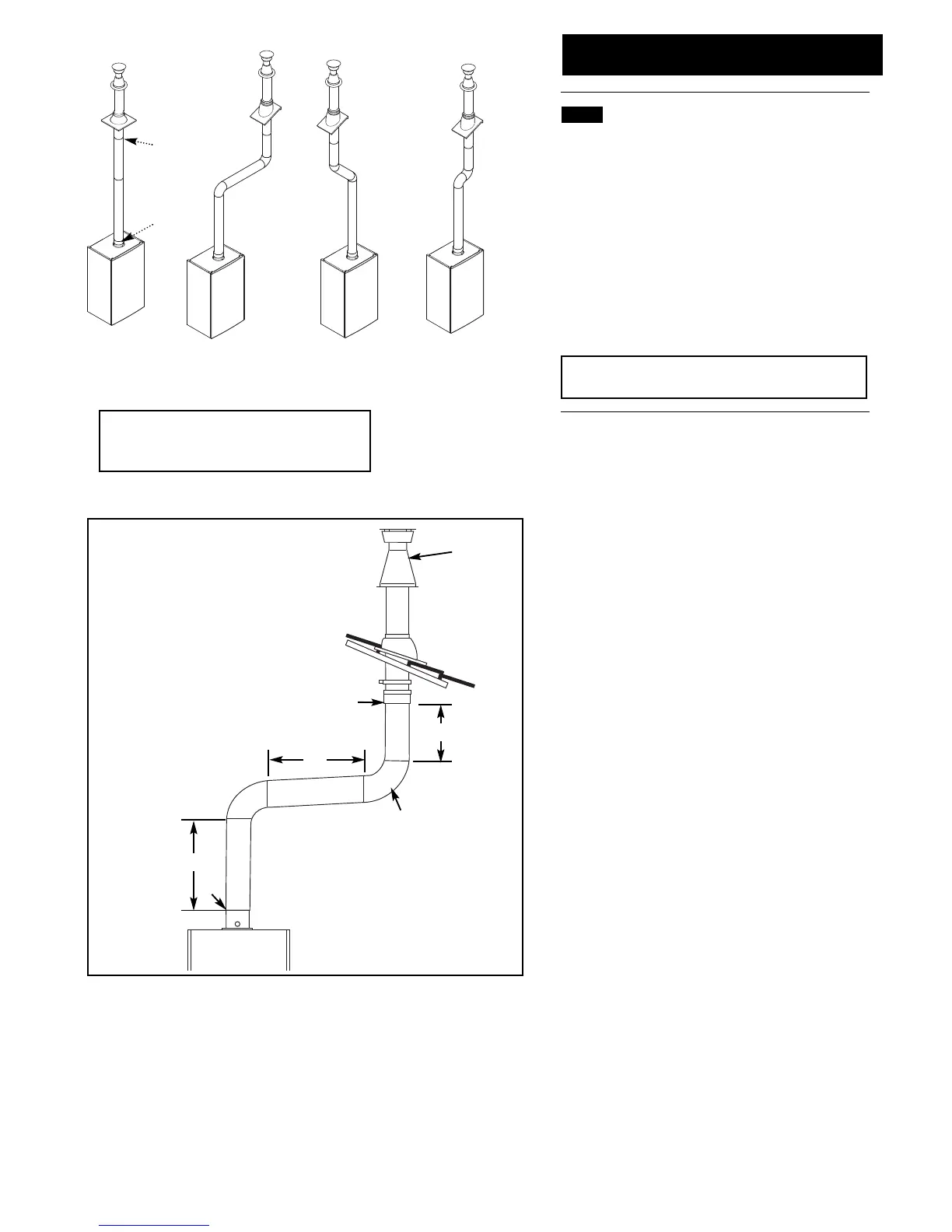

8.2 Vertical Flue Systems
1. Maximum permissible equivalent flue lengths are:-
Vertical Concentric 10 metres
2. Any additional “in line” bends in the flue system must be
taken into consideration.
Their equivalent lengths are:-
Concentric Pipes: 135° bend 0.5 metres
93° bend 1.0 metres
3. The elbow supplied with the standard horizontal telescopic
flue kit is not included in any equivalent length calculations
NOTE: Flue length is measured from point (i) to (ii) as
shown.
(ii)
(i)
C
Roof
Terminal
A
B
This bend is equivalent to
1 metre
Total Equivalent Length =
A+B+C+1x90°Bend
All vertical and angled runs must be included,
measured from the boiler adaptor (point i) to the
joint with the flue terminal (point ii). One 91.5°
bend or two 135° bends can be included without
reduction of the flue length.
If further elbows are required the flue length must
be reduced by the following amounts:-
1 metre for each 91.5° bend
0.5 metre for each 135° bend
IMPORTANT: All flue systems must be securely
supported at least once every metre. Suitable pipe
supports are available as accessories.
