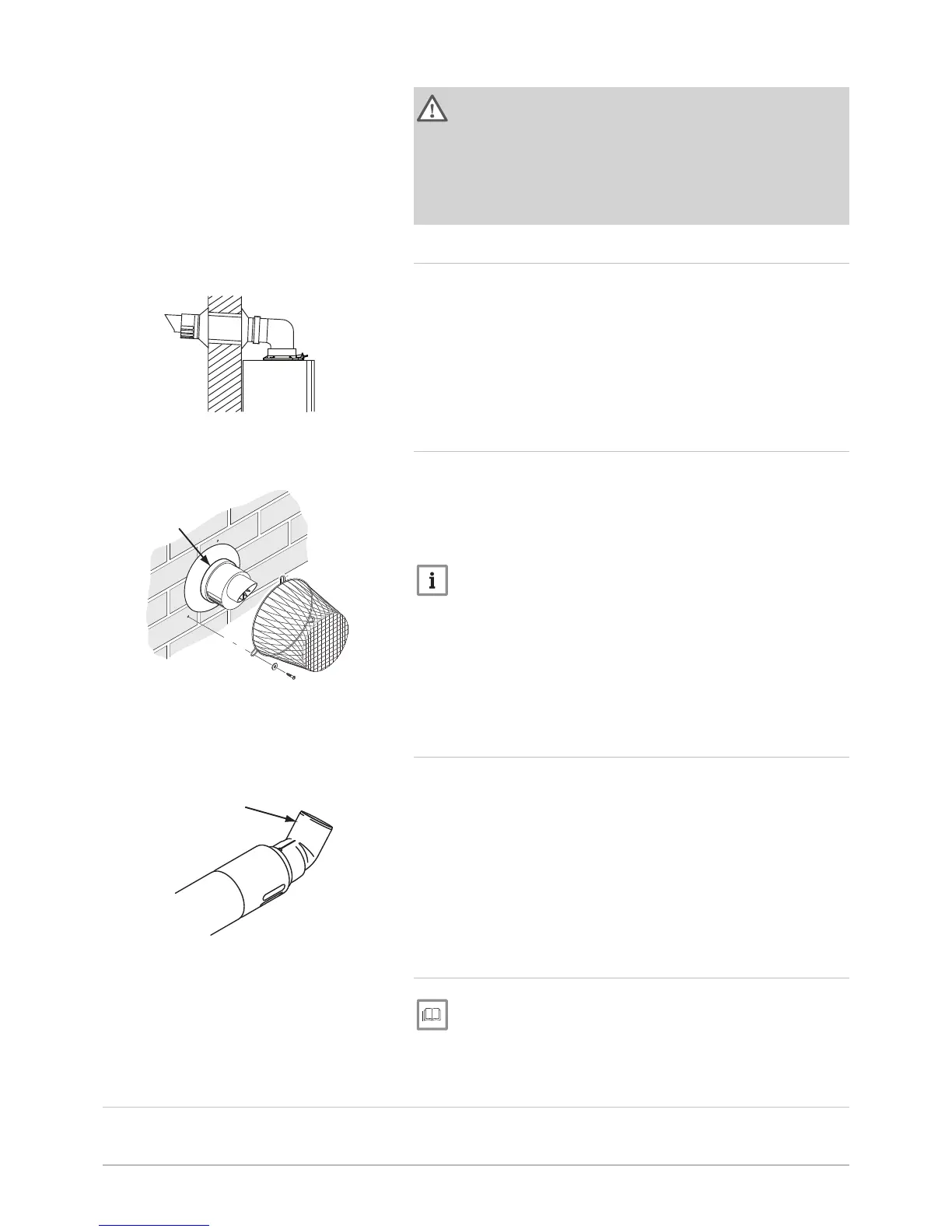

Warning
SUPPORT - All flue systems MUST be securely supported at a
MINIMUM of once every metre & every change of direction. It is
recommended that every straight piece is supported irrespective
of length. Additional supports are available as accessories.
VOIDS - Consideration must be given to flue systems in voids and
the provision of adequate access for subsequent periodic visual
inspection.
5.3.8 Flue/chimney trim
The flexible flue trims supplied can be fitted on the outer and inner faces of
the wall of installation.
5.3.9
Terminal guard
1
ENSURE THAT NO PART OF THE WHITE OUTER CHIMNEY
DUCT IS VISIBLE.
When codes of practice dictate the use of terminal guards Multifit accesso
ry part no. 720627901 can be used
Important
This guard is not compatible with Flue Deflector referred to below.
There must be a clearance of at least 50mm between any part of the ter
minal and the guard.
When ordering a terminal guard, quote the appliance name and model
number.
The flue terminal guard should be positioned centrally over the terminal
and fixed as illustrated.
5.3.10 Flue/chimney deflector
1
Flue deflector
Push the flue deflector over the terminal end. It may point upwards as
shown, or up to 45° either way from vertical. Secure the deflector to the
terminal with screws provided.
5.3.11 Flue/chimney accessories
See
For full details of Flue Accessories (elbows, extensions, clamps
etc.) refer to the Flue Installation Guide supplied in the literature
pack.
5.4
Transport
This product should be lifted and handled by two people. When lifting al
ways keep your back straight and wear protective equipment where nec
Fig.20
Flexible flue trims
To Next Page
