SECTION 1 POTTERTON COMMERCIAL PRODUCTS DIVISION
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
PAGE 2
PARAMOUNT

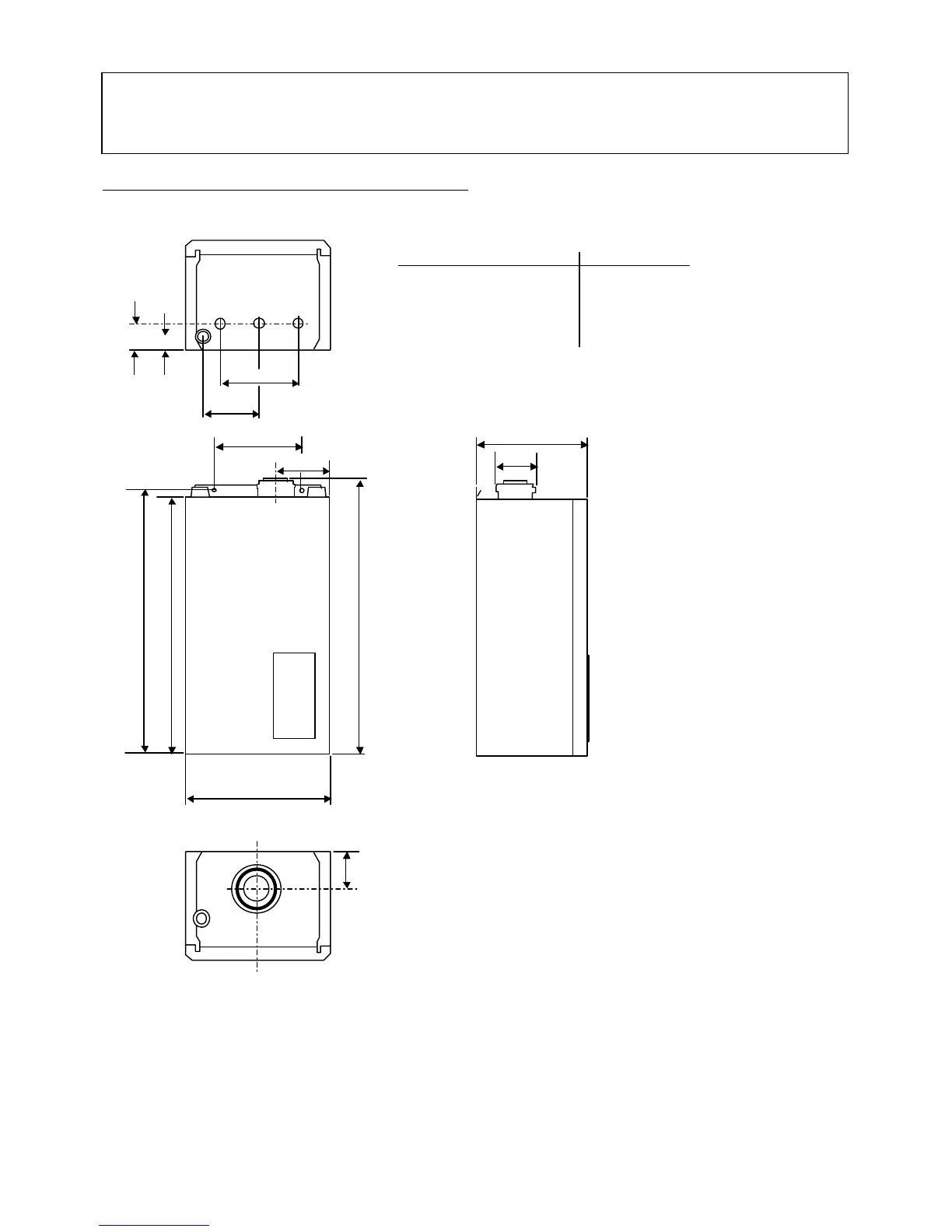

Fig 2 General Data and Dimensions Paramount 60 & 80
131.5
Ø151
Paramount 80
541.5
Paramount 60 446.5
Model
-
Paramount
60
80
HF Flow * 1 ½” 1 ½”
HR Return * 1 ½” 1 ½”
Gas Gas Connection ¾” ¾”
SIV Safety Valve ** ¾” ¾"
KA Condensate Drain Ø 25 mm
* When PARAFIT 60/80 is used, connection size is 1¼" for both models
** not supplied
Gas
HR
50
260
189
KA
80
NOTE: 75mm side clearance required for access to Control Unit when located next to wall
288
975
852
480
883
167.5
