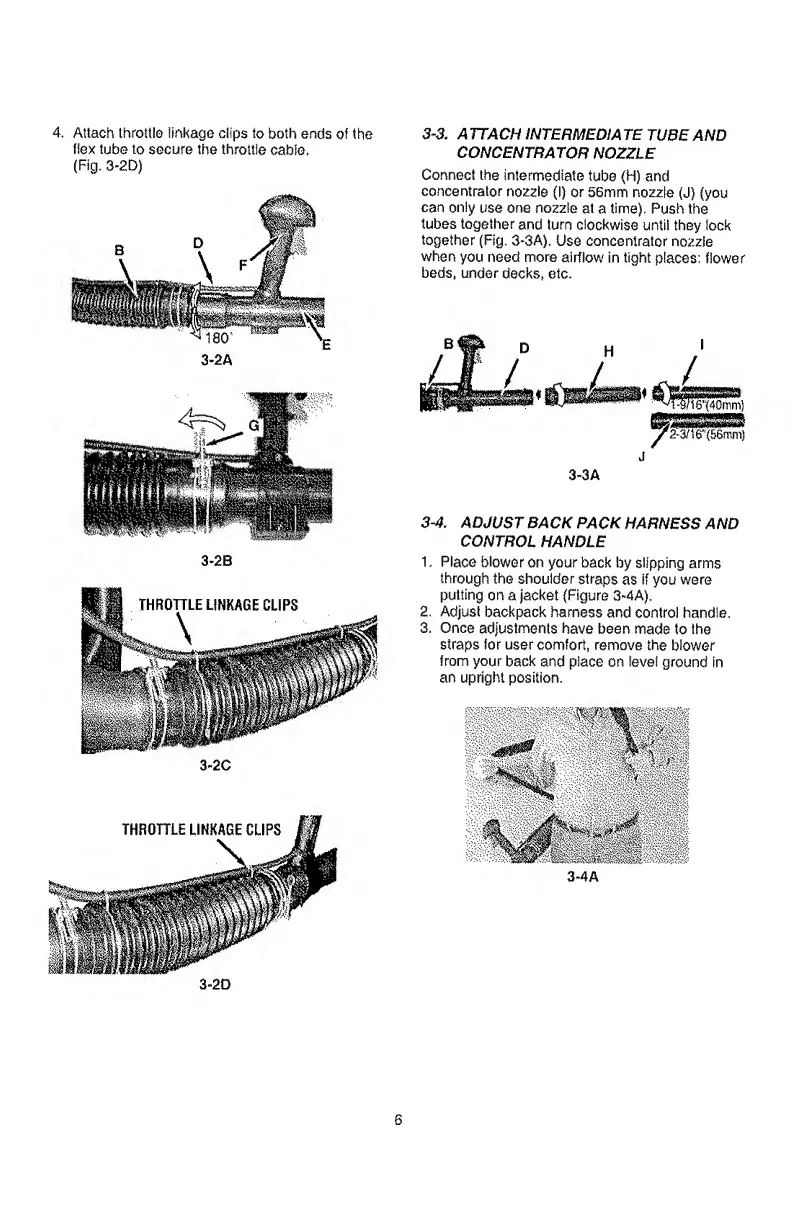

Poulan Pro PPBP30 - Attach Intermediate Tube and Concentrator Nozzle; Adjust Back Pack Harness and Control Handle

4. Attach throttle linkage clips to both ends of the
flex tube to secure the throttle cable.
(Fig. 3-2D)
3-2A
3-2C
3-2D
3-3. ATTACH INTERMEDIATE TUBE AND
CONCENTRATOR NOZZLE
Connect the intermediate tube (H) and
concentrator nozzle (I) or 56mm no 2 zie (J) {you
can only use one nozzle at a time). Push the
tubes together and turn clockwise until they lock
together (Fig. 3-3A). Use concentrator nozzle
when you need more airflow in tight places; flower
beds, under decks, etc.
J
3-3A
3-4. ADJUST BACK PACK HARNESS AND
CONTROL HANDLE
1. Place blower on your back by slipping arms
through the shoulder straps as if you were
putting on a jacket (Figure 3-4A).
2. Adjust backpack harness and control handle.
3. Once adjustments have been made to the
straps for user comfort, remove the blower
from your back and place on level ground in
an upright position.
3-4A
6
