2.2
1. Remove the metal “DIN” cage from your
aftermarket radio.
2. Slide the cage into the kit and secure by
bending the metal locking tabs down.
3. Locate the factory wiring harness in the
dash. Metra recommends using the proper
mating adapter from Metra or AXXESS.
Re-connect the negative battery terminal
and test the unit for proper operation.

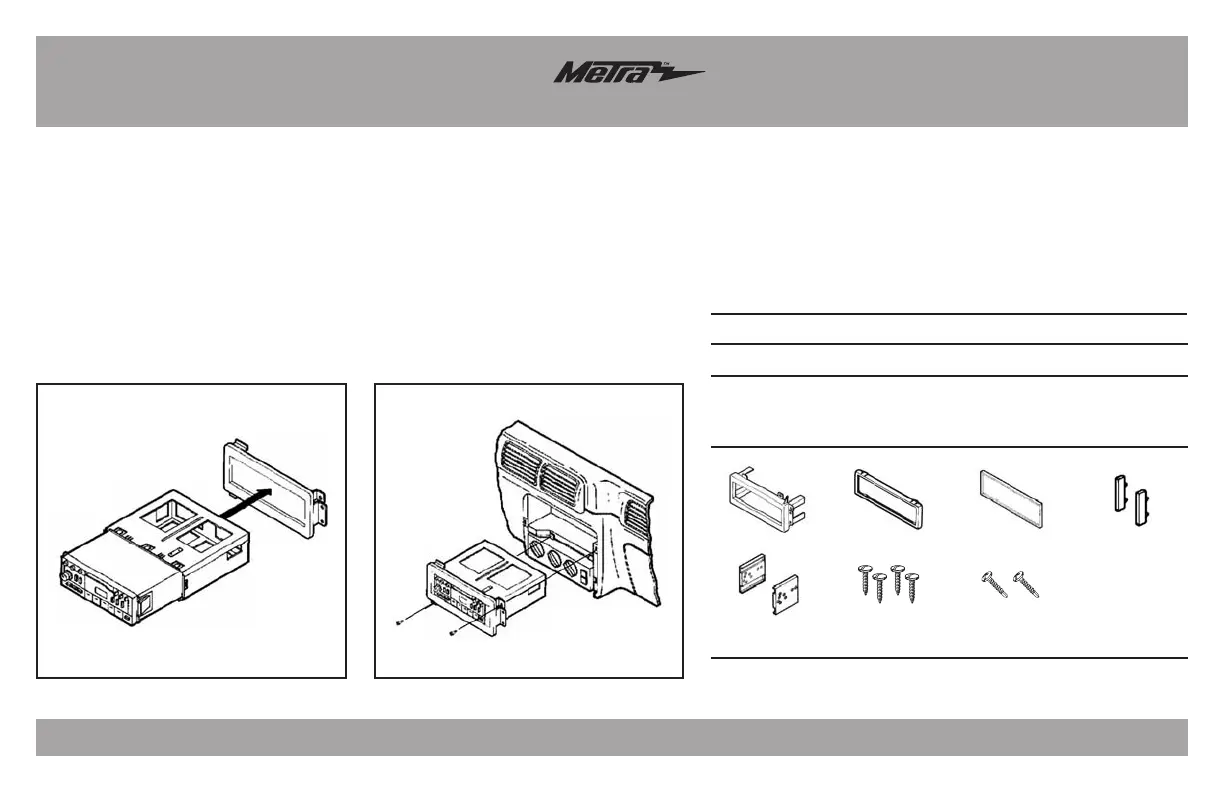

4. Slide the aftermarket radio into the cage
until secure. (Figure A)
5.
Reassemble dash in reverse order of
disassembly. (Figure B)
DIN radio provision
(Figure A)
Kit Assembly 99-6500
(Figure B)
99-6501
3.0
Section 3
• Phillips screwdriver • Socket wrench • Cutting tool
TOOLS REQUIRED
Chrysler/Dodge/Eagle/Ford/
Jeep/Lincoln/ Mercury/
Plymouth 1974-2003
99-6501
• A) Radio housing • B) ISO DIN faceplate
• C) Spacer • D) Snap spacers • E) (2) ISO DIN brackets
• F) (4) 5mm flat-head screws• G) (2) #6 Self-tapping screws
KIT FEATURES
KIT COMPONENTS
• DIN and ISO DIN provisions
A B C D
E F G
