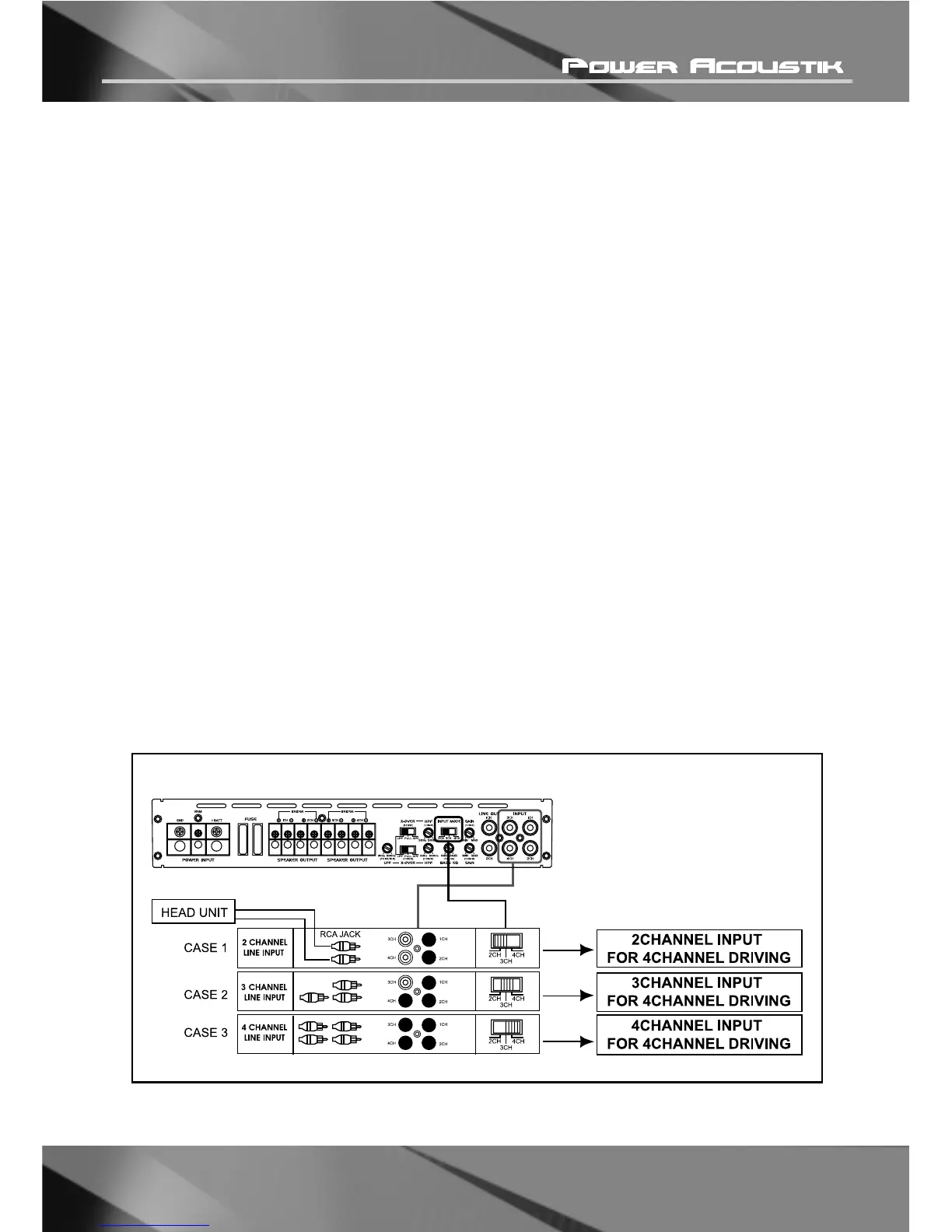

FIG. 1
CONTROL FUNCTIONS
16. FUSE
These fuses protect the amplifier against internal electrical damage and are meant to
protect the amplifier only. All other power connections should be fused at the source.
STAX1250/2 : 20A X 2 STAX1800/2 : 20A X 3 STAX2200/2 : 25A X 4
STAX1200/4 : 50A STAX1600/4 : 25A X 2 STAX2300/4 : 30A X 3
STAX2000/1D : 40A X 2 STAX4000/1D : 40A X 3 STAX5500/1D : 40A X 5
17. SPEAKERS
Connect subwoofers to these terminals.
18. LED
Will illuminate GREEN to indicate the amplifier is on and operating normally, and will
be illuminated RED if the amplifier shuts down due to short circuit, DC offset, or
overheating detected by on board protection circuitry
- 10 -
