Circuit No.
R331
R332
R333
R334
R335
R336
R337
R338
R339
R340
R341
U301
VR301
VR302
VR303

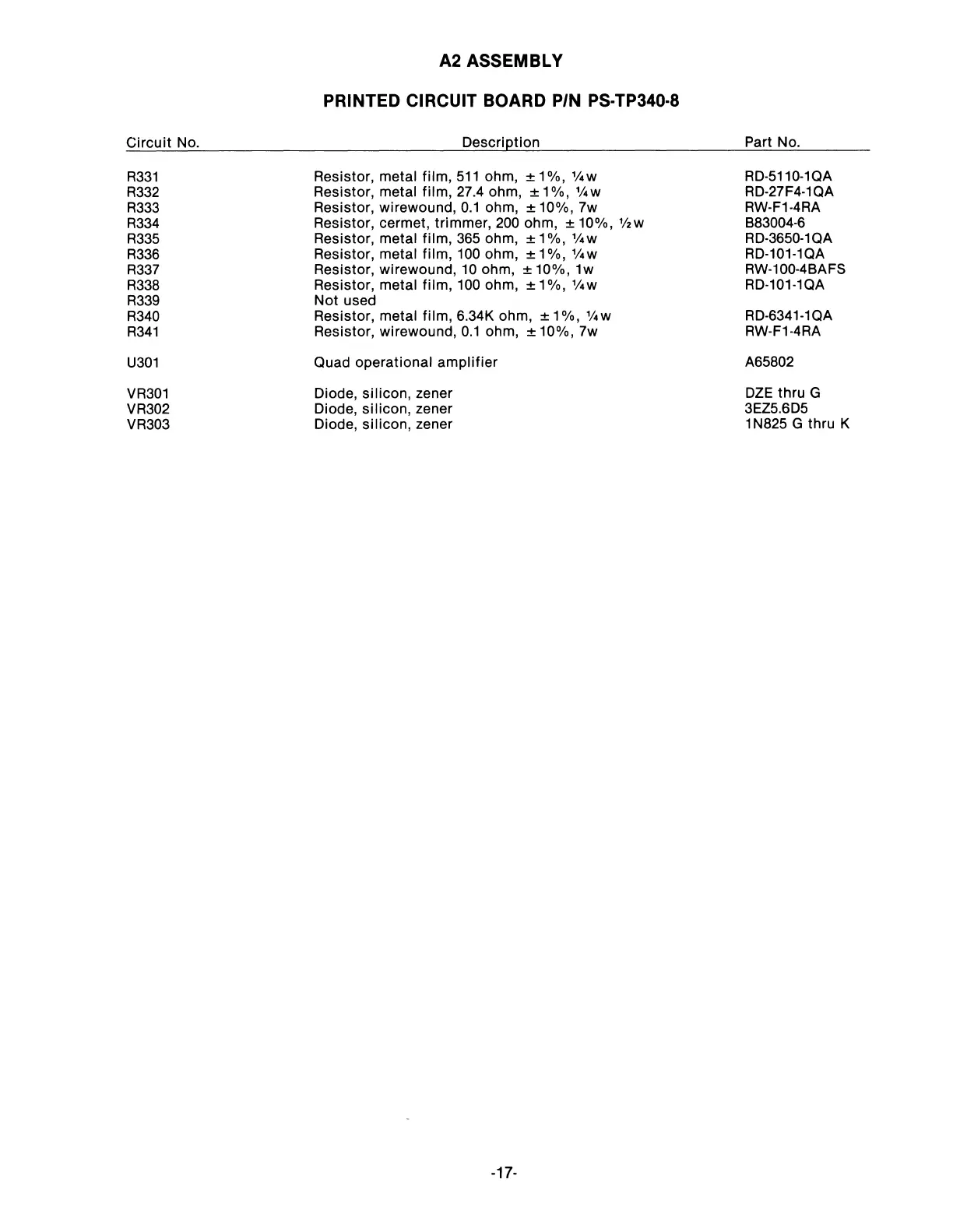

A2 ASSEMBLY
PRINTED CIRCUIT BOARD P/N PS·TP340·8
Description
Resistor, metal film,
511
ohm, ± 1 %,
V..w
Resistor, metal film, 27.4 ohm,
±1%,
1f4W
Resistor, wirewound,
0.1
ohm, ± 10%, 7w
Resistor, cermet, trimmer,
200
ohm, ± 10%,
%w
Resistor, metal film,
365
ohm, ± 1 %,
V..w
Resistor, metal film, 100 ohm,
±1%,
%w
Resistor, wirewound, 10 ohm, ± 10%, 1w
Resistor, metal film, 100 ohm, ± 1
%,
1
/4W
Not used
Resistor, metal film, 6.34K ohm, ± 1 %,
V..w
Resistor, wirewound,
0.1
ohm, ± 10%, 7w
Quad operational amplifier
Diode, silicon, zener
Diode, silicon, zener
Diode, silicon, zener
-17-
Part No.
RD-5110-1QA
RD-27F4-1QA
RW-F1-4RA
883004-6
RD-3650-1QA
RD-101-1QA
RW-100-4BAFS
RD-101-1QA
RD-6341-1
QA
RW-F1-4RA
A65802
DZE
thru G
3EZ5.6D5
1 N825 G thru K
