Circuit
No.
C401, C402
C403
C404, C405
CR401
thru
CR403
R401
R402
R403
R404
R405
R406
A3

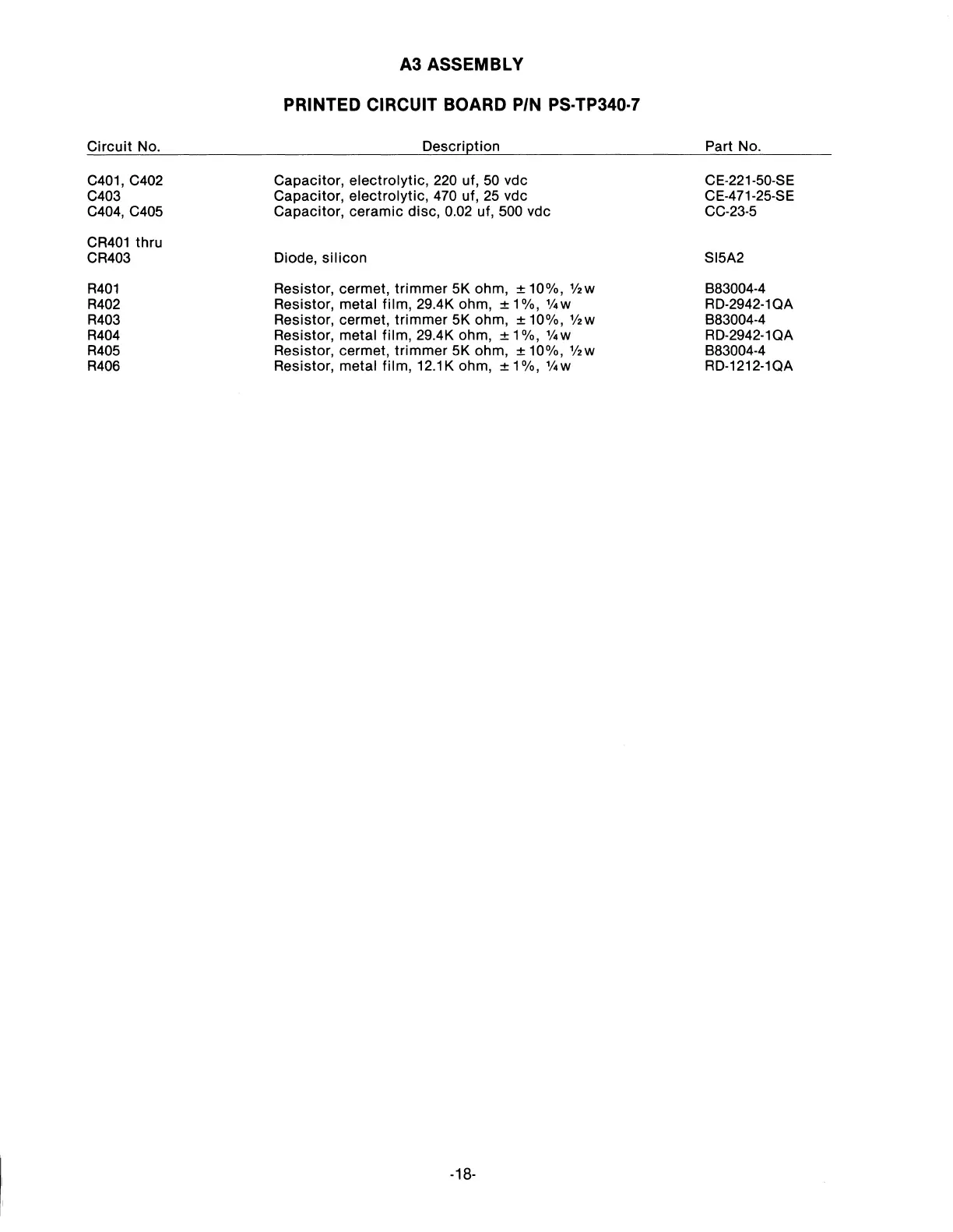

ASSEMBLY
PRINTED CIRCUIT BOARD P/N PS·TP340·7
Description
Capacitor, electrolytic, 220 uf,
50
vdc
Capacitor, electrolytic, 470 uf,
25
vdc
Capacitor, ceramic disc, 0.02 uf, 500 vdc
Diode,
silicon
Resistor, cermet,
trimmer
5K ohm, ±
10%,
1/zw
Resistor, metal film, 29.4K ohm, ± 1 %,
%w
Resistor, cermet,
trimmer
5K ohm, ±
10%,
1/zw
Resistor, metal film, 29.4K ohm, ± 1 %,
114
w
Resistor, cermet,
trimmer
5K ohm, ± 10%,
1/zw
Resistor, metal film,
12.1Kohm,
±1%,
%w
-18-
Part No.
CE-221-50-SE
CE-471-25-SE
CC-23-5
Sl5A2
883004-4
RD-2942-1QA
883004-4
RD-2942-1
QA
883004-4
RD-1212-1QA
