LSB-1000 Series
jjautomation.com
7
2. Overview of Structure
This product is composed with following parts
•
SPDT Mechanical / P&F Proximity Sensor NJ2-V3-N / Autonics Proximity Se
nsorPSN17-D
/ Honeywell SPDT limit Switches
• NAMUR Mounting Shaft and Brackets

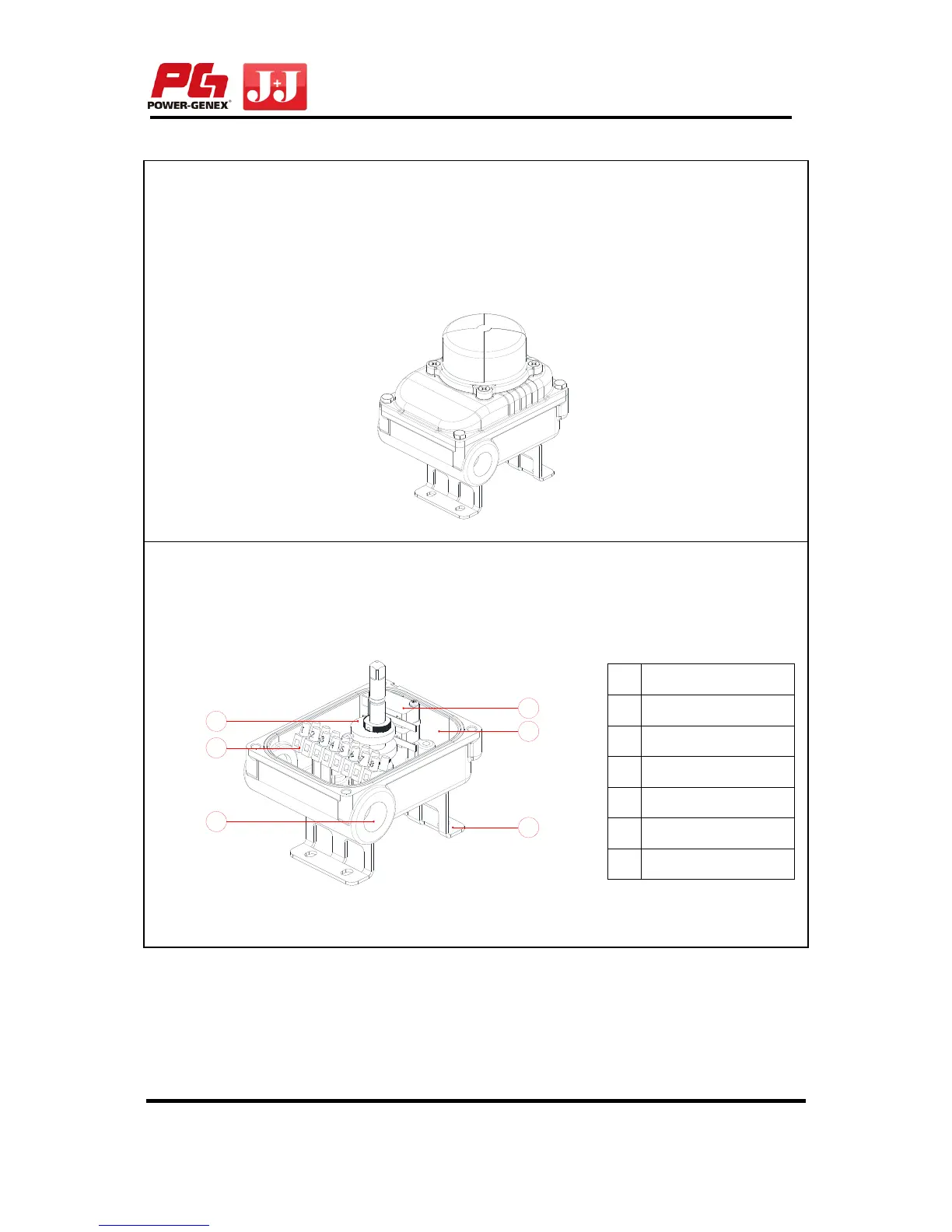

Below are descriptions and the internal view of the product with
open cover.
No. Description
1 LSB1000 Body
2 Switch / Sensor
3 Switch Cam
4 Socket Terminal
5 Wire Connector
6
Bracket
1
4
6
2
3
5
