Rev. A 10/18

Application Note AN-72

www.power.com

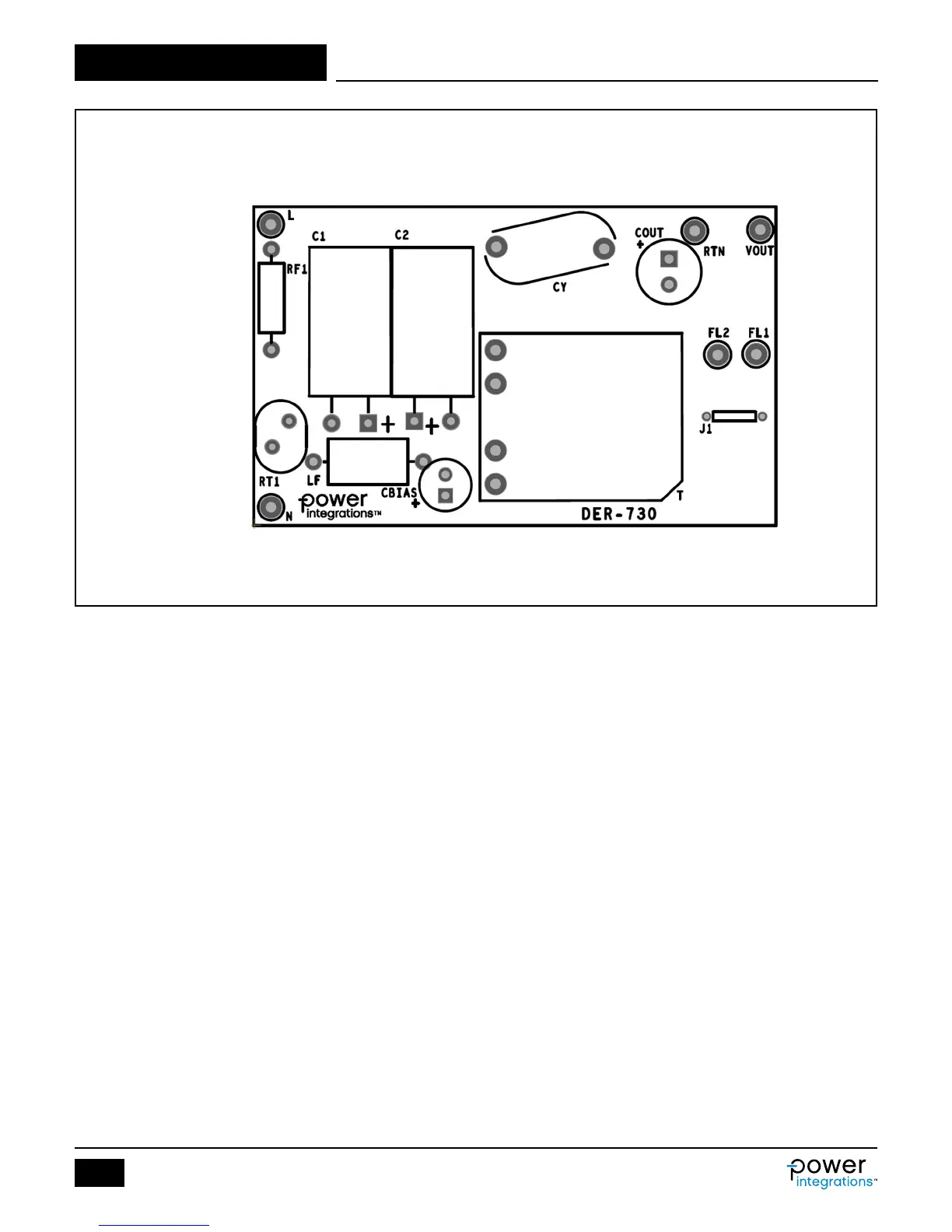

Figure 22. TOP Side – Layout Example Showing Through-Hole Components.

Safety

Y Capacitor

Transformer

Thermistor

Fuse

AC Input

Output

Terminals

Input Filter

Capacitors

EMI Filter

Inductor

Output

Capacitor

PI-8521-103117
