Application Note AN-72
www.power.com
Diode Across Current Sense R
IS
A diode (Schottky or ultrafast) positioned
across the current sense resistor (R
IS
) acts
as a bypass for very high surge of current
and voltage during short-circuit which
could potentially damage R
IS
. This is more
likely for designs with high output voltage
and high output lter capacitance.
Capacitor Across Current Sense R
IS
Putting a capacitor (10 - 100 nF) across IS
and GND pins when R
IS
is placed some-
what away from the IC will reduce pulse
grouping (bunching) in CC operation.

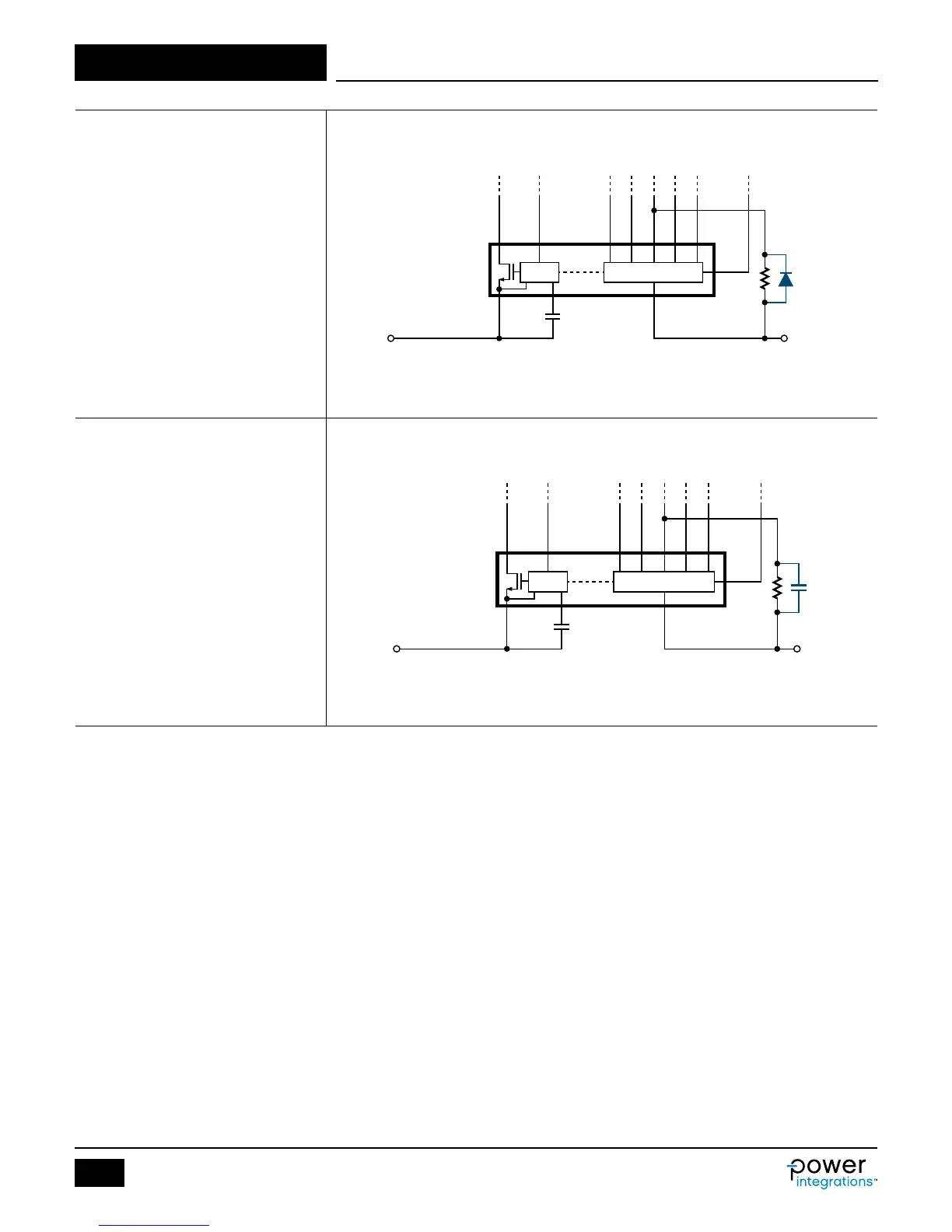

Figure 25 (cont.). Circuit Ideas to Enhance Design.
PI-8469-101017
Secondary
Control IC
Primary FET
and Controller
Diode
D V
S IS
VOUT
BPS FB
GND
SR
BPP
FWD
InnoSwitch3
R
IS
PI-8544-111017
Secondary
Control IC
Primary FET
and Controller
C
GS
D V
S IS
VOUT
BPS FB
GND
SR
BPP
FWD
InnoSwitch3
R
IS
