HPU Reservoir Replacement (continued)

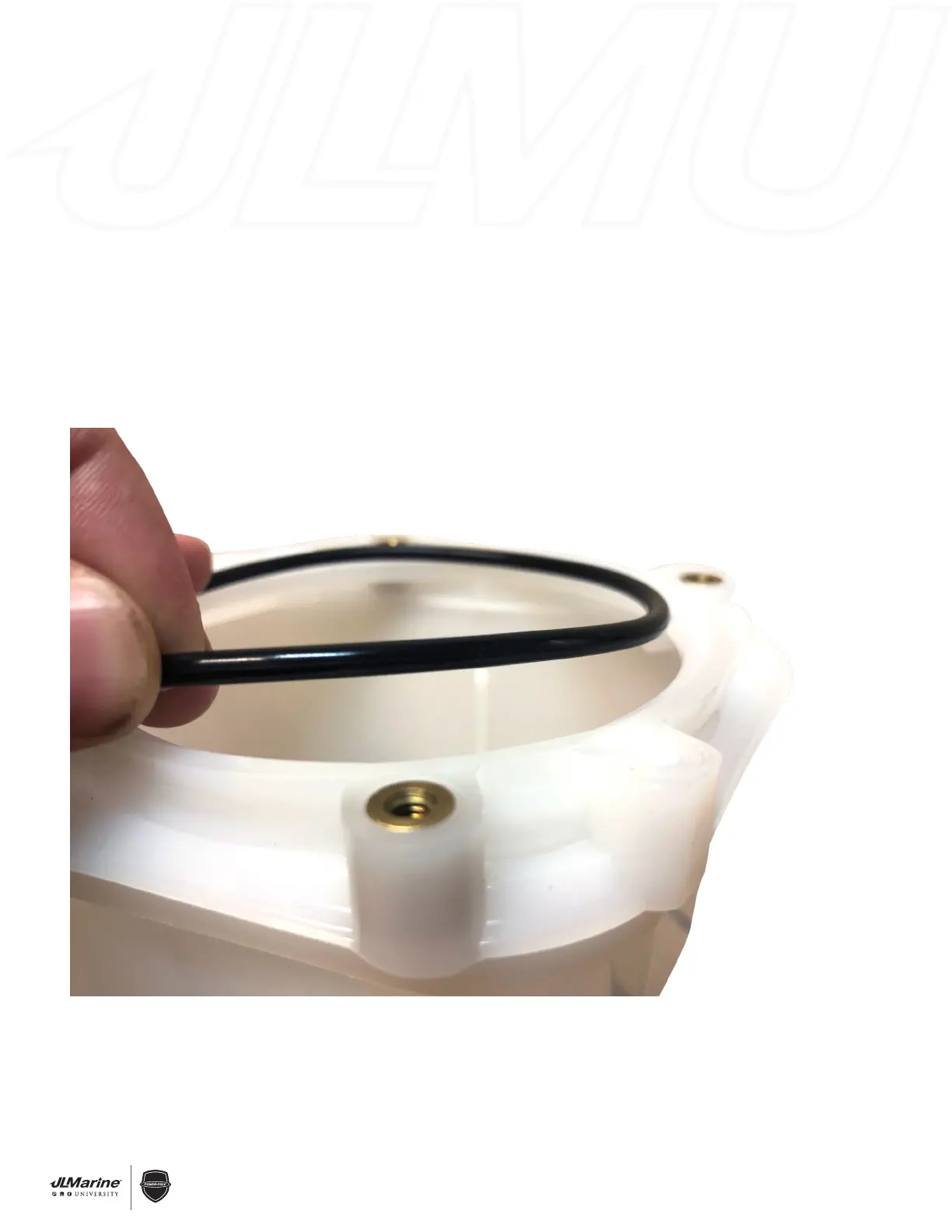

STEP 5 Place the new O-Ring (C) onto lip of the larger hole of the new Reservoir (A). FIG 3
STEP 6 Place the HPU onto the Reservoir (A), aligning all of the screw holes. Install the 4 Screws (E) and
tighten snug with a Philip Screwdriver or 1/4” Wrench.
STEP 7 Using a Funnel, fill the Reservoir up with either the recycled hydraulic fluid or a new bottle
of Green Marine ISO-32 Hydraulic Fluid.
STEP 8 Screw the Reservoir Cap (B) onto the smaller hole and hand tighten snug. The hydraulic unit is
now ready to be primed.
STEP 9 Refer to Power-Pole Priming Procedure Section 2.6
