www.powerprobe.com • 800-655-3585
Power Probe Basic
14
REPLACING OLD ROCKER SWITCH
ATTACHING THE SWITCH LATCH
Rocker Switch slots makes it easy to replace a worn out switch in
the eld without having to send it in for repair.
Switch Latch (included) holds constant power or ground to your
circuit for many applications and dynamic testing.

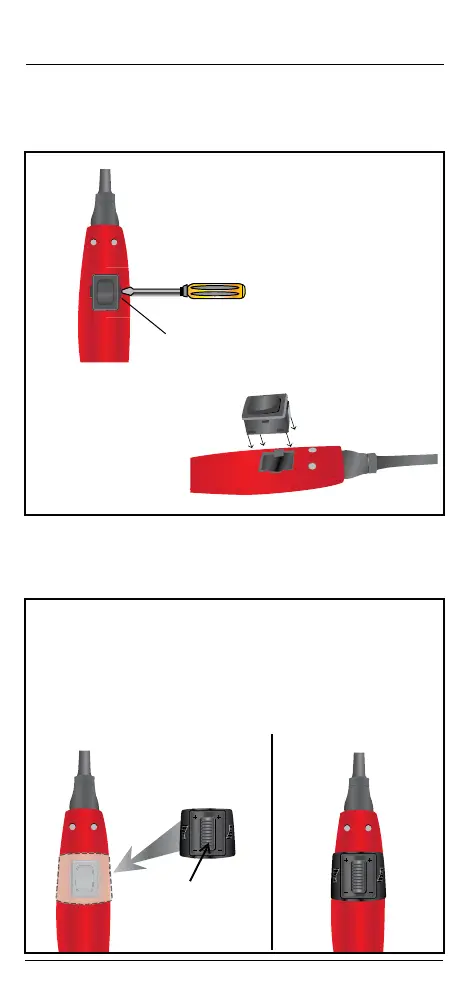

Remove the old rocker switch with a small
screw driver or any at end pry tool. Insert
the tool into the slot and carefully apply a
mild force by lifting and popping out the
switch from the casing.
Make sure to install the new
switch straight and press
until ush with casing.
Rocker Switch
(PN005)
Slot
Position the Switch Latch on top of the Rocker Switch. Make sure the (+)
sign is on the top and the slider is placed on neutral position. Insert one side
of the bottom edge into the slot then push and snap the other side of the
latch until you hear a click sound indicating that the switch latch has been
fully attached to the tool. Once installed, test the slider by pushing upward
and downward to make sure it was attached correctly.
To detach the latch, use a small screwdriver or any at end pry tool. Insert
the tool into one of the slot and carefully apply a mild force by lifting the
switch from the case.
Switch Latch
Slider
