** NOTE: Item #3 MAIN STATOR ASSEMBLY is a one-piece unit. The Stator cannot be separated from the
Generator’s outer housing. Item #8 MAIN ROTOR ASSEMBLY is a one-piece unit. Hub, blower fan
and coupler are included.
DESCRIPTION PART NUMBERS
16KW 21KW
1. BEARING PLATE 02BRPLKONCAR 02BRPLKONCAR
2. EXCITER STATOR 02STA21EXCR 02STA21EXCR
3. MAIN STATOR ASSEMBLY ** 02STAMN16 02STAMN21
4. O-RING O-RING KON O-RING KON
5. ROTOR BEARING 02BRG62206-2RS1 02BRG62206-2RS1
6. DIODE PLATE 02PLD21CR 02PLD21CR
7. EXCITER ROTOR 02RTR16EXCR 02RTR21EXCR
8. MAIN ROTOR ASSEMBLY ** 02RTR16KON 02RTR21KON
GENERATOR ASSEMBLY 02GEN16EXCR 02GEN21EXCR
VOLTAGE REGULATOR 02REG24 02REG24

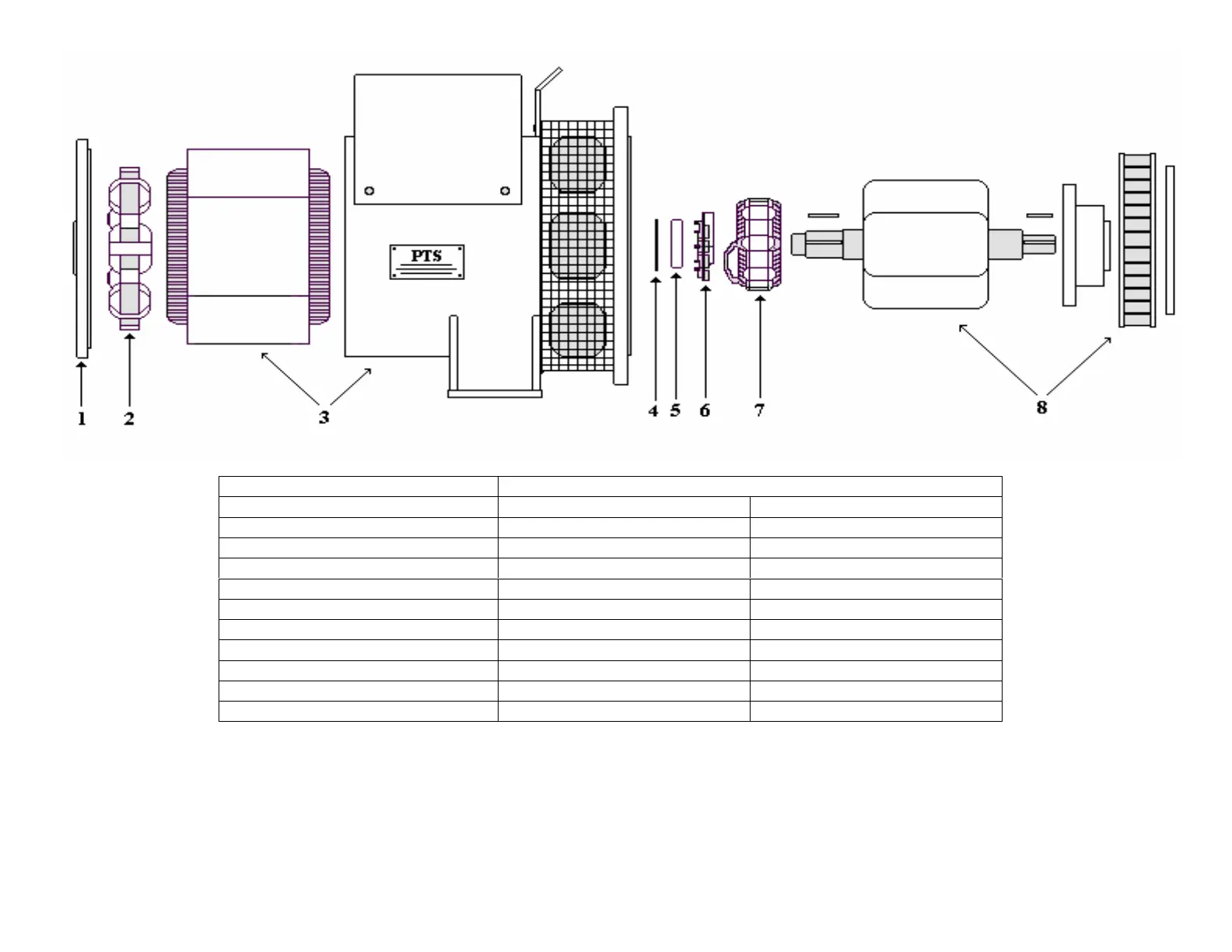

“K” SERIES EXCITER TYPE GENERATOR ASSEMBLY
