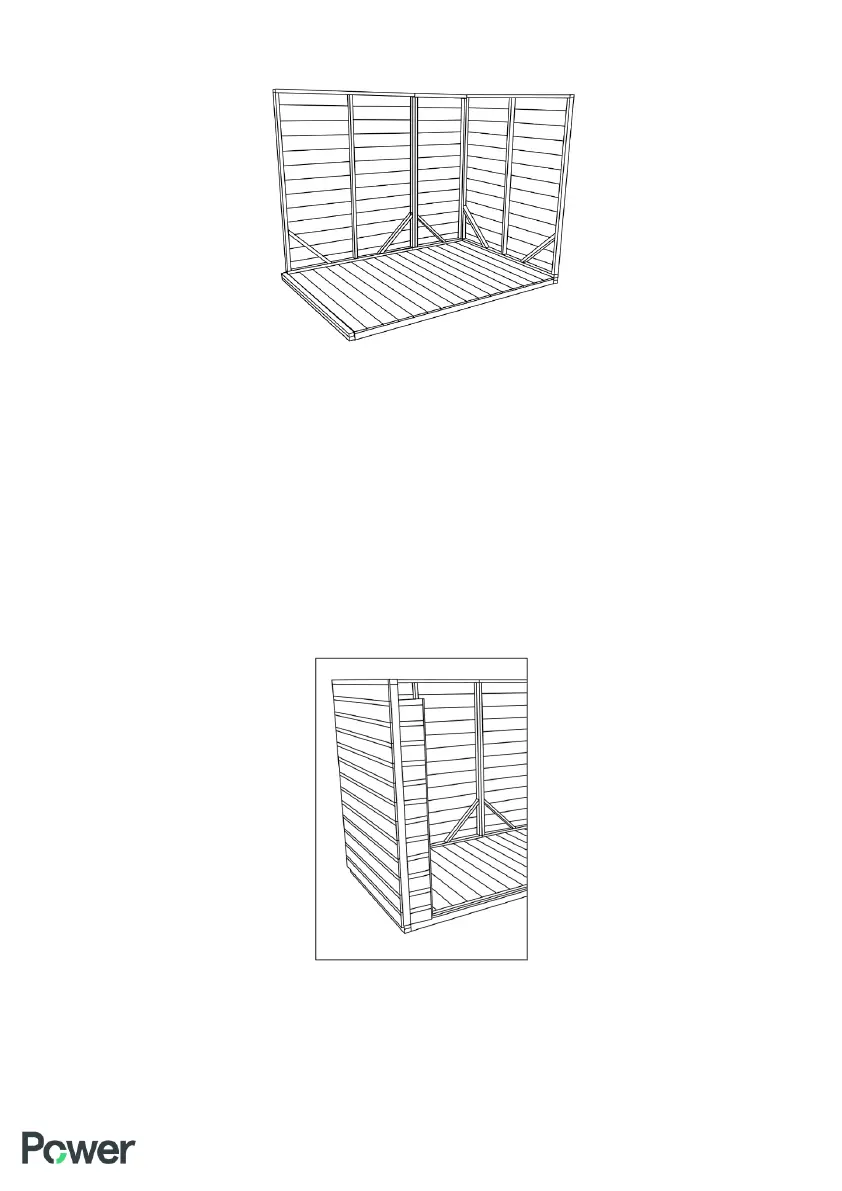

5. Keep going until the back wall and both ends are secured together leaving the front section open. The
back of our 8ft buildings will need to be built using a 2ft, then a 4ft, then another 2ft panel. Our 10ft
buildings will need to built using one 2ft panel, then two 4ft panels.
6. Attach the final wall panel to the ‘front’ of the shed, creating a corner (this will be a 2ft panel on our
8ft buildings or a 4ft panel on our 10ft buildings).
7. Then attach the panels which go at the side of doors (called the door wings). Again, continue to use
50mm screws (three screws per join).
Page 11 of 21
