PowerBox-Systems − World Leaders in RC Power Supply Systems
2. CONNECTIONS, CONTROLS

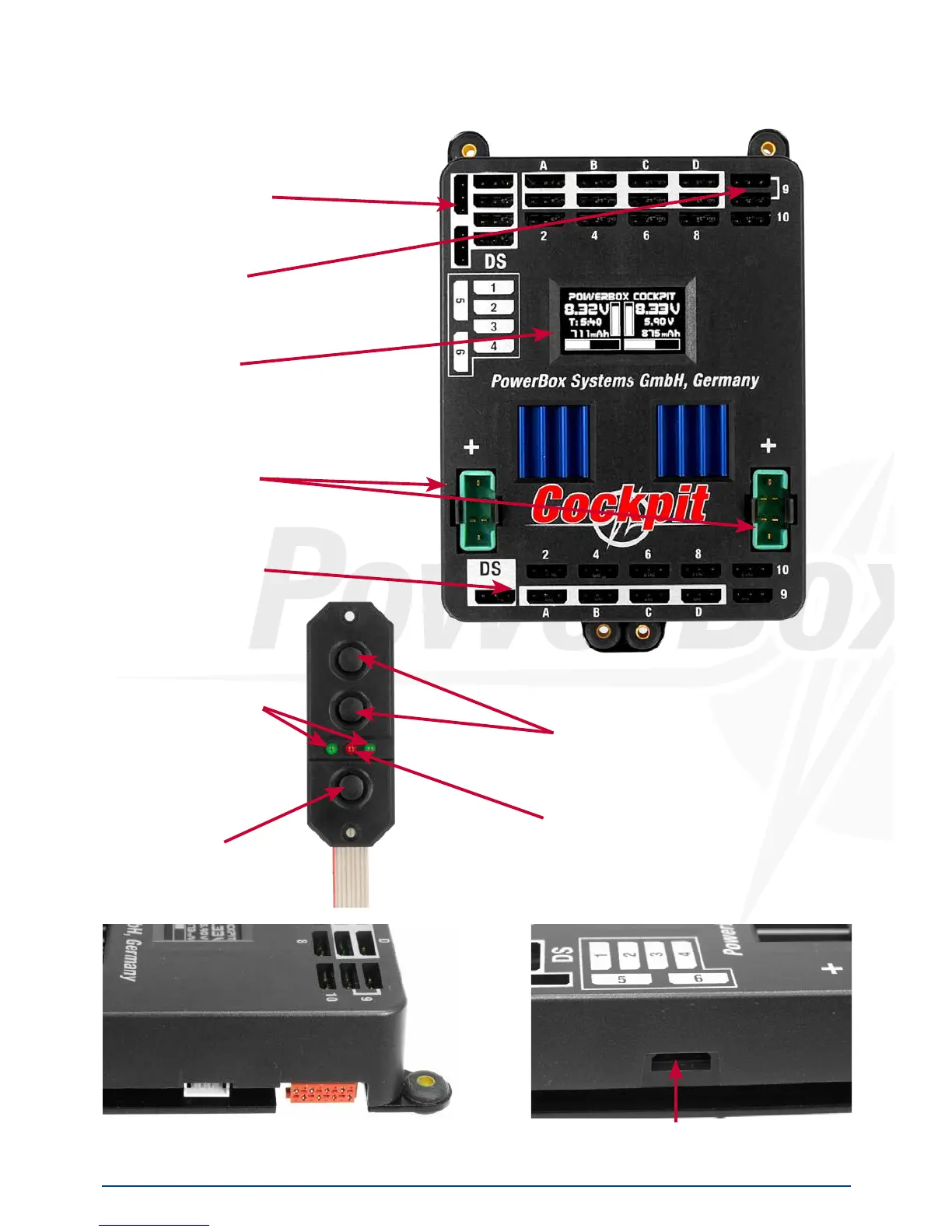

The following illustrations show the essential sockets and controls:
Door sequencer
outputs
Servo sockets
OLED screen
Battery input,
Battery 1 and 2
Receiver inputs
Connector for Jeti, Futaba, Mul-
tiplex and HoTT Telemetrie
Left: socket for Spektrum telemetry
Right: SensorSwitch socket
LEDs for power
ON signal
SET-Button
Switch buttons for
Battery 1 and 2
LED for activation
