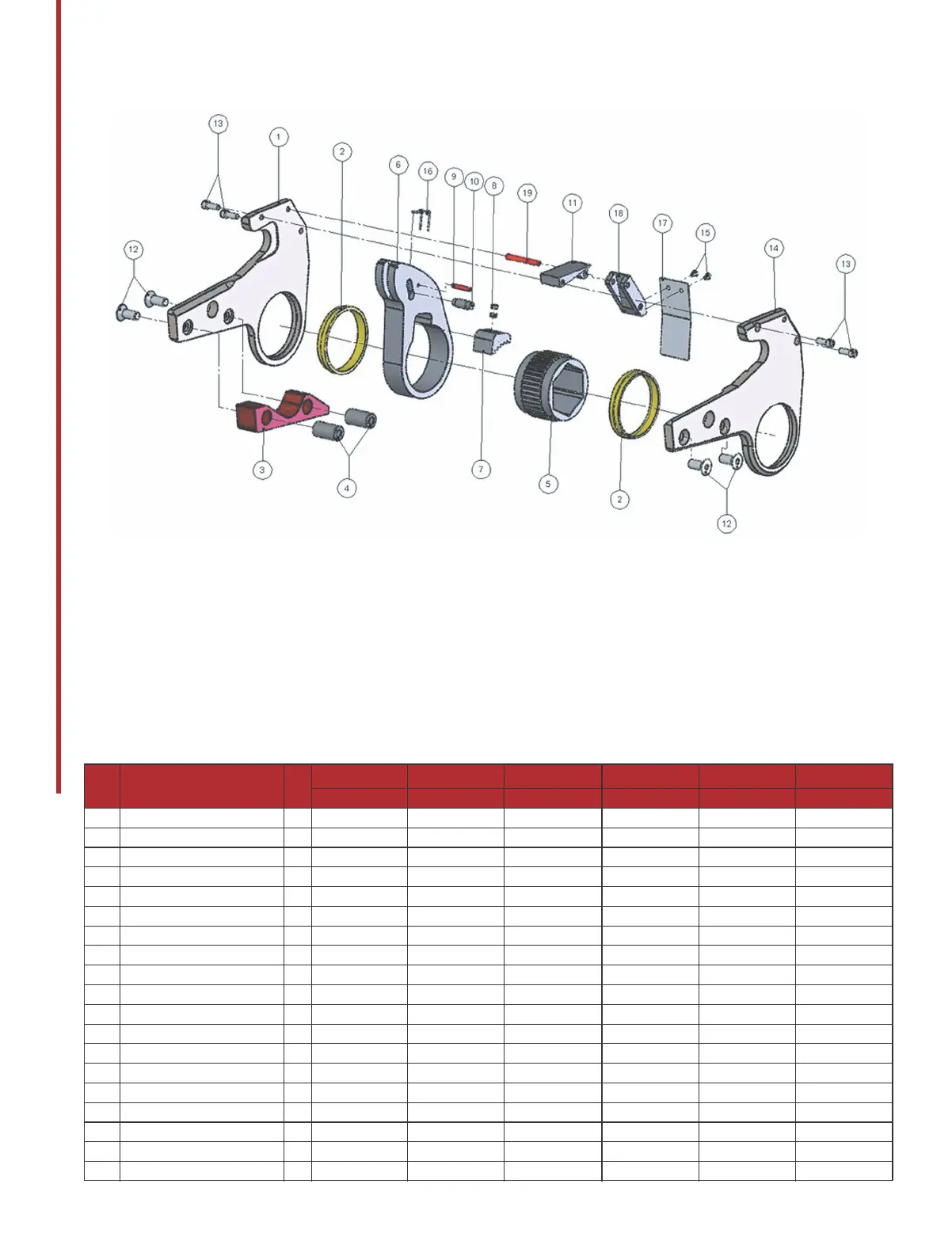

Figure 9 - PXD – 16 and 32 Series Ratchet Link
Table 2 – Part Identification of PXD-1, 2, 4, 8, 16 and 32 Series Ratchet Link
SR. Qty. PXD-2 PXD-4 PXD-8 PXD-16 PXD-32
DESCRIPTION PXD-1
No.
PART NO PART NO PART NO PART NO PART NO PART NO
1 Side Plate-L 1 BT-001020-01 BT-001021-01 BT-001022-01 BT-001023-01 BT-001024-01 BT-001025-01
2 Sleeves-Side plate 2 BT-001020-12 BT-001021-12 BT-001022-12 BT-001023-12 BT-001024-12 BT-001025-12
3 Lower Spacer 1 N/A BT-001021-10 BT-001022-10 BT-001023-10 BT-001024-10 BT-001025-10
4 Lower spacer pin 2 BT-001020-11 BT-001021-11 BT-001022-11 BT-001023-11 BT-001024-11 BT-001025-11
5 Ratchet 1 BT-001020-06 BT-001021-06 BT-001022-06 BT-001023-06 BT-001024-06 BT-001025-06
6 Drive Plate 1 BT-001020-03 BT-001021-03 BT-001022-03 BT-001023-03 BT-001024-03 BT-001025-03
7 Drive segment 1 BT-001020-07 BT-001021-07 BT-001022-07 BT-001023-07 BT-001024-07 BT-001025-07
8 Segment Spring 1 BT-001020-14 BT-001021-14 BT-001022-14 BT-001023-14 BT-001024-14 BT-001025-14
9 Spring pin rolled 1 2050043 2050057 2050076 2050098 2050181 2050181
10 Drive pin 1 BT-001020-04 BT-001021-04 BT-001022-04 BT-001023-04 BT-001024-04 BT-001025-04
11 Upper spacer 1 N/A BT-001021-08 BT-001022-08 BT-001023-08 BT-001024-08 BT-001025-08
12 Hex countersunk flat screw 4 N/A 1550001 1550001 155001 1550001 1550001
13 Socket head cap screw 4 100001 100001 100001 1110001 100001 110001
14 Side Plate-R 1 BT-001020-02 BT-001021-02 BT-001022-02 BT-001023-02 BT-001024-02 BT-001025-02
15 Button head cap screw 2 NA 110001 110001 100001 110001 100001
16 Drive pin spring 1 BT-001020-05 BT-001021-05 BT-001022-05 BT-001023-05 BT-001024-05 BT-001022-05
17 Shroud 1 N/A BT-001021-13 BT-001022-13 BT-001023-13 BT-001024-13 BT-001022-13
18 Middle spacer 1 N/A N/A N/A N/A BT-001024-49 BT-001025-49
19 Spring pin 1 N/A N/A N/A N/A 2050059 2050059
13
PXD Series Operation Manual
