PowerMaster PXD Series User Manual

2. Operation
2.1 OPERATING INSTRUCTIONS :
2.1.1 PREPARATION FOR ARRANGING THE TOOL
1. Place the correct size link on the nut making sure that ratchet socket has fully engaged the nut.
2. Make sure the reaction point is firmly touched along a border or with a projecting part against a stationary object such as an
adjacent nut, flange, equipment housing, etc.
2.1.2 CONNECTING THE TOOL WITH POWERPACK
1. Attach the Drive Cylinder to twin line hoses with the help of quick releasing couplers.
2. Make sure that they are fully engaged and place the safety rings tightly against the spring–loaded retainer rings.
3. Connect the opposite ends of the hose to the power pack in the same manner.
4. Avoid hoses interception between Torque wrench body or reaction members.
5. Remove Link pin out of the Drive Cylinder.
6. Slide drive cylinder on selected Ratchet link by inserting the end of the cylinder between the side plates of the Ratchet Link.
7. Insert the Link Pin threw the side plates and Drive Cylinder to keep the complete unit intact.
8. Apply momentary pressure to the system to ensure proper tool placement.
PXD SERIES LOW PROFILE HYDRAULIC TORQUE WRENCHES
Refer Figure 3

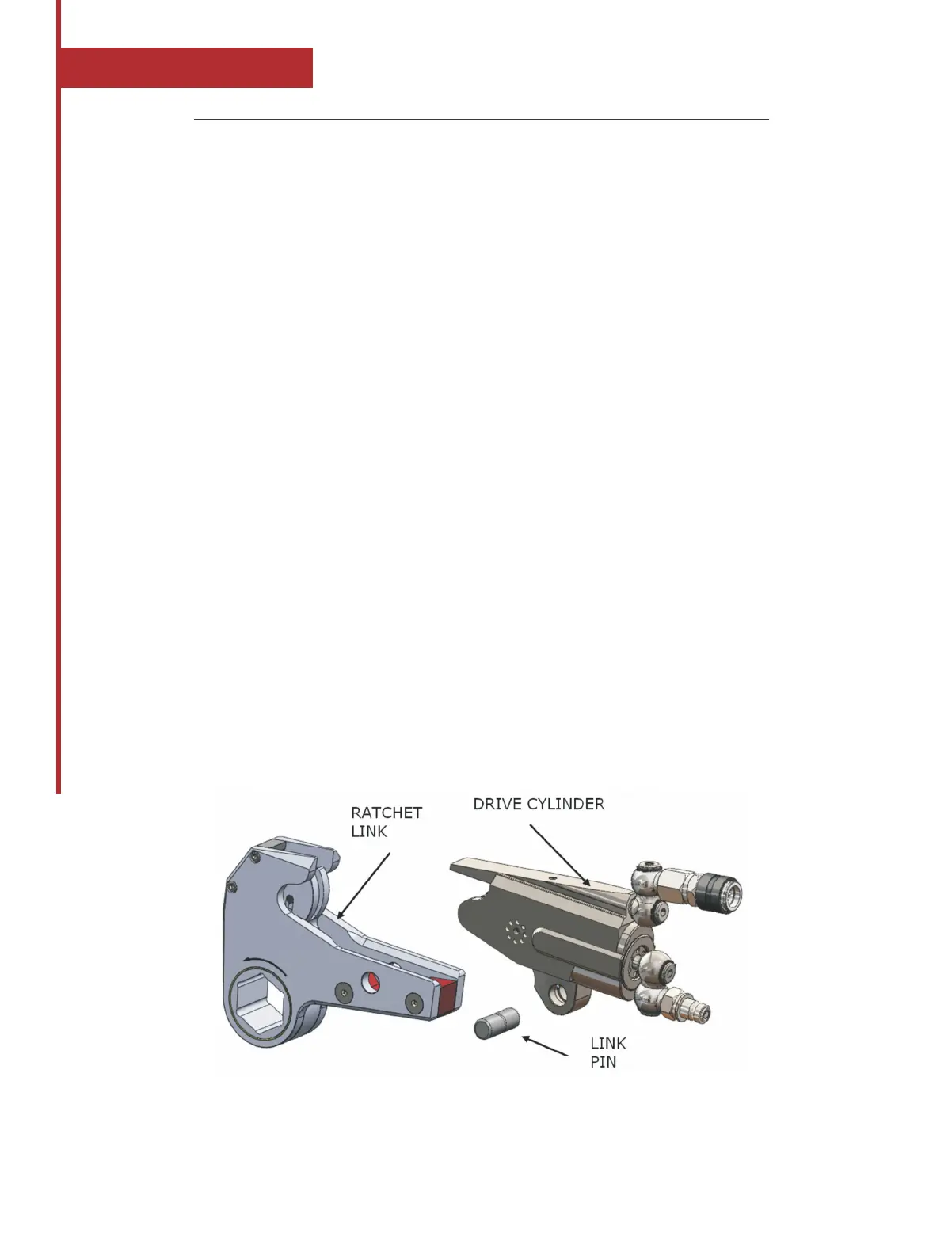

Figure 3 - Link Pin Insertion
