PowerMaster PXD Series User Manual

Model No. PXD-1 PXD-2 PXD-4 PXD-8 PXD-16 PXD-32 PXD-45
Tool Hex mm / inch from 13 / 1/2 19 / ¾ 25 /1 50 / 1.7/8 65 / 2.5/8 80 / 3.1/8 80 /
3.1/8
to 41/1.5/8 60 / 2.3/8 80 / 3.1/8 105 / 4 115 / 4.5/8 165 / 6.1/2 165 / 6.1/2
Min Torque Kg-m (ft/lbs) 6(45) 26 (192) 54 (395) 115 (830) 245 (1560) 445 (3220) 658 (4865)
Max Torque Kg-m (ft/lbs) 77(560) 260 (1928) 540 (3950) 1192 (8630) 2293 (16600) 4924 (35650) 6410(47380)
Output Accuracy +/-3% +/-3% +/-3% +/-3% +/-3% +/-3% +/-3%
Repeatability 100% 100% 100% 100% 100% 100% 100%
Duty Cycle 100% 100% 100% 100% 100% 100% 100%
Corrosion Protection Standard
Cylinder Weight Kg / Lbs 0.50/(1) 1.59 / (3.50) 2.73 / (6.00) 5.32 / (11.70) 7.27 / (16.00) 11.82 / (26.00) 13.70 / (30.20)
Link Weight Kg / Lbs From 0.50/(1) 1.09 / (2.40) 2.45 / (5.40) 5.41 / (11.90) 9.55 / (21.00) 1 3 . 1 8 /
PXD Series Low Profile Hydraulic Torque Wrenches Round Cylinder are designed for installing and removing large bolts having minimal
wrench clearance. These Hydraulic Torque Wrenches used at windmill, offshore platforms, power plants, steel erection sites and other
locations requiring accurate high torque during bolt tightening and also where maximum torque during failure of the bolt.
1.3 SECTIONAL VIEW PXD SERIES LOW PROFILE HYDRAULIC TORQUE WRENCHES:

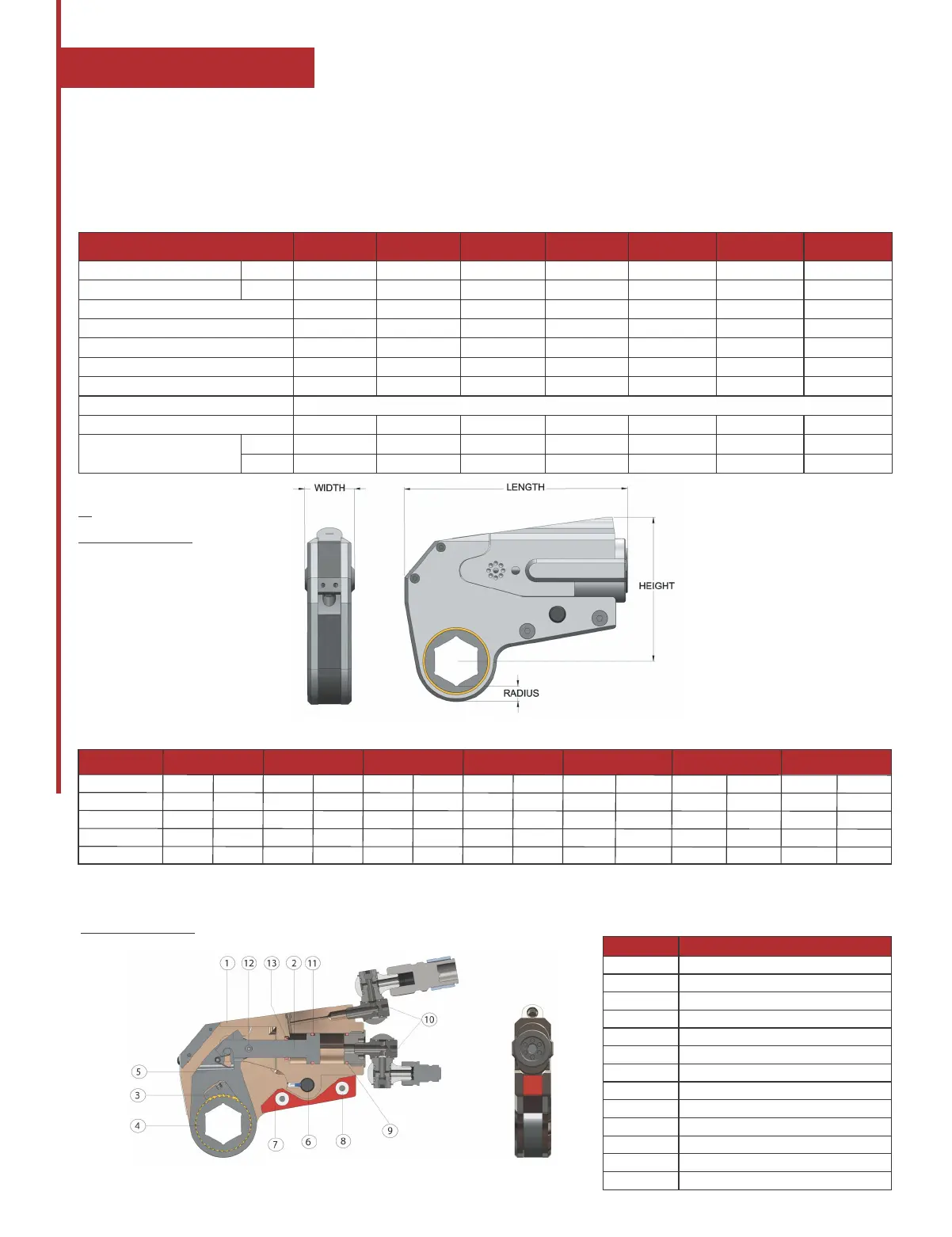

Figure 1 - Dimensions of PXD Series Low Profile Hydraulic Torque Wrench
1.2.1 Refer Figure 1
1.1 TECHNICAL SPECIFICATION:
1.2 DIMENSIONS:
1.3.1 Refer Figure 2
Figure 2 - Sectional View of PXD series Low Profile Hydraulic Torque Wrenches
PXD SERIES LOW PROFILE HYDRAULIC TORQUE WRENCHES ROUND CYLINDER
1. Introduction
Model No.
mm inch mm inch mm inch mm inch mm inch mm inch mm inch
Length 111.00 4.37 167.00 6.57 203.20 8.00 253.00 9.96 330.00 13.00 390.00 15.35 450.00 17.71
Height 82.60 3.25 103.00 4.05 144.00 5.66 179.50 7.06 193.80 7.63 278.00 10.94 278.00 10.94
Width 19.80 0.78 38.00 1.49 50.70 1.99 59.50 2.34 65.00 2.56 84.00 3.30 84.00 3.30
Radius 5.80 0.23 9.30 0.36 11.85 0.46 13.90 0.54 16.80 0.66 23.75 0.94 23.75 0.94
PXD-1 PXD-2 PXD-4 PXD-8 PXD-16 PXD-32 PXD-45
1 Round Shaped Cylinder
2 Engagement Rod
3 Never Lock Drive Segment
4 Multi Tooth Ratchet
5 Single Piece Drive Plate
6 Link Pin
7 In Line Reaction Pad
8 Steel Alignment Pin
9 End Cap ‘O’ Ring
10 360 X 360 swivel
11 PU Piston ‘O’ Ring
12 Slider
13 U-Cap Seal
Sr. No. Part Description
5
