PowerMaster PXD Series User Manual

Table 3 – Part Identification of PXD-1 Series Cylinder
SR. NO.
PART
PXD-1
1 HOUSING PXD1-20-15
2 PISTON BRASS BUSHING PXD1-20-16
3 PISTON ROD ASSEMBLY PXD1-20-0B
PISTON ROD PXD1-20-18
4 PISTON CAP PXD1-20-19
5 VALVE BALL N/A
6 VALVE SPRING N/A
7 WASHER N/A
8 VALVE HOLLOW LOCK N/A
9 SLIDER PXD1-20-23
10 END CAP PXD1-20-24
11 RETAINING RING N/A
12 LINK PIN PXD1-20-25
13 END COVER N/A
14 END COVER SCREWS N/A
15 BALL PLUNGER 2200013
16 SLIDER PIN 02050014
17 END PLUG SEAL 9040031
18 ROD SEAL 9390010
19 PISTON O-RING 9040032
20 SWIVEL (2 req) N/A
SWIVEL (2 req) N/A
21 COUPLER ASSEMBLY HC-S100
22 SEAL INSERTION TOOL N/A
23 END PLUG WRENCH N/A
24 PISTON CAP ROD SEAL N/A

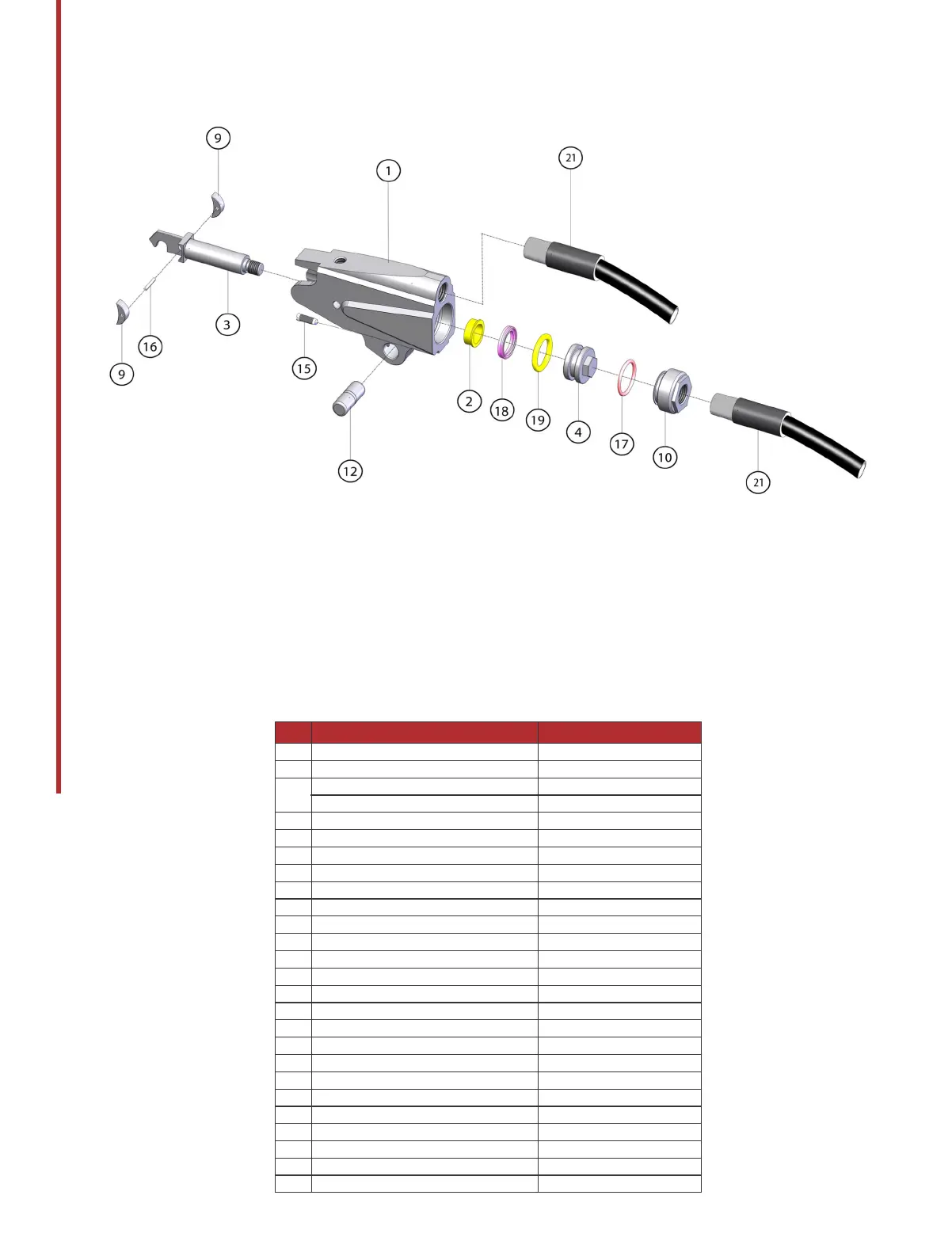

Figure 10 - PXD – 1 Series Cylinder
14
