Table 4 – Part Identification of PXD-2, 4, 8, 16 and 32 Series Round Cylinder
S R. NO.
PART
PXD-2 PXD-4 PXD-8 PXD-16 PXD-32
1 HOUSING PXD2-21-15 PXD4-22-15 PXD8-23-15 PXD16-24-15 PXD32-25-15
2 PISTON BRASS BUSHING N/A PXD4-22-16 PXD8-23-16 PXD16-24-16 PXD32-25-16
3 PISTON ROD ASSEMBLY PXD2-21-0B PXD4-22-0B PXD8-23-0B PXD16-24-16 PXD32-25-0B
PISTON ROD PXD2-21-18 PXD4-22-18 PXD8-23-18 PXD16-24-18 PXD32-25-18
4 PISTON CAP N/A N/A N/A PXD16-24-19 PXD32-25-19
5 VALVE BALL N/A N/A N/A 2140006 2140006
6 VALVE SPRING N/A N/A N/A PXD16-24-21 PXD32-25-21
7 WASHER N/A N/A N/A N/A 01310007
8 VALVE HOLLOW LOCK N/A N/A N/A PXD16-24-22 PXD32-25-22
9 SLIDER PXD2-21-23 PXD4-22-23 PXD8-23-23 PXD16-24-23 PXD32-25-23
10 END CAP PXD2-21-24 PXD4-22-24 PXD8-23-24 PXD16-24-24 PXD32-25-24
11 RETAINING RING N/A N/A N/A N/A N/A
12 LINK PIN PXD2-21-25 PXD4-22-25 PXD8-23-25 PXD16-24-25 PXD32-25-25
13 END COVER N/A N/A N/A N/A N/A
14 END COVER SCREWS N/A N/A N/A N/A N/A
15 BALL PLUNGER 2200007 2200008 2200009 2200010 2200011
16 SLIDER PIN 2050076 2050095 2050126 2050151 2020145
17 END PLUG SEAL 9040021 9040020 9040023 9040025 9040027
18 ROD SEAL 9390003 9390004 9390005 9390006 9390007
19 PISTON O-RING 9040019 9040022 9040024 9040026 9040028
20 SWIVEL (2 req) N/A PXD-4M-4M PXD-4M-4M PXD-4M-4M PXD-4M-4M
SWIVEL (2 req) PXD-4M-8M N/A N/A N/A N/A
21 COUPLER ASSEMBLY HC-S100 HC-S100 HC-S100 HC-S100 HC-S100
22 SEAL INSERTION TOOL N/A N/A N/A N/A N/A
23 END PLUG WRENCH PXD-2-EPW PXD-4-EPW PXD-8-EPW PXD-16-EPW PXD-32-EPW

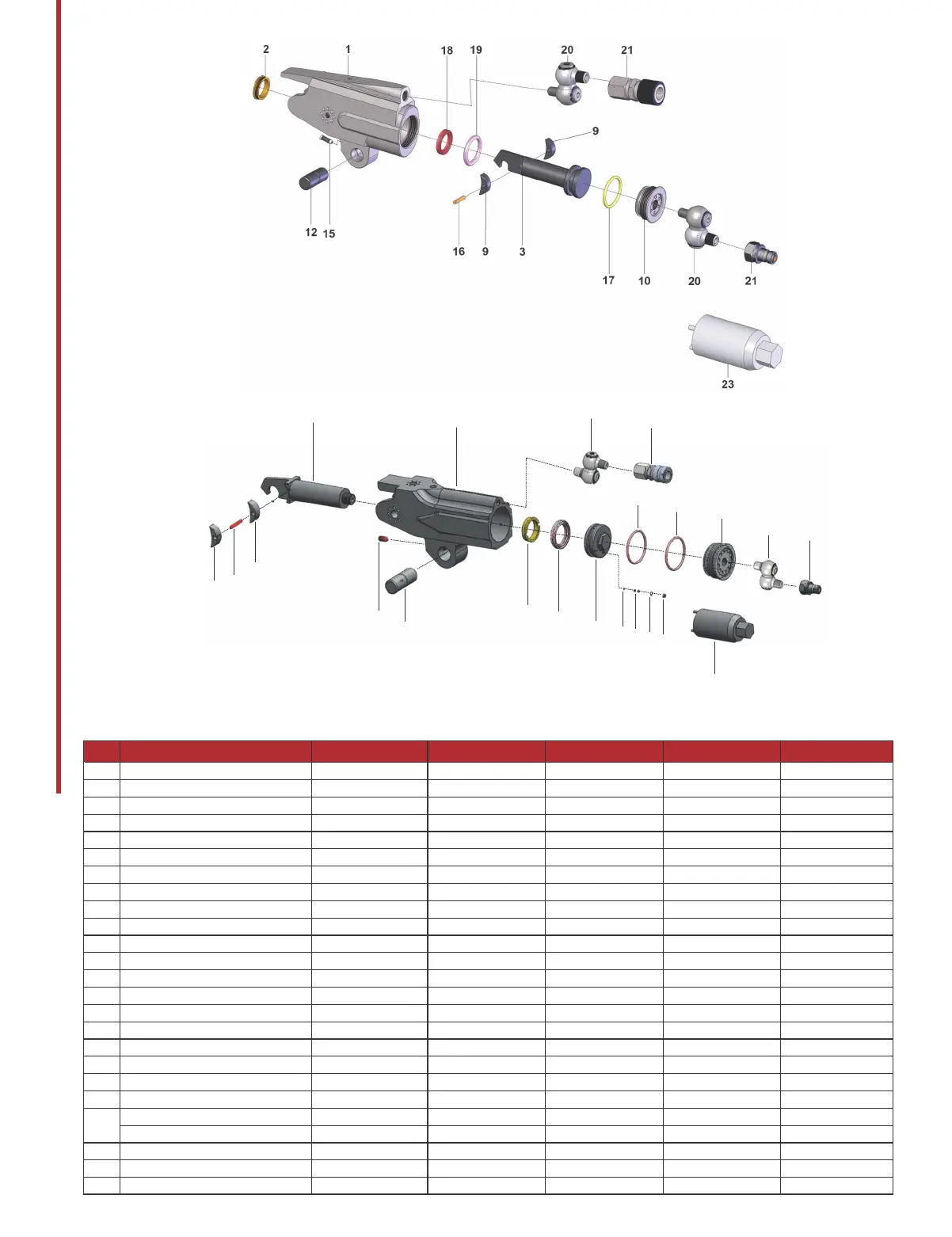

Figure 12 - PXD – 16 and 32 Series Cylinder
9
16
9
15
12
2
18
4
5
6
7
8
23
21
20
10
17
19
21
20
1
3
Figure 11 - PXD – 2, 4, 8 Series Round Cylinder
15
PXD Series Operation Manual
