PowerMaster PXD Series User Manual

Table 5 – Part Identification of PXD-45 Series Cylinder
S R. NO.
PART
PXD-45
1 HOUSING PXD45-26-15
2 PISTON BRASS BUSHING PXD45-26-16
3 PISTON ROD ASSEMBLY PXD45-26-0B
PISTON ROD PXD45-26-18
4 PISTON CAP PXD45-26-19
5 VALVE BALL 2140006
6 VALVE SPRING PXD45-26-21
7 WASHER 01310007
8 VALVE HOLLOW LOCK PXD45-26-22
9 SLIDER PXD45-26-23
10 END CAP PXD45-26-24
11 RETAINING RING N/A
12 LINK PIN PXD45-26-25
13 END COVER N/A
14 END COVER SCREWS N/A
15 BALL PLUNGER 2200012
16 SLIDER PIN 2020145
17 END PLUG SEAL 9040029
18 ROD SEAL 9390008
19 PISTON O-RING 9040030
20 SWIVEL (2 req) PXD-4M-4M
SWIVEL (2 req) N/A
21 COUPLER ASSEMBLY HC-S100
22 SEAL INSERTION TOOL N/A
23 END PLUG WRENCH PXD-45-EPW
24 PISTON CAP ROD SEAL 9390009

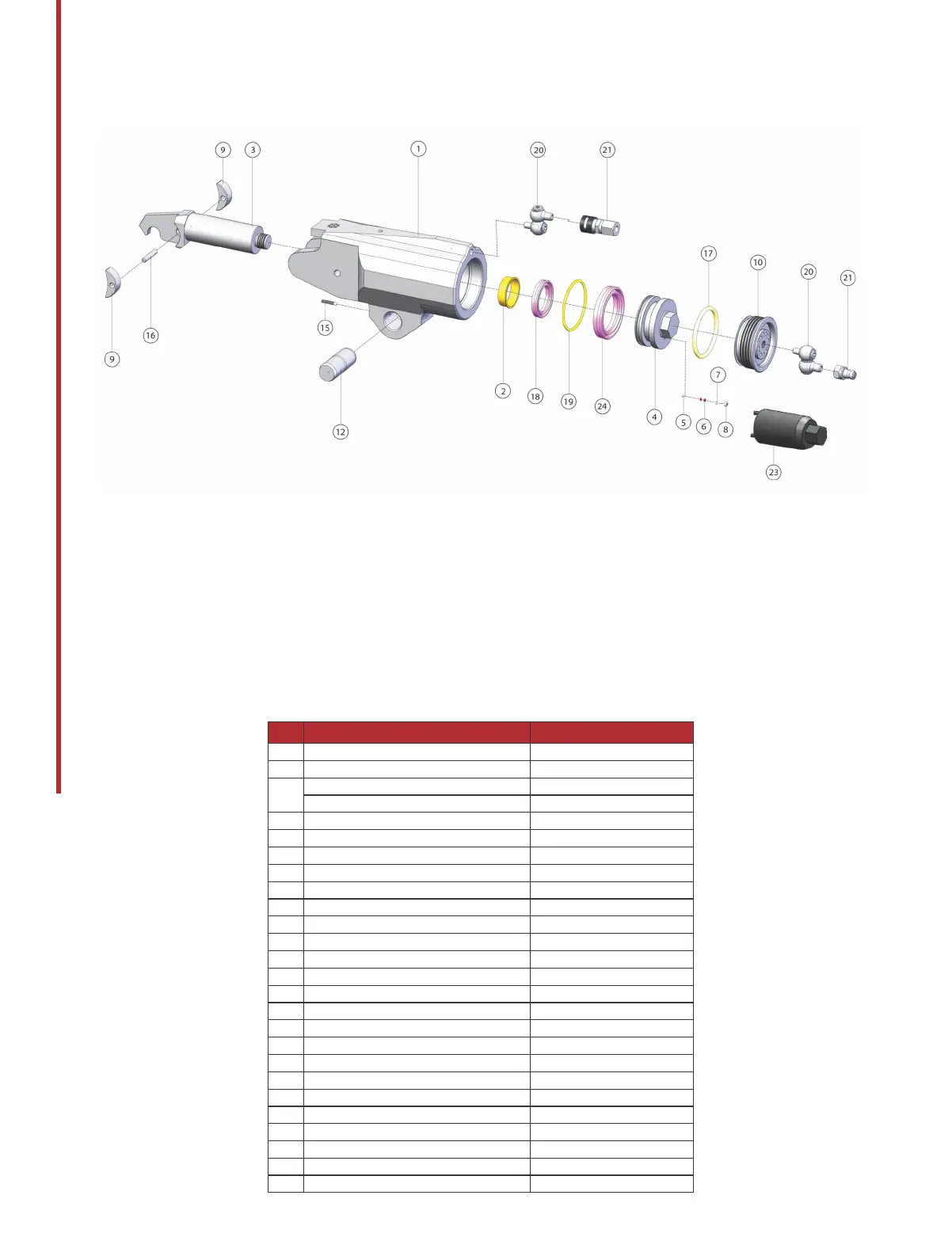

Figure 13 - PXD – 45 Series Cylinder
16
PXD Series Operation Manual
