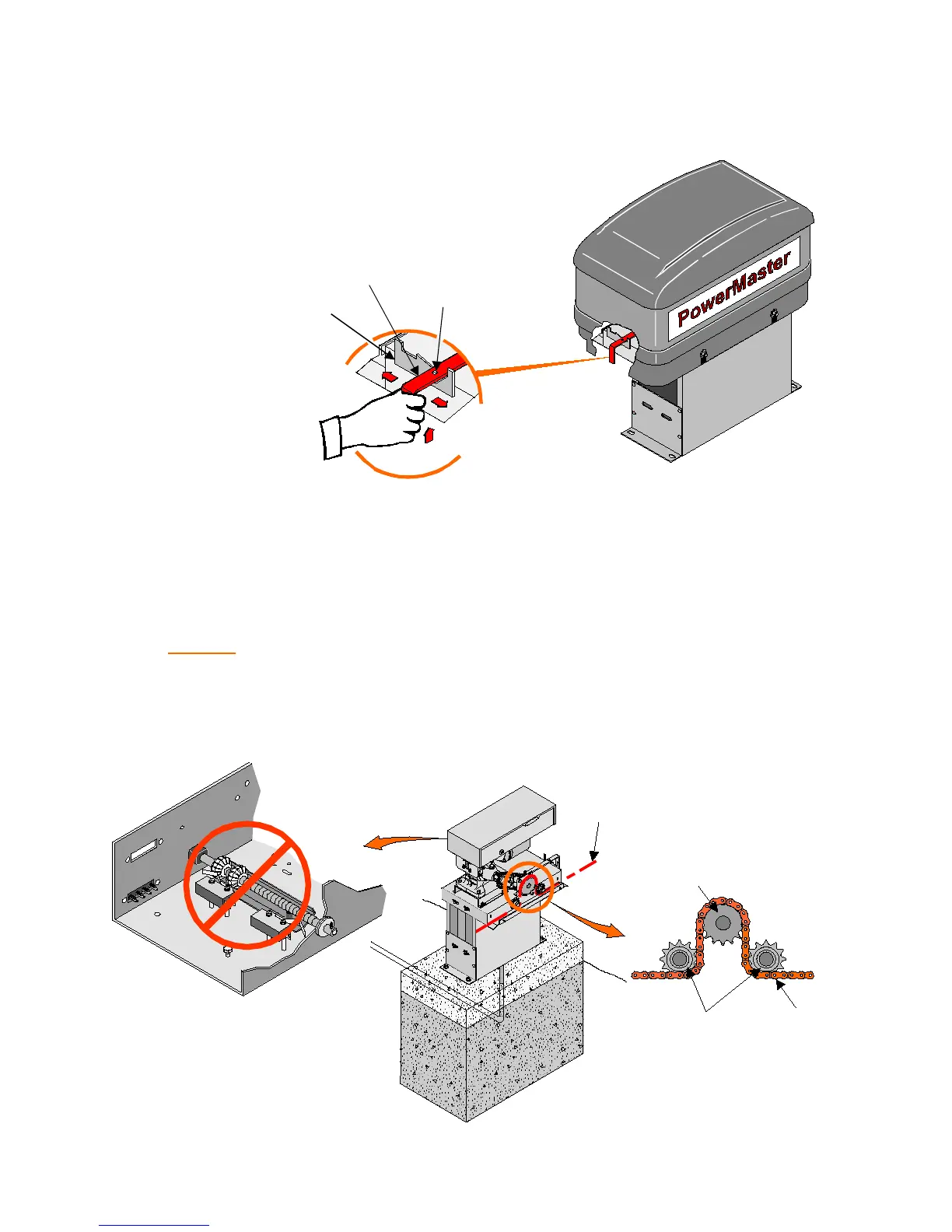

5. Disengage operator by moving the red disconnect lever (Located
on the operator base at the opposite end from the motor) to the
disconnect position, and latch in place.
6
. Thread free end of chain under first idler sprocket, up and over
drive sprocket, then under the second idler sprocket.
NOTE: When pulling chain through operator sprockets, the limit nuts
in the electric box can be driven passed their normal position. Reset
the limit nuts as necessary.
Drive
Sprocket
Idler
sprockets
Drive
Chain
Drive
Chain
To Re-Engage Drive:
Lift Lever To Unlatch,
Then Move Lever To
The Right.
To Disconnect Drive:
Move Lever To The Left Until
It Latches In Retaining
Bracket.
Padlock
Option Hole
Retaining
Bracket
Disconnect
Lever
To Next Page
