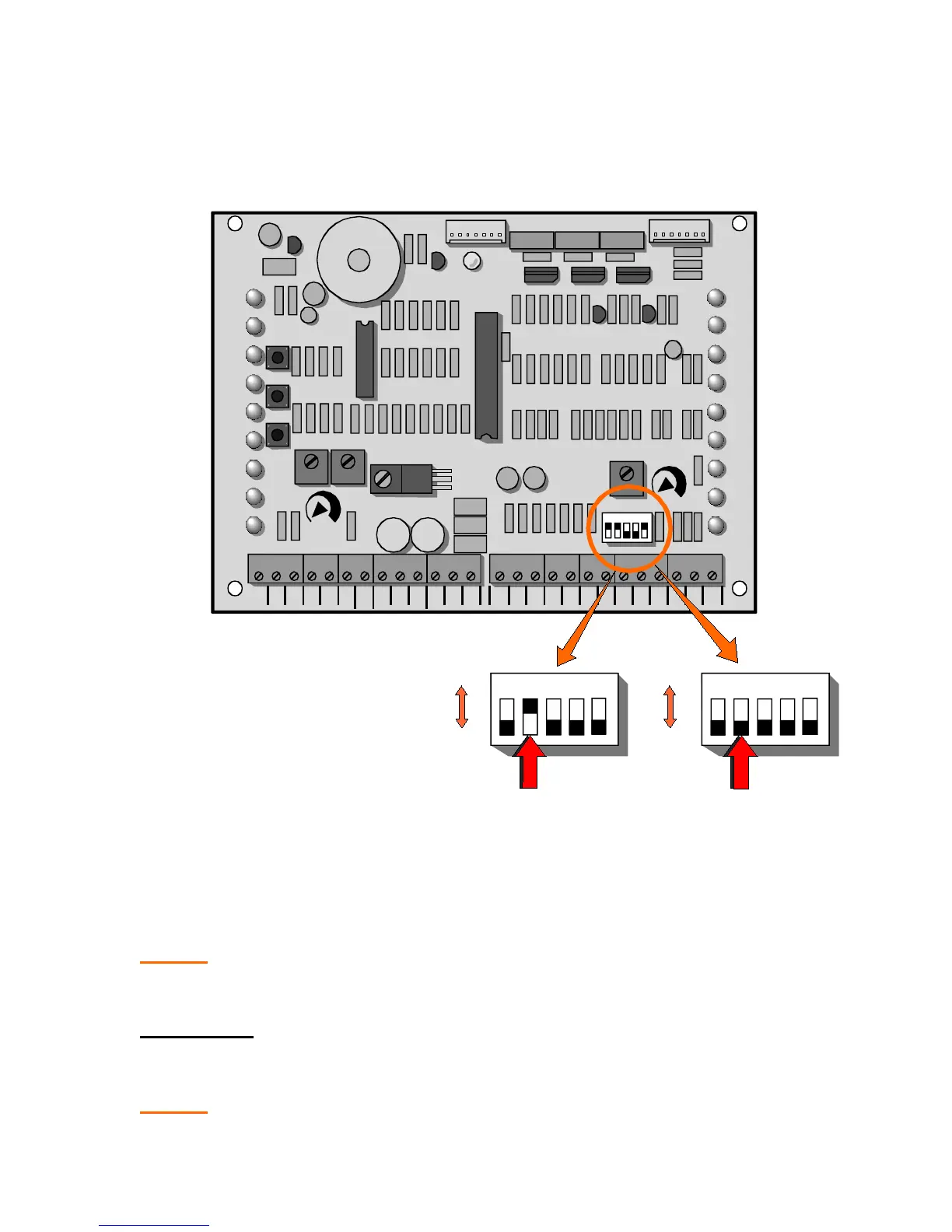

3. Check that Dipswitch #2 is in the correct position for left or right hand
operation as determined by the location of the gate opener, when
viewed from inside the fenced area.
1 2
3
4
5
ON
OFF
1 2
3
4
5
ON
OFF
Place Dipswitch #2
In "ON" Position For Left
Hand Operation And
"OFF" Position For Right
Hand Operation.
Left Hand
Operation
Right Hand
Operation
COM
COM
C
OM
24V
AC
24V
AC
ALT RDO OPN CRO
FRE
OPN CLO STO COM COM COM OPN PHO CLO PHO SHW
REV
OPN EDG CLO EDG
MST OPN
MST CLO COM COM COM
OPEN
PUSH
FREE
EXT
ALT
RADIO
OPN/
CLO
RADIO
OPEN
CLOSE
PUSH
STOP
PUSH
CLOSE
OPEN
LD18
LD10
LD11
LD12
LD15
LD14
LD16
LD17
LD13
OPEN
CLOSE
STOP
OPEN CLOSE
FORCE
ADJUSTMENT
AUTO
RECLOSE
TIMER
OFF MAX
MID
LIMIT
REV
LOOP
OPN
EDGE
CLO
EDGE
RH OPN
LH CLO
LIMIT
RH CLO
LH OPN
LIMIT
MOTOR
OPEN
MOTOR
CLOSE
SHADOW
LOOP
LD19
LD2
LD3
LD4
LD5
LD6
LD8
LD9
LD7
1 2 3 4 5
POWER
LD1
P3
P4
TB1
TB2
U1
U2
U4
4. Turn on power, and re-engage operator with manual disconnect
lever.
NOTE: Operator will not run if manual disconnect lever is in the
disengaged position.
▲ WARNING: STAY CLEAR OF ALL MOVING PARTS AND
ELECTRICAL COMPONENTS OF THE OPERATOR WHILE TESTING!
NOTE: The first time the gate operator is run after the power is turned
on; a 3 second warning will sound before the operator starts.

PowerMaster SG 2004 Specifications

General

Brand	PowerMaster
Model	SG 2004
Category	Gate Opener
Language	English
