NON-CONTACT SENSOR INSTALLATION
1. Install photoelectric cell as close to inside of gate as possible.
2
. Photocells should be installed across the gate opening and behind
the gate (as shown below) at least 10 inches above ground.
NOTE: A separate pedestrian gate must be installed if there is no
other entry access but the vehicular gate.

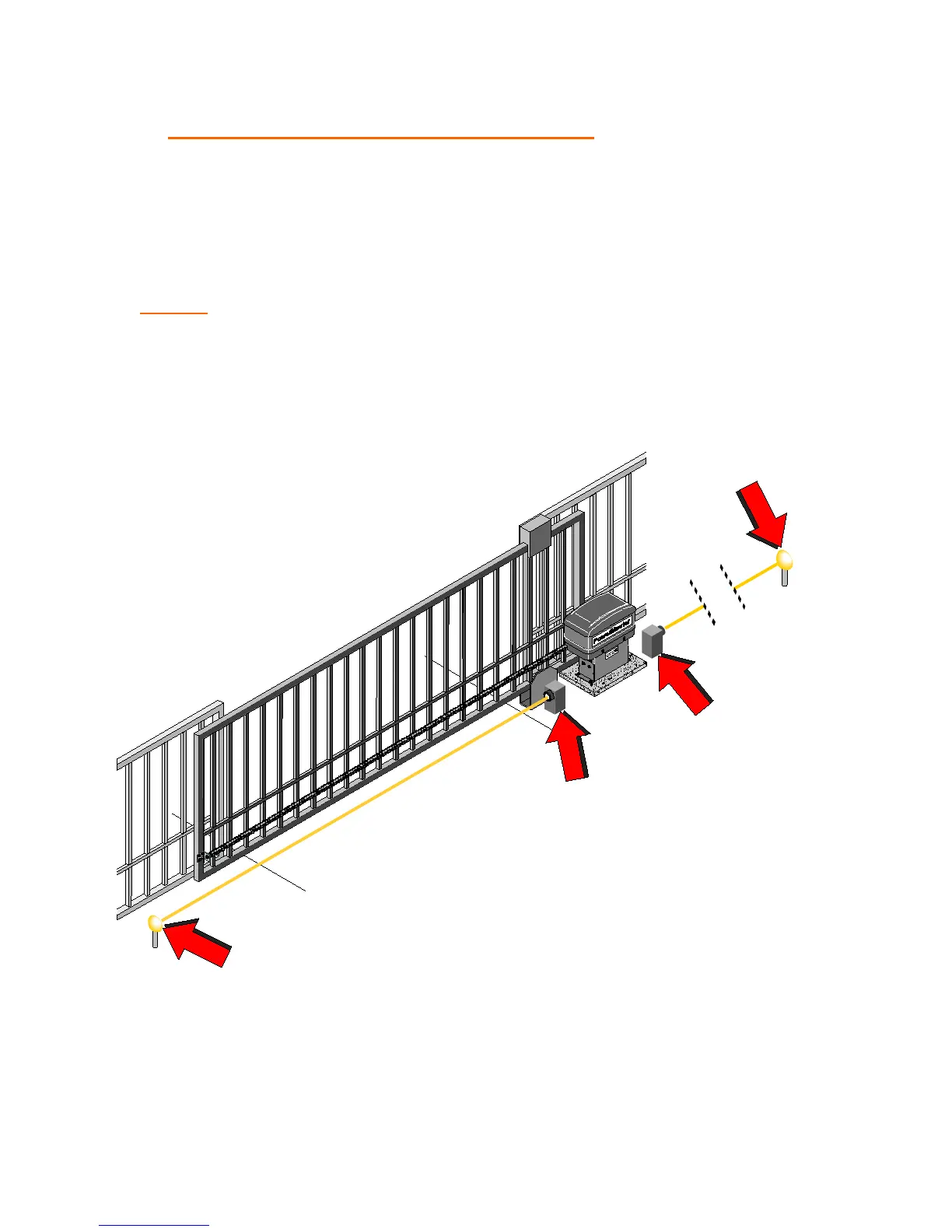

Photo Electric Reflector
(Mount Past Gates Full
Close Position )
Photo Electric Cell
(For Close Direction)
Photo Electric Reflector
(Mount Past Gates Full
Open Position)
Photo Electric Cell
( For Open Direction)
To Next Page
