PowerMaster SL Series - Hanger Layout - Figure 8,9

INSTALLATION INSTRUCTIONS
12
DOOR OPENING9"

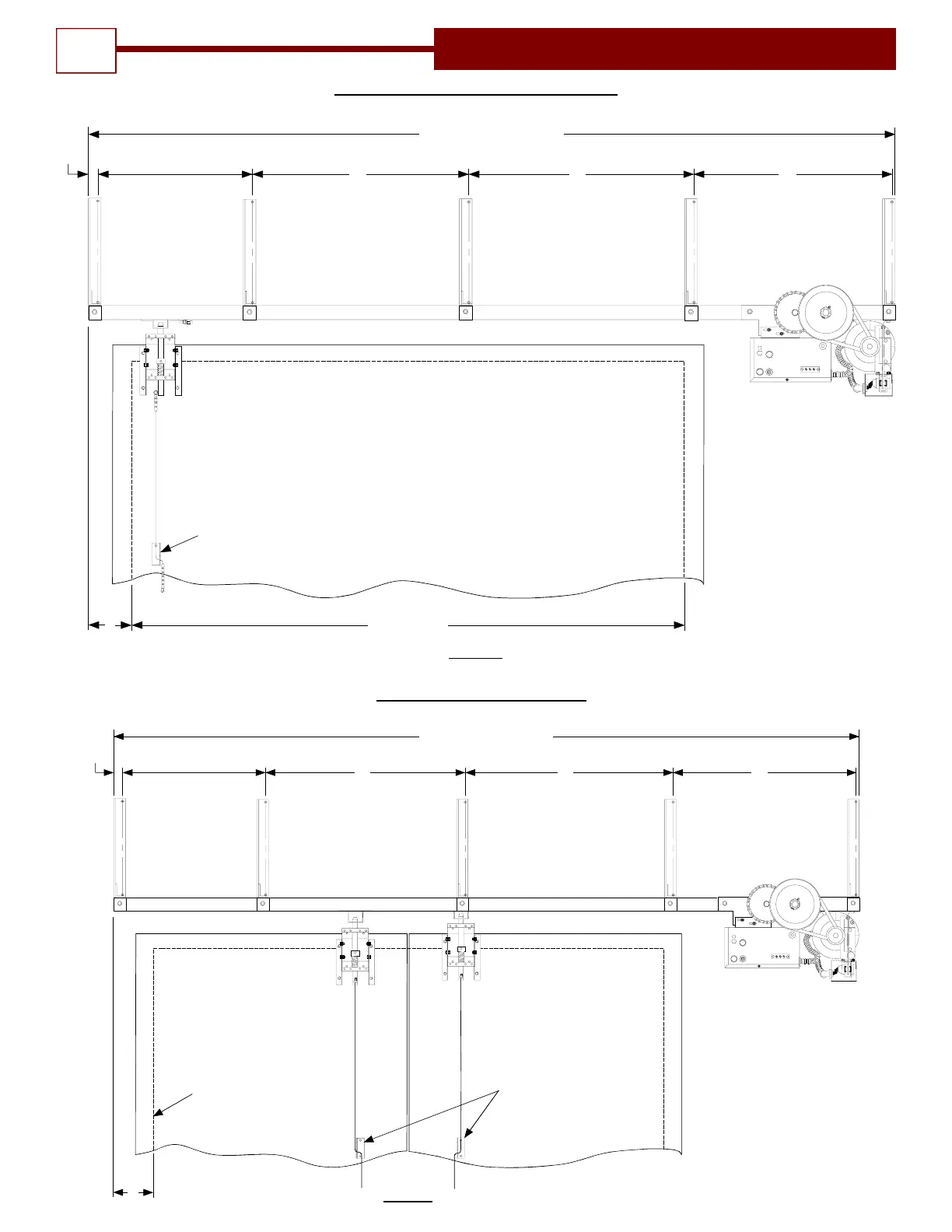

HANGER LAYOUT RIGHT HAND OPERATOR
32-1/2" FOR 10' & 14' TRACK
56-1/2" FOR 8', 12', & 16' TRACK
48"
(ALL CENTER SPACERS)
46"48"
(ALL CENTER SPACERS)
1-1/4"
DOOR WIDTH PLUS 4'-8" (REF)
DISCONNECT
CHAIN LOCK
FIGURE 8
15"
BI- PART INSTALLATION
DOOR OPENING
32-1/2" FOR 10' & 14' TRACK
56-1/2" FOR 8', 12', & 16' TRACK
48"
(ALL CENTER SPACERS)
46"48"
(ALL CENTER SPACERS)
1-1/4"
DOOR WIDTH PLUS 4'-8" (REF)
DISCONNECT
CHAIN LOCK
FIGURE 9
