PowerMaster SL Series - Rail;Chain Assembly Instructions - Figure 2, 2 A

6
Track Assembly

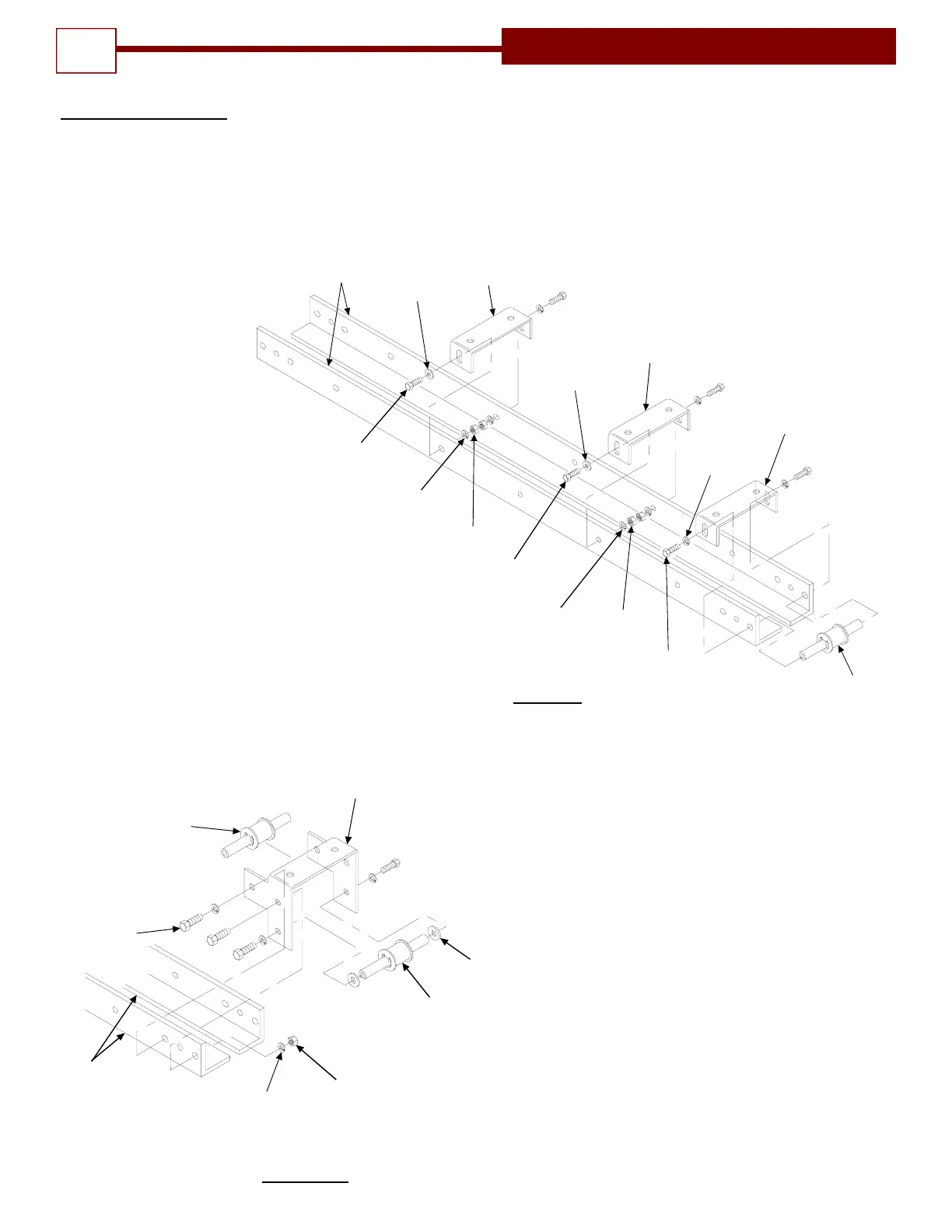

1. Lay Track Angles (1) on work surface as shown in Figure #2.
2. Install track spreader brackets (2) and Front Idler Roller Assembly (3) on track using 3/8 x ¾ long
hex head bolts and 3/8 lock washers, as shown in Figure #2.
RAIL/CHAIN ASSEMBLY
3/8"
HEX NUTS
SPREADER
BRACKET
-2
SPREADER
BRACKET
-2
3/8"
WASHERS
-3
IDLER ROLLER
ASSEMBLY
3/8"
LOCK
WASHERS
3/8 X 3/4"
LG. HEX HEAD
BOLTS
SPREADER
BRACKET
-2
3/8"
WASHERS
3/8"
HEX NUTS
3/8 X 3/4"
LG. HEX HEAD
BOLTS
3/8 X 3/4"
LG. HEX HEAD
BOLTS
3/8"
LOCK
WASHERS
3/8"
LOCK
WASHERS
TRACK
ANGLE
-1
FIGURE 2
(6) 3/8 X 3/4"
LG. HEX HEAD
BOLTS
(2) 3/8"
HEX NUTS
(6) 3/8"
LOCK
WASHERS
BI- PART FRONT
SPREADER ASSEMBLY
TRACK
ANGLE
-1
BI- PART FRONT
IDLER BRACKET
-16
(2) 3/8"
WASHERS
IDLER ROLLER
ASSEMBLY
-3
-3
IDLER ROLLER
ASSEMBLY
FIGURE 2A
