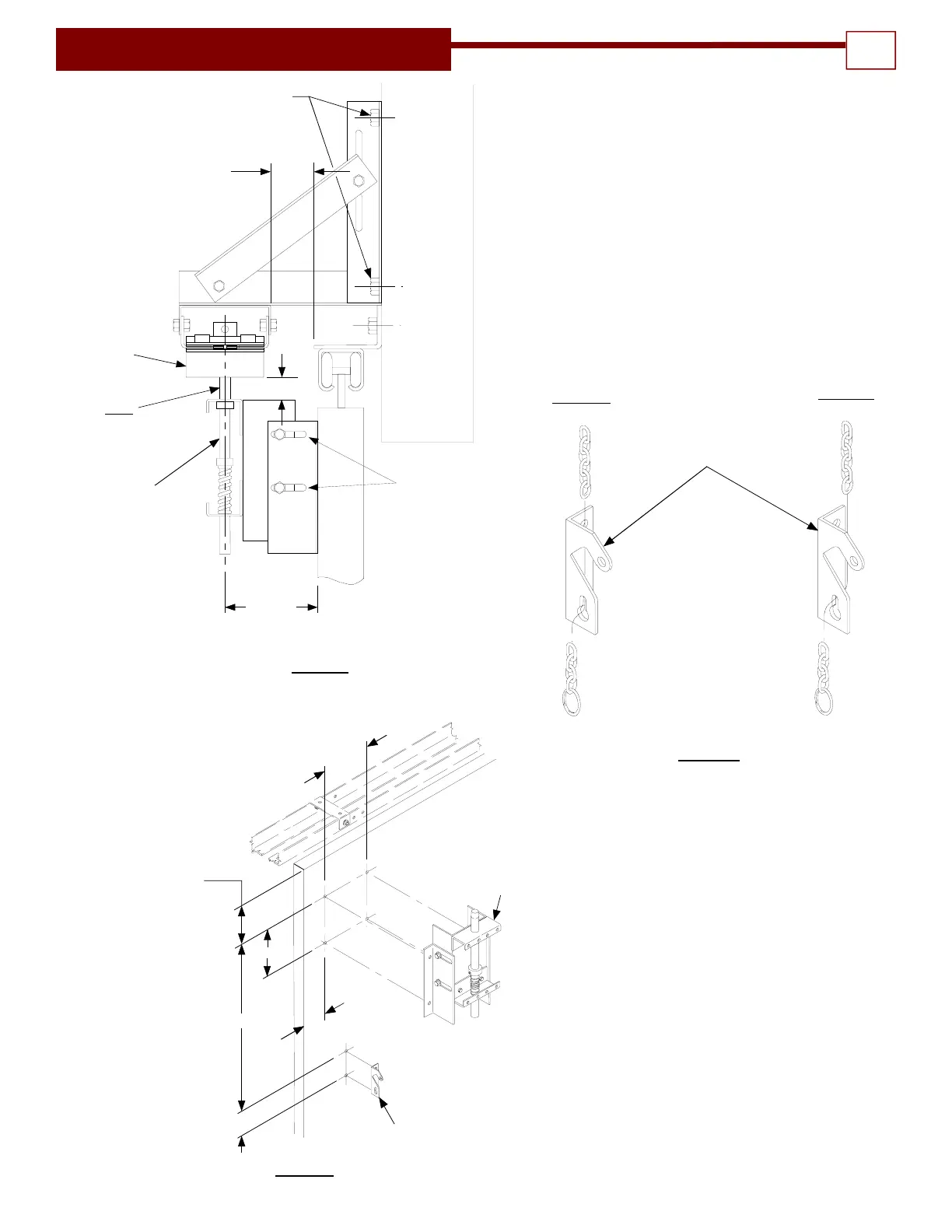

PowerMaster SL Series - Mounting Disconnect Assembly - Figure 10,11,12

INSTALLATION INSTRUCTIONS
13
4-1/4" MIN.
6-1/4" MAX.
(AVAILABLE
ADJUSTMENT)
2" MAX.
KEEP AS NARROW
AS POSSIBLE TO
REDUCE SWAY
SUITABLE FASTENERS
BY INSTALLER
NOTE:
DISCONNECT SHAFT MUST
CLEAR TROLLEY TRAVELER
WHEN FULLY RETRACTED.
TROLLEY SLIDE
ASSEMBLY
DISCONNECT
DRIVE PLUNGER
ADJUST HEIGHT OF
DISCONNECT ASSEMBLY
TO CENTER DRIVE PLUNGER
IN TROLLEY SLIDE ASSEMBLY
FIGURE 10
5-1/2"
AS REQIRED
2" MIN.
4" MAX.
DISCONNECT
CHAIN LOCK
DISCONNECT
ASSEMBLY
6-3/4"
2-1/2"
THIS DIMENSION IS
DETERMINED BY ENGAGING
DRIVE PLUNGER ON
DISCONNECT ASSEMBLY, WITH
TROLLEY SLIDE ASSEMBLY.
(SEE FIGURE )
FIGURE 11
POSITION 1
DOOR ENGAGED
POSITION 2
DOOR DISENGAGED
FOR MANUAL OPERATION,
PULL CHAIN AND LATCH.
DISCONNECT
CHAIN LOCK
FIGURE 12
