Maintenance (Continued)
• Save all instructions
Lubrication
B
Add a small amount of engine oil to lubricate parts and
pivot points. Refer to “Periodic Maintenance Schedule
Table” for time intervals to lubricate parts.
How to Change the Engine Oil
C
NOTE: Refer to Figure 10 when following the steps below:
1. Stop the engine and let it cool.
2. Disconnect spark plug wire from the spark plug.
3. Raise the front of the unit, by lowering the height of the
front wheel. Refer to ”How to Edge Along a Curb”.
4. Insert a flat pan under the edger, underneath the oil
drain plug and frame hole.
5. Remove oil dipstick. (See Figure 3)
6. Remove the oil drain bolt and washer.
7. Allow all oil to drain through the frame hole into the pan.
IMPORTANT: Used oil is a hazardous waste. Place oil in a
sealed container and take to your local recycling center. Do
NOT discard with household waste.
8. Replace and tighten the oil drain plug and washer.
9. To re-fill engine with oil, see engine preparation section
“How to Check Oil and Fill to Proper Level”.
How to Replace the Belt
D
IMPORTANT: Only use a replacement belt from the manufacturer.
To order spare parts call us at 1-800-737-2112.
1. Disconnect the spark plug wire from the spark plug.
2. To ease the replacement of a belt, remove the control rod
(See Figure 2). This will allow the quill arm to rotate back
creating slack in the belt.
3. Remove the two rear guard bolts to remove the engine
pulley cover. (See Figure 11)
Drain Plug and Washer
Spacer
Engine Pulley
Engine Pulley
Cover
Rear Guard
Bolts

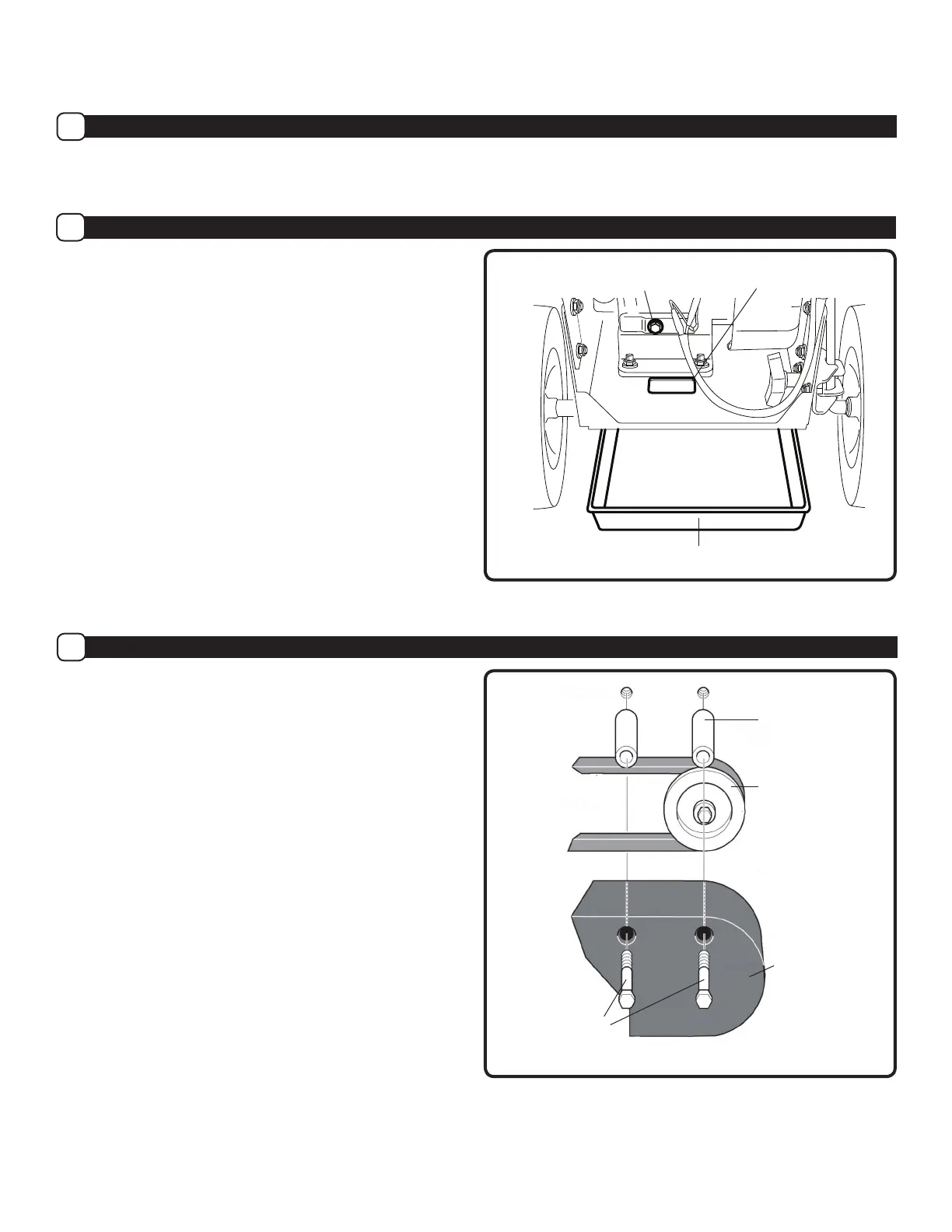

Figure 10
Figure 11
Frame Hole
Pan
To Next Page
