Assembly (Continued)
• Save all instructions

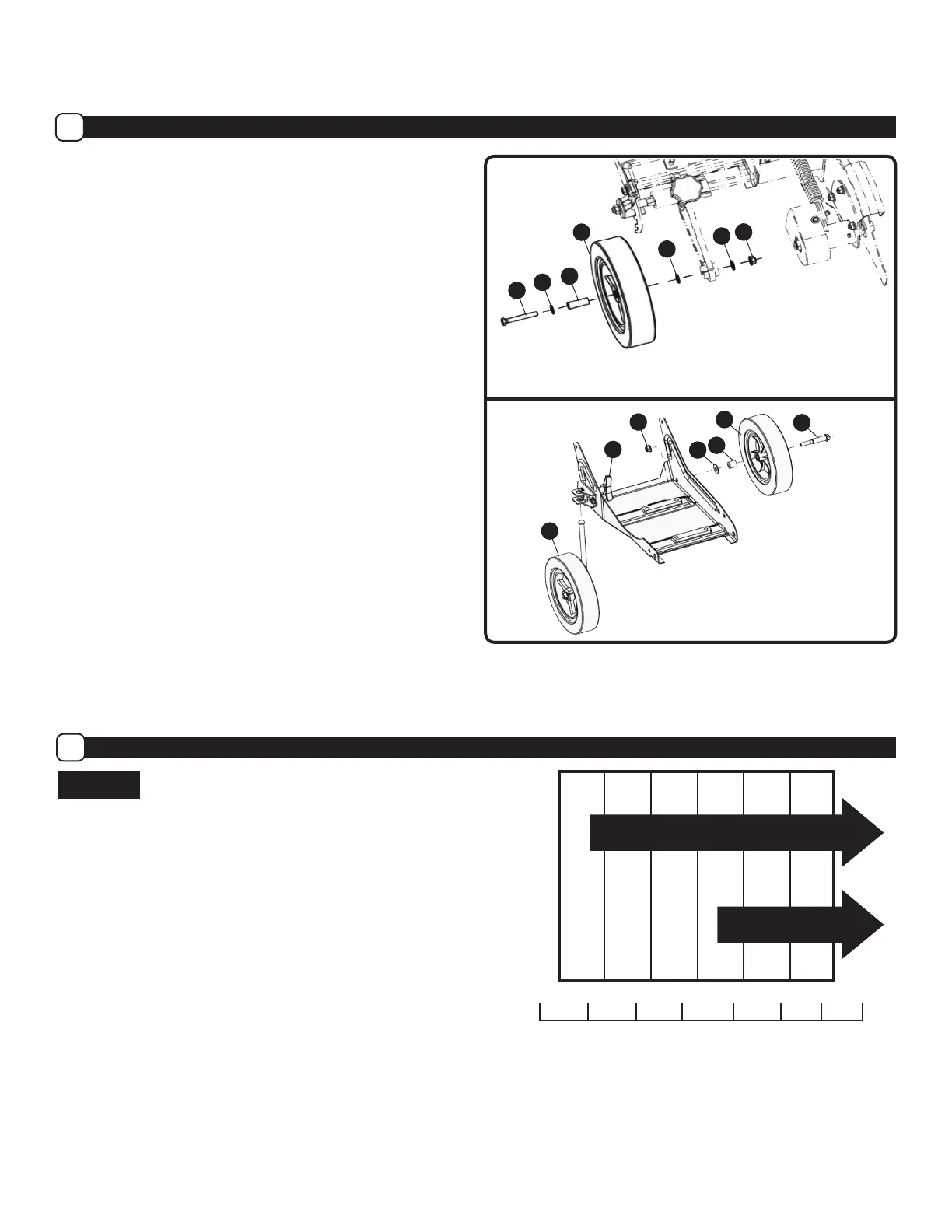

How to Assemble the Wheels
C
1. Right Rear Wheel assembly
a. Loosen Knob (6)
b. Using the wheel and rod assembly (11) insert rod
through bracket, adjust to desired position.
c. Tighten Knob (6)
2. Left Rear Wheel
a. Install using Shoulder bolt (7), Wheel (4),
Sleeve (8), Washer (9)
b. Secure with M10 flanged nut (10)
3. Front Wheel
a. Install on Right side of front arm using Bolt (1), M8
washer (2), sleeve (3) Wheel (4), and washer (t2).
b. Secure with washer (2) and M8 nut (5).
Engine Preparation
• Save all instructions
Engine Oil
A
Engine shipped without oil. Failure to add oil will result in
serious engine damage.
A bottle of engine oil is included with your edger. Refer
to the chart on the right for alternative oil types to use at
different temperatures. Always use a high quality detergent
oil classified “For Service, SG, SH, SJ” or higher. Do not
use special additives.
Always use recommended oil type. Using dirty oil or
incorrect oil type such as 2-stroke engine oil will shorten
engine life.
NOTE: Engine Oil Capacity is 355 ml (12 oz.).
SAE
TEMP
100° F
40° C
-20
-20-30 -10
0
0
20
2010
40
60 80
30
Ambient Service Temperature
SAE 10W-30
SAE 30
NOTICE
1
2
2
2
5
11
10
6
9
8
4
7
3
4
Front Wheel Assembly
Rear Wheel Assembly
To Next Page
