Questions? Call Toll Free at 1-800-737-2112 Copyright © 2019 MAT Engine Technologies, LLC
EN - 6
Edger Specifications
• Save all instructions
Unit Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 lb. (27kg)
Cutting Depths . . . . . . . . . . . . . . . . . . . 0-2.5 in. (0-63 mm)
Blade Diameter. . . . . . . . . . . . . . . . 9 in. (228 mm), 3 point
Gasoline Type ..... Regular Unleaded / 87 Octane (min.)
Gasoline Capacity . . . . . . . . . . . . . . . . . . . . . 1.7 qt. (1.6L)
Oil Type (API SG-SL) . . . . . . . . . . 10W-30 is recommended
for all service temperatures.
See page 7 for additional information.
Oil Capacity . . . . . . . . . . . . . . . . . . . . . . . . . 12 oz (355 ml)
Spark Plug Model. . . . . . . . . . . . . . . . . . . . . . Torch E7RTC
Spark Plug Gap . . . . . . . . . . . 0.024-0.028 in. (0.6-0.7 mm)
Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . 4 Stroke OHV
Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79cc
RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3600 RPM
Torque Rating.......... 3.1 ft-lbs torque per SAE J1940
Bore Diam. x Stroke. . . . . . . . 2.03X1.50 in. (51.6X38 mm)
Intake Valve Clearance . 0.0079-0.0098 in.(0.20-0.25 mm)
Exhaust Valve Clearance . 0.0098-0.012 in.(0.25-0.30mm)
Angle of Ignition . . . . . . . . . . . . . . . . . . . . . . . . 25 Degrees
Parts & Features
1. Start Lever - Lever on handle which allows the engine to
run. When lever is released, engine will stop.
2. Choke Control - Restricts the air intake. This allows
for an enriched fuel-air mixture which helps to start
the engine.
3. Muffler - Location of engine exhaust.
4. Adjustable Rear Wheel -
Right rear wheel is adjustable to
level the edger when edging along a curb (curb-hopping).
5. Adjustable Front Wheel - Front wheel is adjustable from
side to side for balance. The front wheel can also adjust
down for curb-hopping.
6. Recoil Starter Handle - The engine is equipped with an
easy pull recoil starter.
7. Index Lever - Permits adjusting the cutting angle to 15
degrees, 0 degrees (vertical), or -15 degrees. To change
the angle, pull the index lever and rotate the quill
assembly to the desired angle.
8. Blade - Rotating cutting element.
9. Blade Guard - Prevents stones and debris from being
thrown at the operator.
10. Spark Plug/Spark Plug Wire -
Provides spark to ignite
air/fuel mixture. The Spark Plug Wire must be disconnected
and moved away from the Spark Plug when servicing
the unit.
11. Air Filter - Removes debris and contaminates from
intake air, allowing engine to run smoothly with
low exhaust.
12. Depth Selector Plate
13. Depth Control Lever
14. Control Rod - Used to control the edging depth of cut.
15. Ground Wire Terminals - Must be connected for the
Start Lever to function.

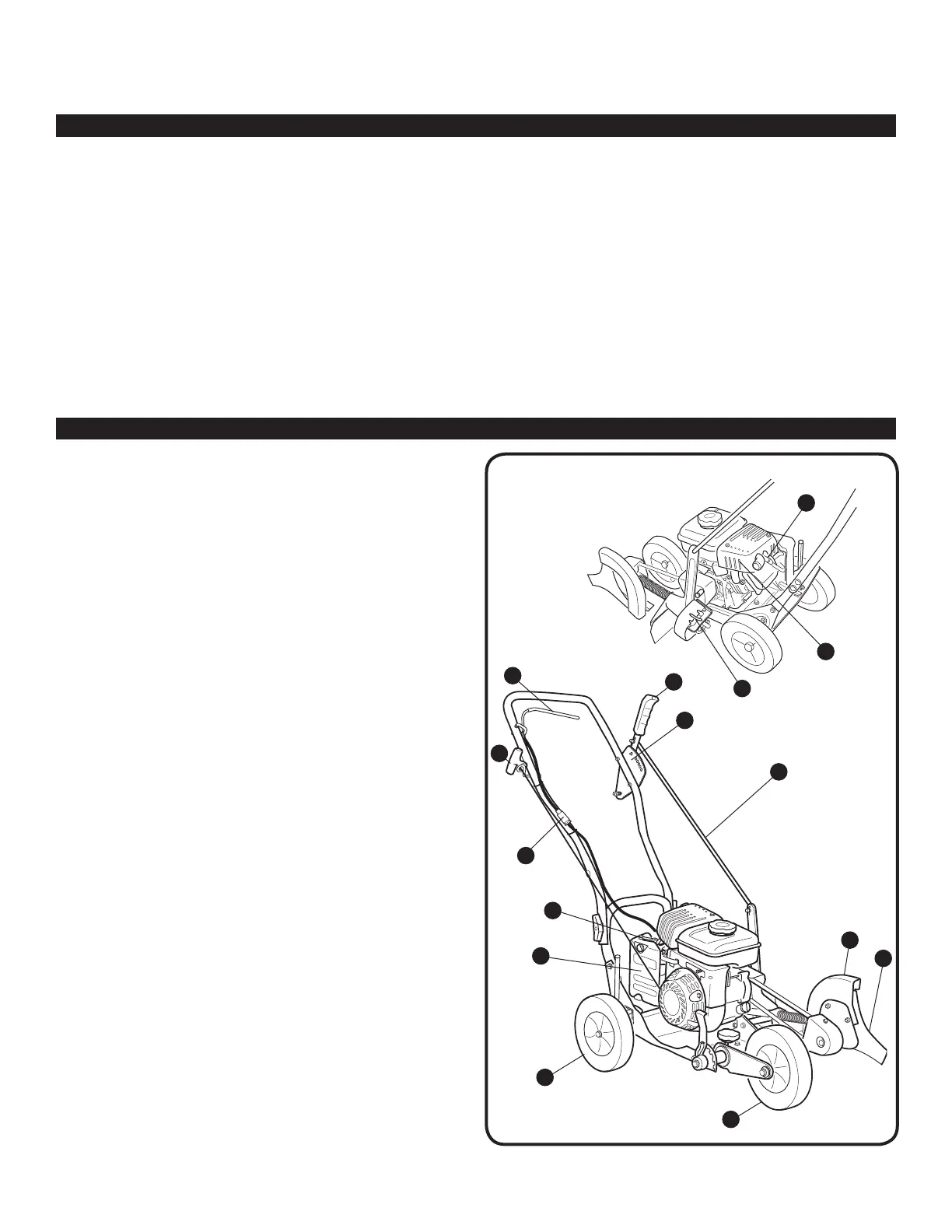

Figure 1
Rear View
Front View
7
6
1
13
12
14
3
10
2
11
4
5
9
8
15
