4 - ENG

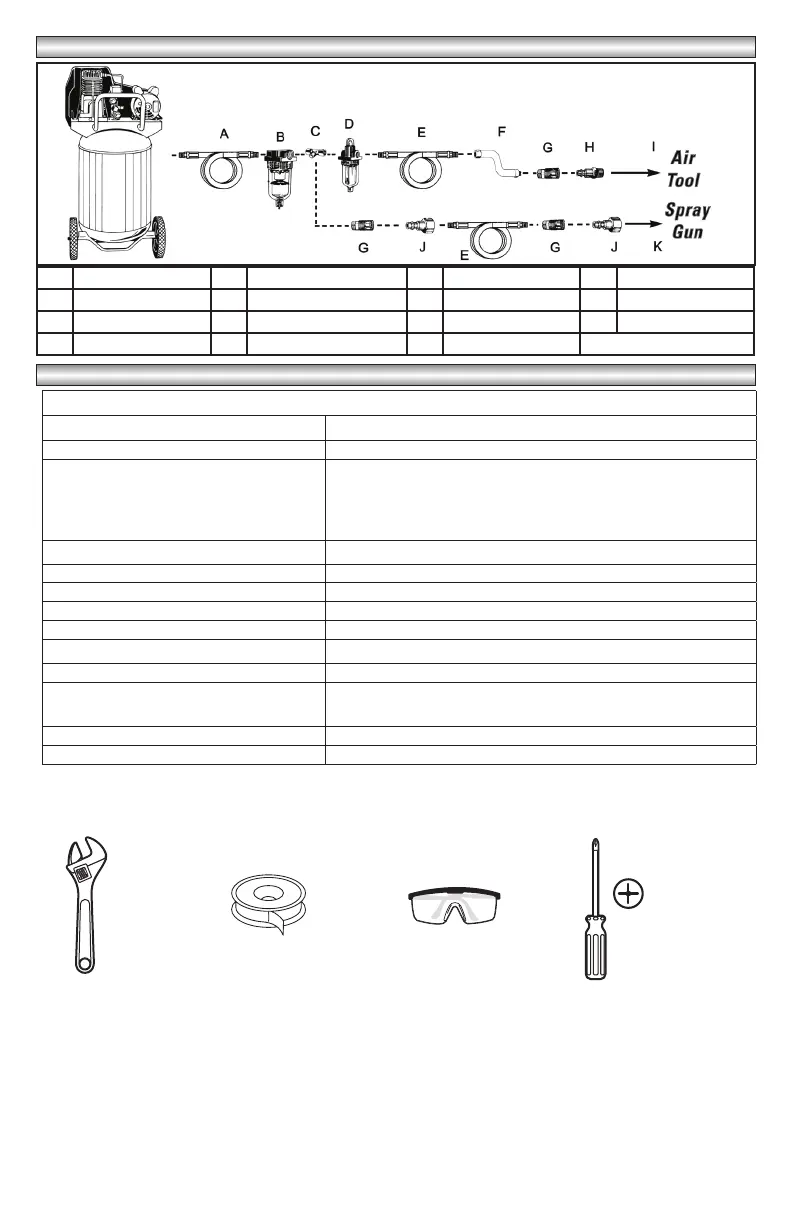

TYPICAL INSTALLATION
Key Description Key Description Key Description Key Description
A Air hose D In-line Oiler G Quick Coupler J Female Connector
B In-line Filter E Air Hose H Male Connector K Spray Gun
C Tee Fitting F Whip Hose I Air Tool
Figure 1
SPECIFICATIONS
Display LCD (Backlit)
Units of Measure Toggle between PSI, BAR, kPa, kg/cm2
Accuracy
+/- 1.0 PSI to 100 PSI
+/-1.5 PSI from 100 PSI to 130 PSI
+/-2.0 PSI from 130 PSI to 150 PSI
Measuring Range 0-150 PSI
Max Pressure 150 PSI
Hybrid Hose 15” with 360 degree swivel end
NPT inlet ¼”
Relief Valve Built in relief valve to deate over-inated tires
Batteries (2) 1.5 VDC Triple AAA
Battery Life Auto shut off after 60 seconds to extend battery life
Temperature Range
-20F to 120F*
*Delay may occur in cold temperatures
Use Use with or without pressure hose to read tire pressures
Nitrogen Compatible with nitrogen
PRE-INSTALLATION
TOOLS REQUIRED
Adjustable
Wrench
Thread
Seal Tape
Safety
Goggles
#0 Phillips
Head
Screwdriver
NOTE: Tools not shown to actual size
