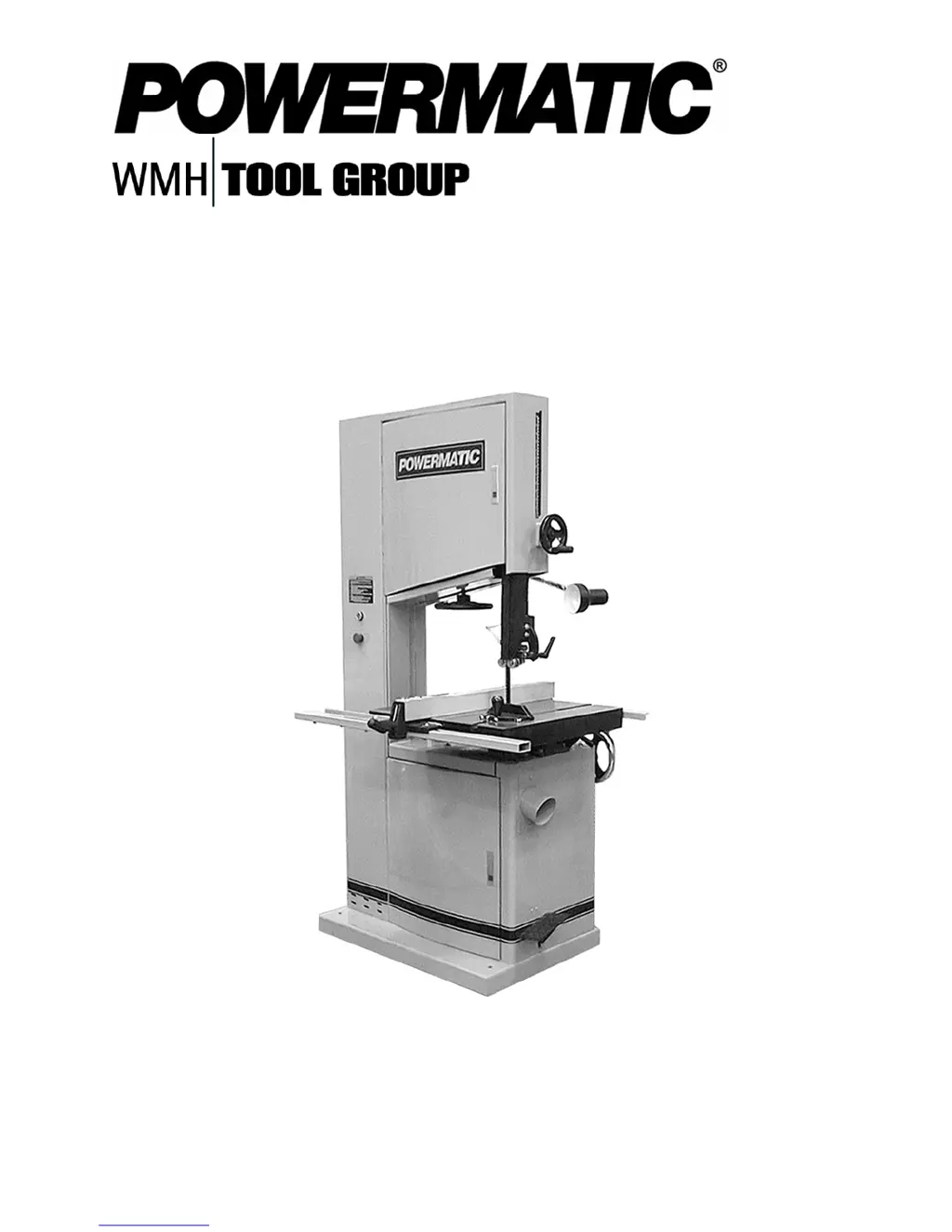

Operating Instructions and Parts Manual

20”and 24” Band Saws

Models 2013 and 2415

WMH TOOL GROUP

2420 Vantage Drive

Elgin, Illinois 60124 Part No. M-1791257

Ph.: 800-274-6848 Revision C 8/06

www.wmhtoolgroup.com Copyright © WMH Tool Group

Table of Contents

Questions and Answers:

S
Sharon JordanAug 18, 2025
Why is my Powermatic 2013 blade cutting inaccurately?
- S
  Shannon WilliamsAug 18, 2025
  If your Powermatic Saw blade isn't cutting straight, several factors could be at play. It might be due to worn or damaged blade teeth, requiring a blade replacement. The fence might not be parallel to the blade and needs proper alignment. Incorrect adjustment of the blade guides could also be the culprit, so ensure they're correctly adjusted. Other potential causes include using the wrong blade speed, applying too much force while feeding the workpiece, or having the upper blade guides positioned too far from the workpiece. The blade tension could also be too light and needs to be increased, or you might be using the incorrect saw blade for the cutting operation.
K
kevinpowellAug 20, 2025
How to stop Powermatic Saw table vibration?
- M
  Michael AlexanderAug 20, 2025
  Table vibration while sawing with your Powermatic Saw can stem from several causes. Check if the blade speed is correct by positioning the belt accordingly and ensuring an appropriate feed rate for the material. A slack drive belt can also cause vibration, so increase its tension or replace it if worn. The vibration could also be due to an incorrect saw blade pitch, so verify the blade selection. Sawdust or debris on the band wheel, or worn/damaged tires, can also cause vibration, so keep the band wheels clean and replace tires if needed. Lastly, worn support bearings can contribute to vibration, so consider replacing them.
E
Elizabeth SloanAug 23, 2025
What to do if Powermatic 2013 blade breaks prematurely?
- R
  Robin MartinAug 23, 2025
  Premature blade breakage in your Powermatic Saw can occur for several reasons. Excessive feed force could be the cause, so reduce the force applied. Using a blade with too coarse a pitch can also lead to breakage, so refer to the blade selection chart for a finer pitch blade. Additionally, a support bearing that isn't properly supporting the blade can cause it to break, so check its position and wear, adjusting or replacing it as needed. Overtensioning the blade can also lead to premature breakage, so reduce the tension accordingly.
H
hmatthewsAug 26, 2025
Why is surface finish on workpiece rough with Powermatic 2013 Saw?
- C
  cynthiarasmussenAug 26, 2025
  A rough surface finish on your workpiece when using the Powermatic Saw can be attributed to a couple of factors. First, the saw blade speed might be too low, so try increasing it. Second, the saw blade pitch might be too coarse, so consider switching to a blade with a finer pitch.
J
Jamie BrewerAug 28, 2025
Why does Powermatic 2013 blade have cracks on back edge?
- A
  Ann OsborneAug 28, 2025
  Cracks appearing on the back edge of your Powermatic Saw blade can be due to a few reasons. Feeding the workpiece too quickly can strain the blade, so reduce the feed speed. If the welding on the blade isn't perfectly aligned, you may need to eliminate the welded part and re-weld it properly, or get a new blade. A worn support bearing, caused by constant contact with the back of the blade, can also lead to cracks, so replace the support bearing and adjust the new bearing according to instructions.
M
Miguel ArmstrongAug 31, 2025
What causes premature dulling of Powermatic 2013 Saw teeth?
- R
  rossdavidAug 31, 2025
  Premature dulling of saw teeth on your Powermatic Saw can occur due to several reasons. The blade pitch might be too fine, so refer to the blade selection chart and use a blade with a coarser pitch. Insufficient feed pressure can also cause premature dulling, so increase the feed pressure. A cutting rate that's too low can contribute to this issue, so increase both the feed pressure and cutting rate. Additionally, using the incorrect blade for the material can lead to dulling, so re-examine the material and select the proper blade from the chart. Finally, a chipped tooth or a foreign object lodged in the cut can cause dulling, so stop the saw, remove any lodged particles, and replace the blade if damaged.
L
Lawrence Moore Jr.Sep 2, 2025
Why does Powermatic Saw blade form cracks at base of teeth?
- N
  Natalie RamosSep 2, 2025
  Cracks forming at the base of the teeth on your Powermatic Saw blade can be caused by several factors. The teeth might not be suitable for the job or are incorrectly set, requiring a replacement with a proper blade. The blade thickness might not be suitable for the band wheel diameter, so replace it with a blade of the proper thickness. If the blade was sharpened incorrectly and became overheated, sharpen it properly or replace it. Lastly, misaligned band wheels can cause this issue.
M
mitchellmeganSep 4, 2025
What to do if Powermatic Saw blade binds in the workpiece?
- J
  Jose WiseSep 4, 2025
  If the blade binds in the workpiece when using your Powermatic Saw, it could be due to incorrect blade tension or a damaged blade, so correct accordingly. Another reason could be that the blade is too wide for the desired radius, so select a narrower blade using the chart.
S
saundersbarrySep 7, 2025
Why does Powermatic Saw blade break close to weld?
- J
  Joseph FrancisSep 7, 2025
  If your Powermatic Saw blade breaks close to the weld, it could be due to the blade overheating during welding or cooling too rapidly afterward. In either case, have the blade annealed, or eliminate the brittle part and weld it correctly.
J
Jacqueline WillisSep 10, 2025
What to do if Powermatic 2013 Saw table tilt does not hold position?
- R
  Rachael WhiteSep 10, 2025
  If the table tilt on your Powermatic Saw doesn't hold its position under load, it could be because the locking lever isn't tight enough, so tighten it. Alternatively, the trunnion locking mechanism might be broken or worn, in which case you should replace it.

Powermatic 2013 Specifications

General

Motor	1-3/4 HP, 1 Ph, 115/230V (Prewired 115V)
Voltage	230 V
Amperage	15 A
Cutting Capacity (Height)	3-1/8 inch
Max Cut Depth at 90°	3-1/8 inch

Summary

Warranty and Service Information

Warranty Coverage and Claims

Details what defects are covered, who is covered, and warranty periods.

Service Procedures and Limitations

Instructions for obtaining service and warranty limitations.

Safety Instructions

General Safety Precautions

Essential safety rules for machine setup and operation.

Operational and Workplace Safety

Guidelines for safe use, environment, and tool handling.

Product Overview and Setup

Introduction, Specifications, and Features

Overview of the band saw, its specs, and key features.

Unpacking and Assembly Procedures

Steps for unpacking, setting up, and assembling the band saw.

Electrical Connections and Voltage Options

Guidance on connecting power, including voltage conversion.

Adjustments, Blades, and Operation

Table and Guide Adjustments

Procedures for adjusting table tilt and blade guides.

Blade Management and Selection

Instructions for installing, tensioning, tracking, and selecting blades.

Operating Procedures and Techniques

How to perform various cuts like ripping and crosscutting.

Troubleshooting and Parts

Troubleshooting Common Issues

Solutions for operational, mechanical, and electrical problems.

Parts Lists and Diagrams

Detailed lists and diagrams of machine components.

Electrical Diagrams

Single and Three Phase Wiring Schematics

Wiring diagrams for different voltage and phase configurations.
