6. Usage
6.1. Terminal Installation
6.1.1 Please ask the qualified engineers to install it.
6.1.2 Do not install it in an environment which is over GSM performance index, and please
pay attention to fix the antennas in an appropriate position with good signals.
6.1.3 Pay attention to make installation location preventing water and dust.
6.1.4 Find the 12 PIN harness and insert it into the corresponding holes of the products, and
connect the wires with the original car circuit showing below:

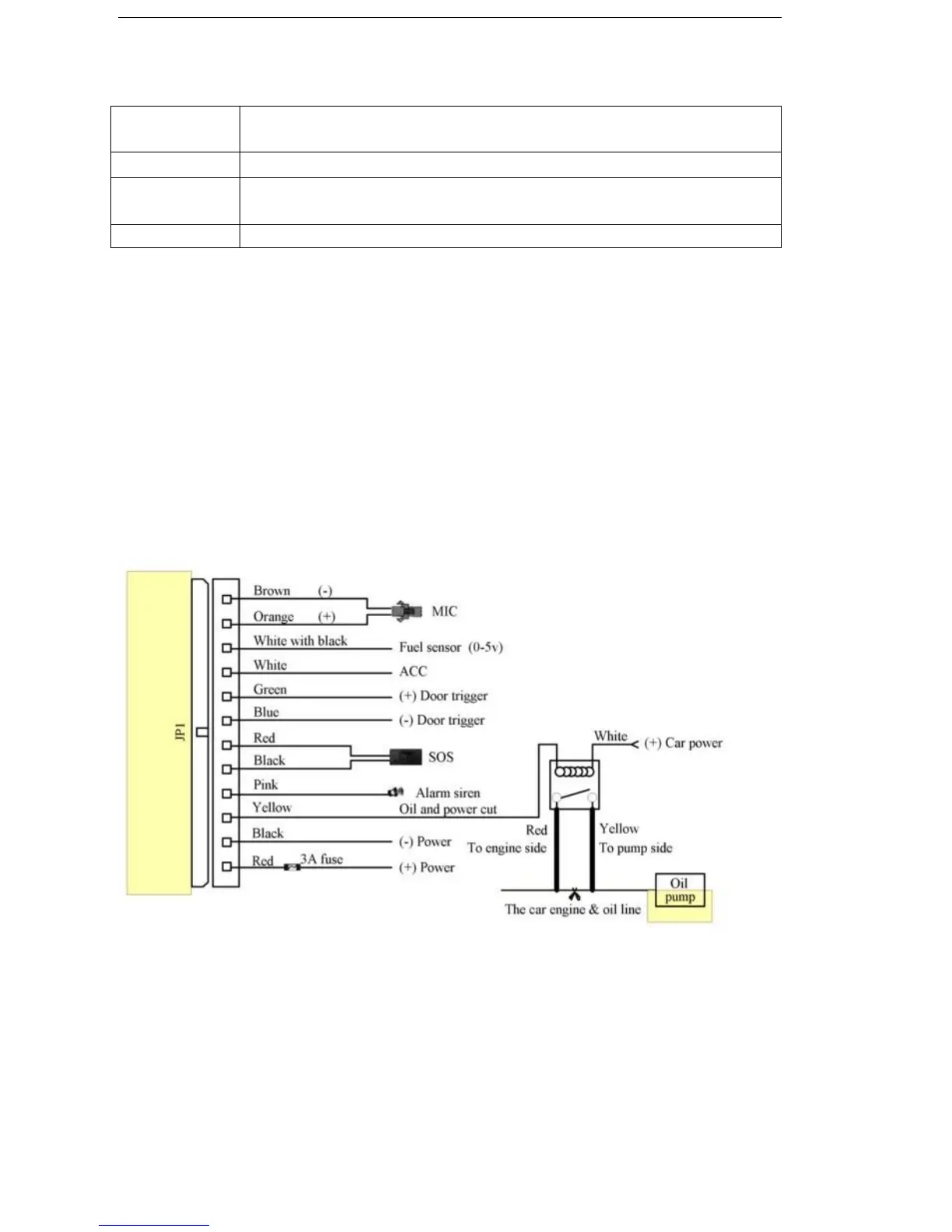

Wiring diagram
6.1.5 Note: The pink wire can be connected to the original car horn; it can also be connected
to the siren buying with the tracker.
6.1.6 Knowing about the type of the door trigger is positive or negative trigger. Please
connect the green wire to the door control circuit if it is positive, and connect blue wire if it is
negative.
