POW8002 EN
Copyright © 2015 VARO P a g e | 7 www.varo.com

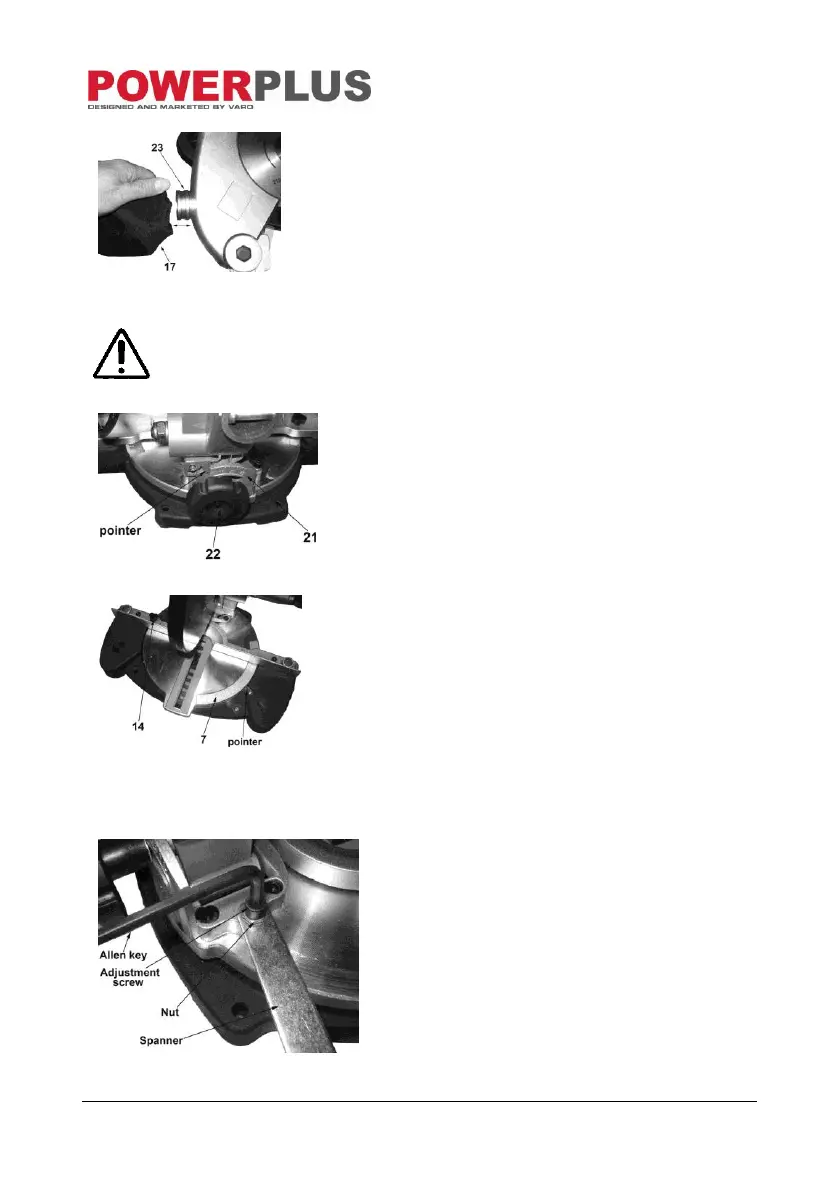

6.5 Fitting the dust bag
Fig. 4
Fit the dust bag (17) onto the dust outlet (23).
7 ADJUSTMENTS
note: always ensure that the saw is turned off and the plug is removed from
the mains supply before any repairs or maintenance are carried out.
7.1 Setting bevel angle
Fig 5
Loosen the lock knob for bevel angle (22) and tip
the saw upper arm left until the pointer point at the
desired angle on the bevel gauge (21), tighten the
lock knob (22).
7.2 Setting mitre angle
Fig 6
Loosen the lock knob for mitre angle (14) and turn
the saw table tip to left or right until the pointer point
at the desired angle on the angle gauge for mitre
angle (7), tighten the lock knob (14).
7.3 Calibrating the bevel angle gauge
The angle gauges are set at the factory, but we recommend that for precision work you
check and if necessary calibrating them as follows:
Fig. 7
 90°Bevel angle: Lock the upper arm in its
lowered position by the release knob (18), and
set bevel and mitre angles to 0°on the angle
gauges. Place a protractor at the side of the
saw blade and table, if the angle is not 90°bevel
angle. Achieve the right angle through turning
the adjustment screw (5) clockwise or counter-
clockwise by using Allen key (supplied) until the
angle is the correct angle, tighten the nut by
using the spanner (supplied). (see Fig. 7)
 45°Bevel angle: Lock the upper arm in its
lowered position by the release knob (18), set
bevel angle to 45°and mitre angle to 0°on the
angle gauges. Place a protractor at the side of
the saw blade and table , if the angle is not 45°
